MacDon R85 - 3.3 Opening the Driveshield; 3.3.1 Opening the Driveshield North American

INSTALLATION INSTRUCTIONS
3.3 Opening the Driveshield
The procedure for opening the driveshield varies depending on whether the header or mower conditioner was sold
in North America or not.
Refer to the relevant procedure:
• 3.3.1 O pening the Driveshield North American , page 11
• 3.3.2 O pening the Driveshield Export , page 12
3.3.1 Opening the Driveshield North American
Follow these steps to open the driveshield on North American mowers/headers:
1. Release rubber latches (A).
2. Lift shield (B).

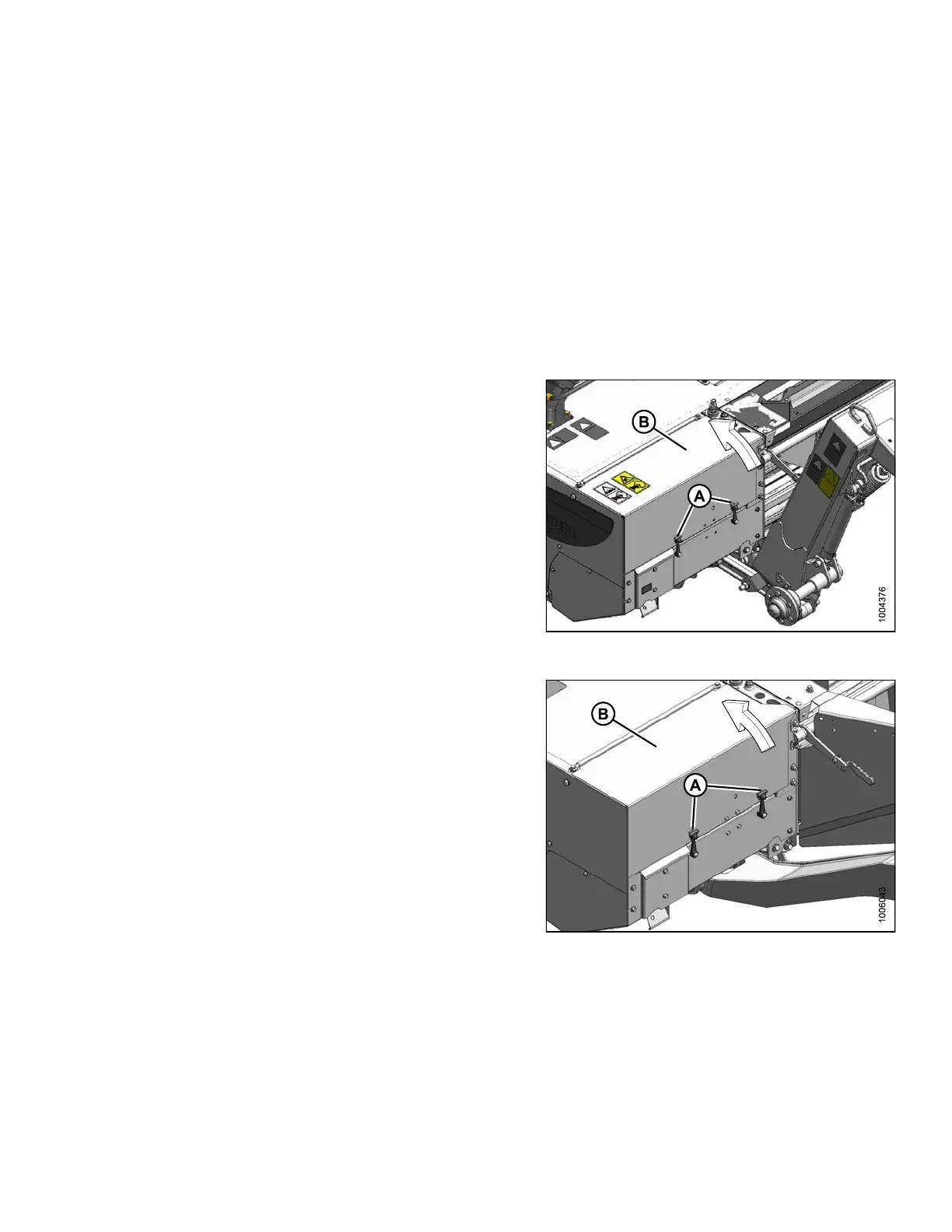

Figure
3.3: Drive sh i el d: 16-Ft. Pull Type
Figure 3.4: Driveshield: 16-Ft. SP Header
147974
