3.3.2 Opening
the Driveshield Export
Follow these steps to open the driveshield on export mowers/headers:
1. Release rubber latches (A).
2. Insert a screwdriver (or equivalent) through hole
in shield (B) and into the notch in latch ( C) and
disengage latch.
3. Open driveshield (D).

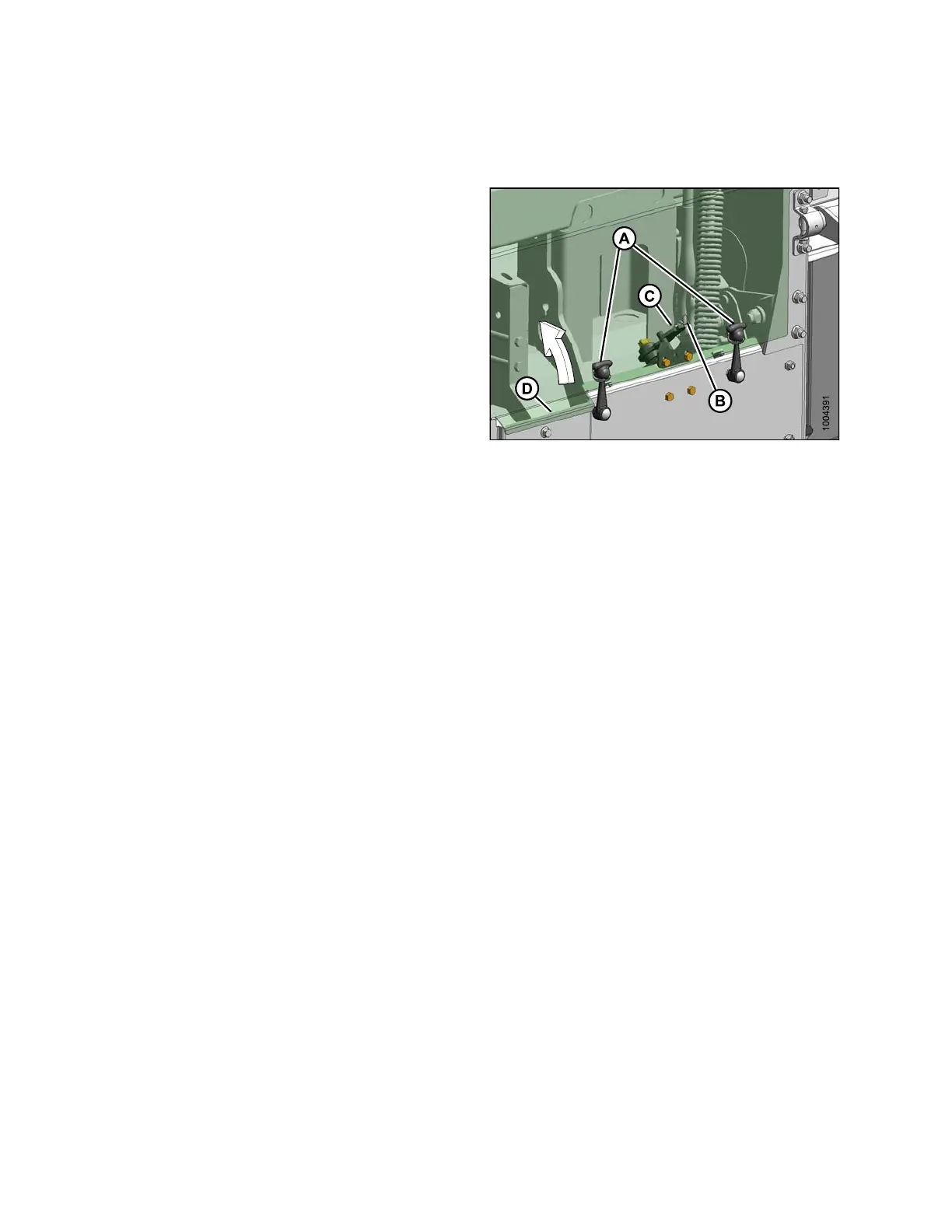

Figure 3.5: Driveshield
147974
