INSTALLATION INSTRU CTIONS
3.10 Closing the Driveshield
The procedure for closing the driveshield varies depending on whether the header or mower conditioner was sold
in North America or not.
Follow the relevant procedure:
• 3.10.1 Closing the Driveshield North American , page 26
• 3.10.2 Closing the Driveshield Export , page 27
3.10.1 Closing the Driveshield North American
Follow these steps to close the driveshield on North American mowers/headers:
1. Lower shield (B) so that pins at lower end of shield
engage holes in lower panel.
2. Engage rubber latches (A).

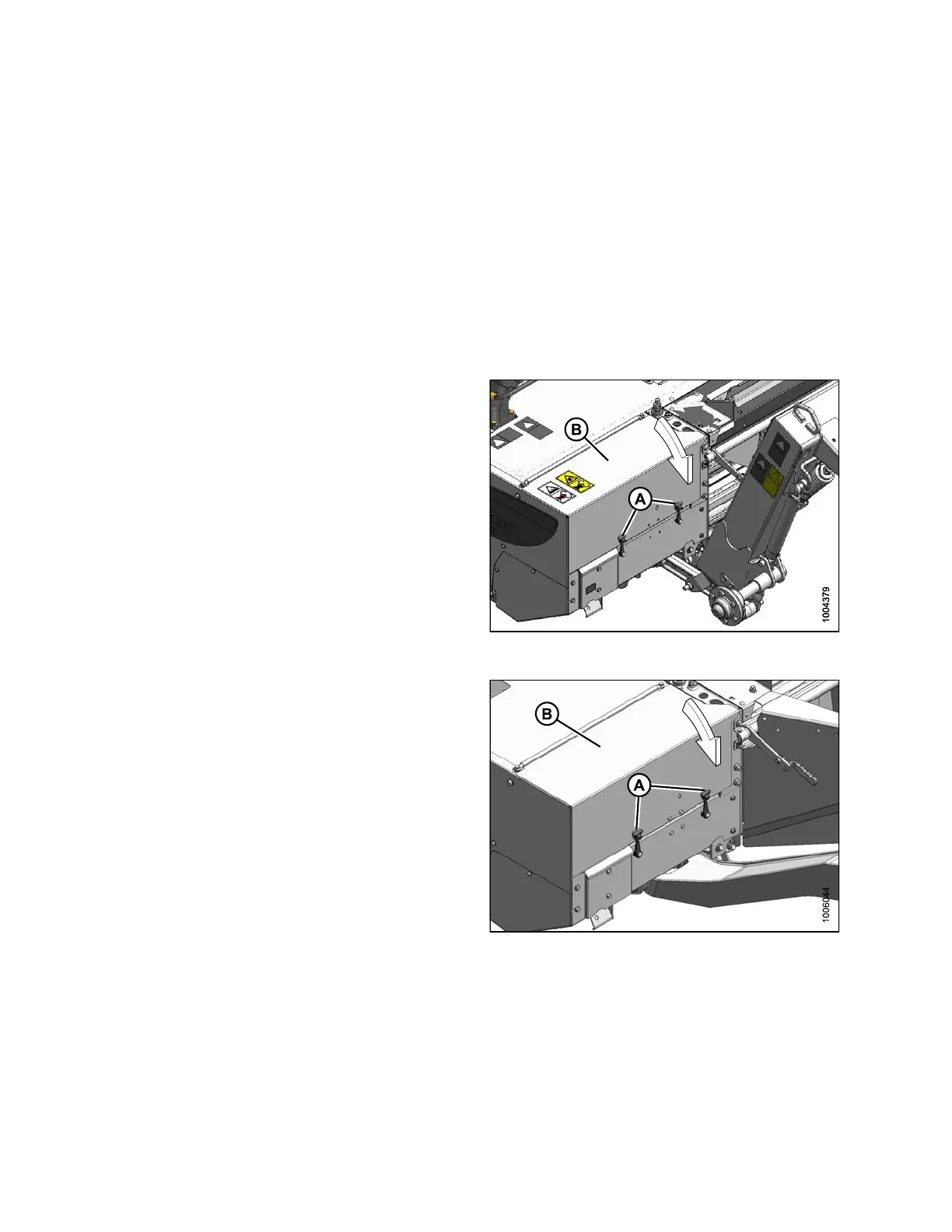

Figure
3.35: Driveshield: 16-ft Pull-Type
Figure 3.36: Driveshield: 16-Ft. SP Header
147974 26 Revision B
