INSTALLATION INSTRUCTIONS
3.12 Replacing Left-Hand Hazard Light
To rep la ce the left-hand hazard light and lam p bracket, follow these steps:
1. Place lamp assembly (C) on header/mower conditioner
and secure with four bolts (B).
NOTE:
Ensure amber reflector (D) faces the fron t of the
machine.
2. Connect wires to wiring harness (A).

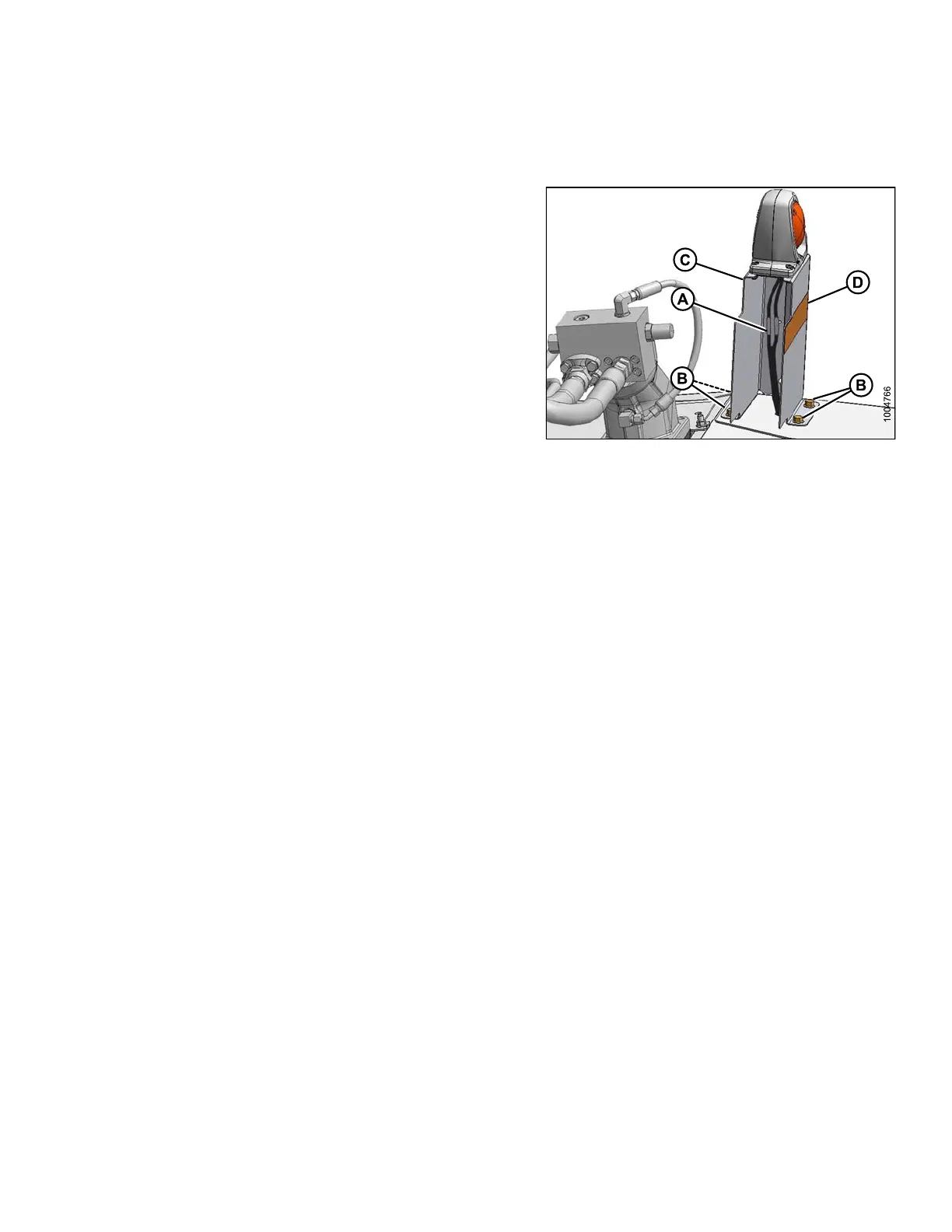

Figure 3.45: Hazard Light
147974 33 Revision B
