INSTALLATION INSTRU CTIONS
3.8 Reinstalling Header Drive M otor
To reinstall the header drive m otor, follow these steps:
IMPORTANT:
Do NOT lift mot
or by the hydraulic lines. The motor
weighs appro
ximately 68 kg (150 lb.). Use a sling or
chain and hoi
st to lift.
1. Reinstall motor (C) onto the gearbox and secure with
four bolts (B). Torque to 140 N ·m (103 ft·lbf).
2. Install the access panel (A) and secure with bolts.

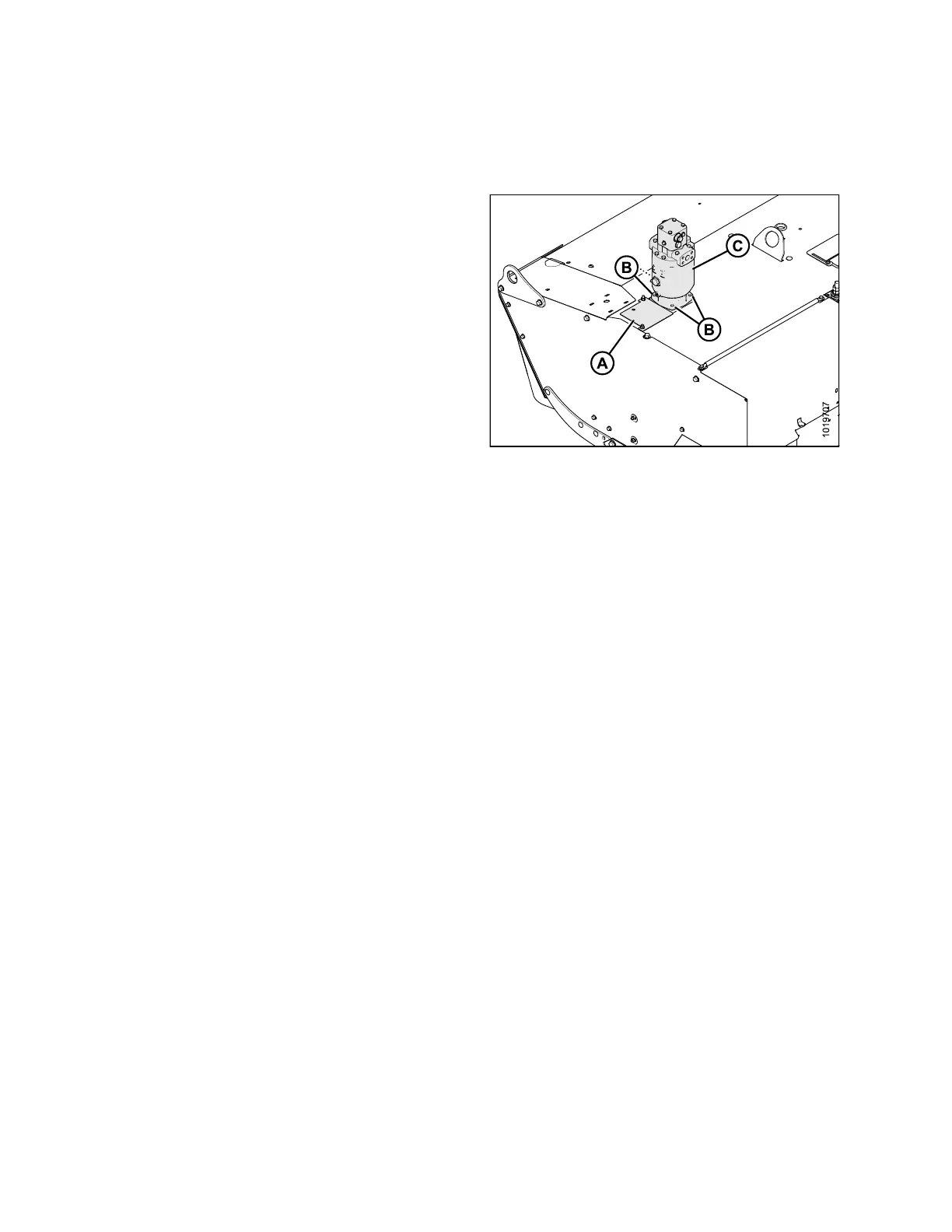

Figure 3.33: Motor
147974
24
Revision B
