INSTALLATION INSTRUCTIONS
3.10.2 Closin
g the Driveshield Export
Follow these steps to close the driveshield on export mowers/headers:
1. Lower the shield (C) so that pins at lower end of
shield engage holes in the lower panel, and latch (B)
re-engages the driveshield.
2. Engage rubber latches (A).

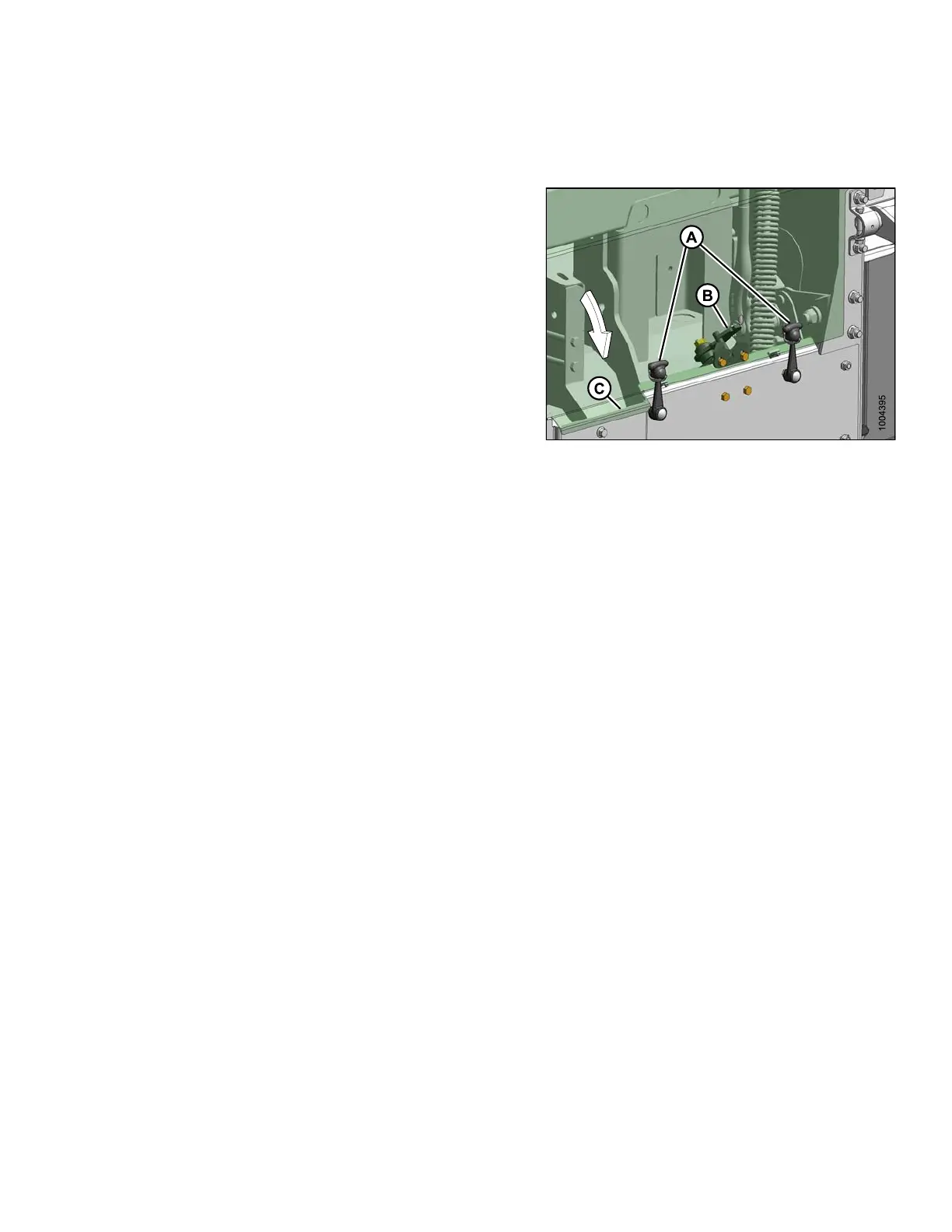

Figure 3.37: Driveshield
147974
27
Revision B
