3.11 Closing Cutterbar Doors
The procedure for closing cutterbar doors varies depending on whether the header/mower conditioner was sold
in North America or not.
Refer to the relevant procedure:
• 3.11.1 Closing the Cutterbar Doors: North American Header or Mower Conditioner, page 28
• 3.11.2 Closing the Cutterbar Doors: Export Header or Mower Conditioner, page 30
3.11.1 Closing the Cutterbar D oors: North American Header or Mower
Conditioner
Follow these steps to close the cutterbar doors on a North American header or mower conditioner:
CAUTION
To avoid injury, keep hands and fingers away from corners of doors when closing.
1. Holding the door open, lift the safety door latch (A)
to disengage its lock, then move the door down to its
closed position over the cutterbar.

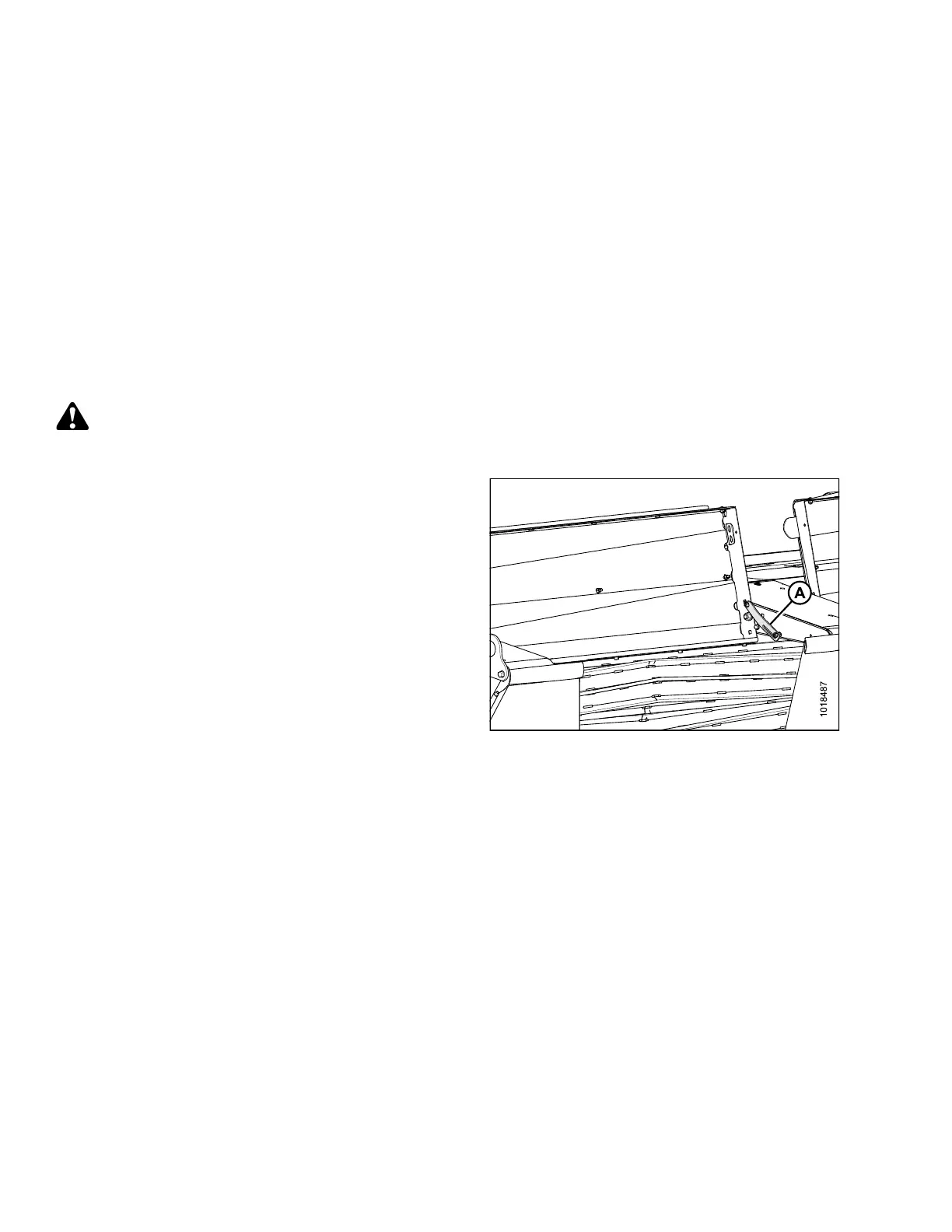

Figure 3.38: Cutterbar Doors
147974 28 Revision B
