INSTALLATION INSTRUCTIONS
2. Hook curtain latches (A).
NOTE:
Ensure that cu
rtains hang properly and
completely en
close cutterbar area.

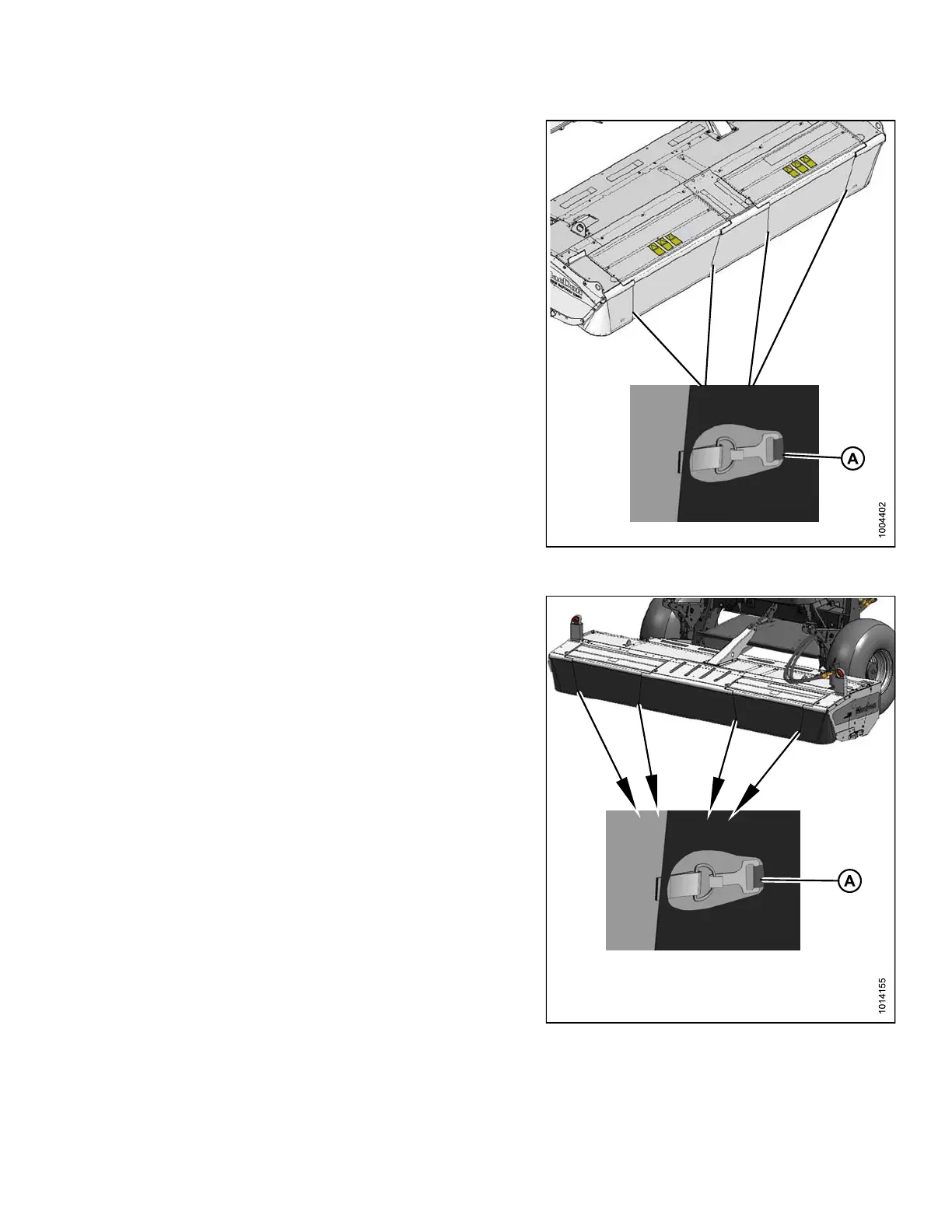

Figure 3
.39: Curtain Latches: 16-Ft. PT
Fig
ure 3.40: Curtain Latches: 16-Ft. SP
147974 29 Revision B
