INSTALLATION INSTRUCTIONS
3.5 Removing Left-Hand Endshield and Frame Channel
The new gearbox will not fi t t hrough the access panel in the top cover of the header/mower conditioner, so the
top cover must be lifted or removed. In order to do that, the left-hand endshield and frame channel must be
removed. To remove them, follow t hese s teps:
NOTE:
This procedure assumes that the left-hand cutterbar door is still open from the previous procedure.
1. Remove the b
olts (A) and nuts attaching the
hook (B) and
the divider support (C) to the left-hand
endshield (
D). Retain hook, divider support, and
hardware fo
r reinstallation.
2. Remove the
bolts (E) and nuts attaching the left-hand
endshield
(D) to the header/mower conditioner, and
then remov
e the endshield. Retain the endshield and
hardware f
or reinstallation.

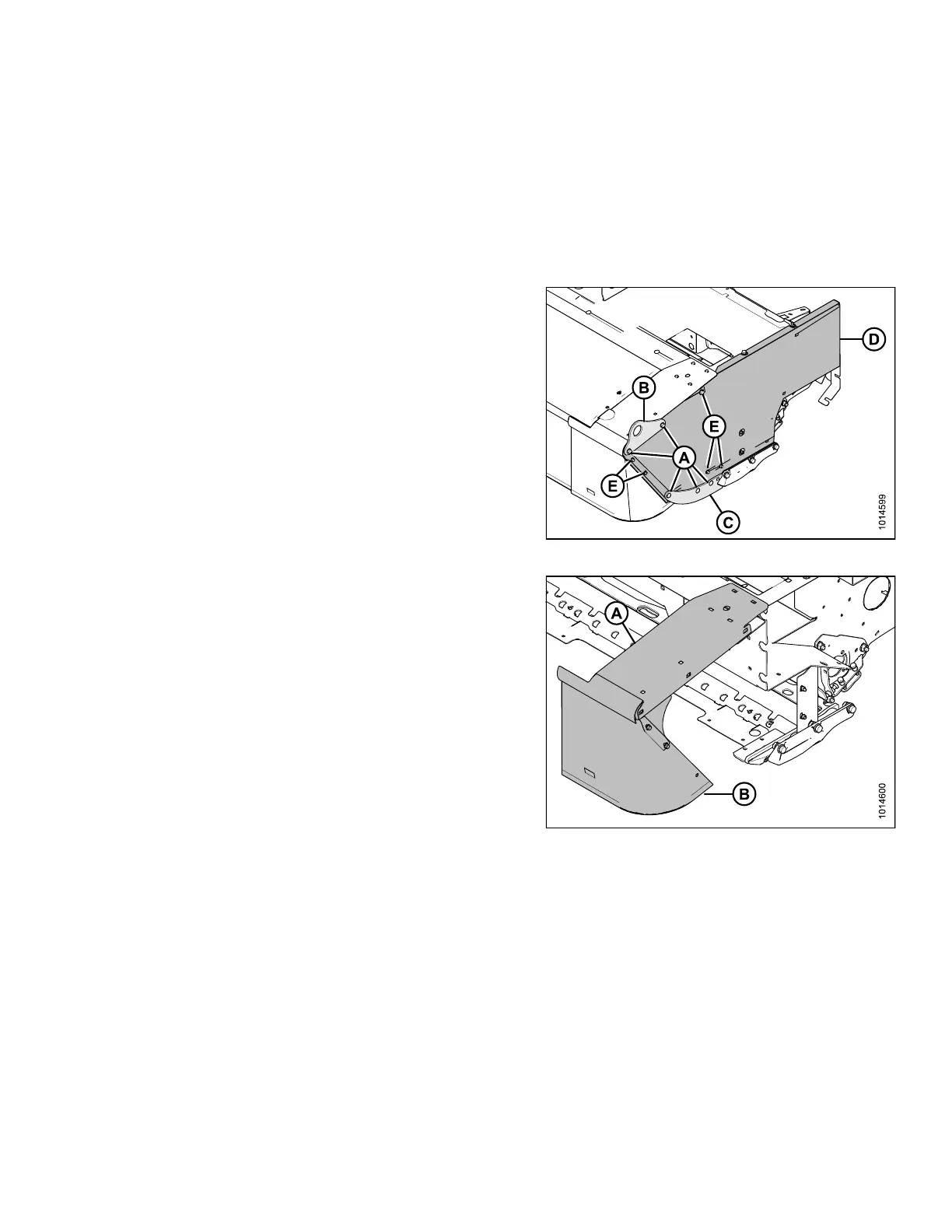

Figure 3.14: LH Endshield
3. Remove t
he left-hand frame channel (A) and corner
shield
(B). Re tain for reinsta lla tion.
NOTE:
Some parts removed from illustratio n for clarity.
Figure 3.15: LH Front Corner of Header/Mower
Conditioner
