INSTALLATION INSTRU CTIONS
9. Using a suitable lifting device, lift the gearbox, gearbox
plate, and pulley out of the header.
IMPORTANT:
Use an appropriate lifting device. The gearbox weighs
approximately 68 kg (150 lb.).

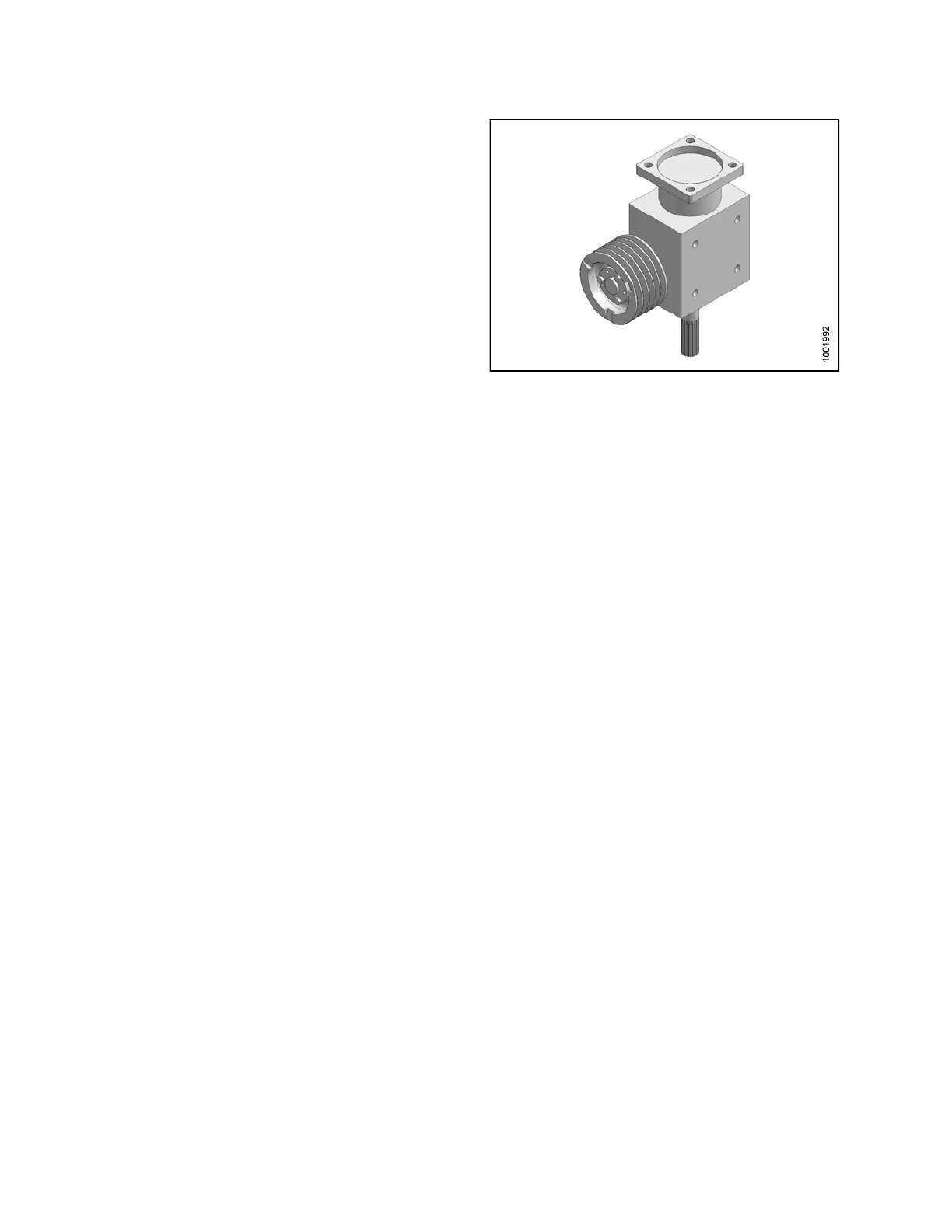

Figure 3.13: Gearbox and Pulley
147974 16 Revision B
