INSTALLATION INSTRU CTIONS
4. Unhook the curtain latches (A) on the left side of the
header/mower conditioner.

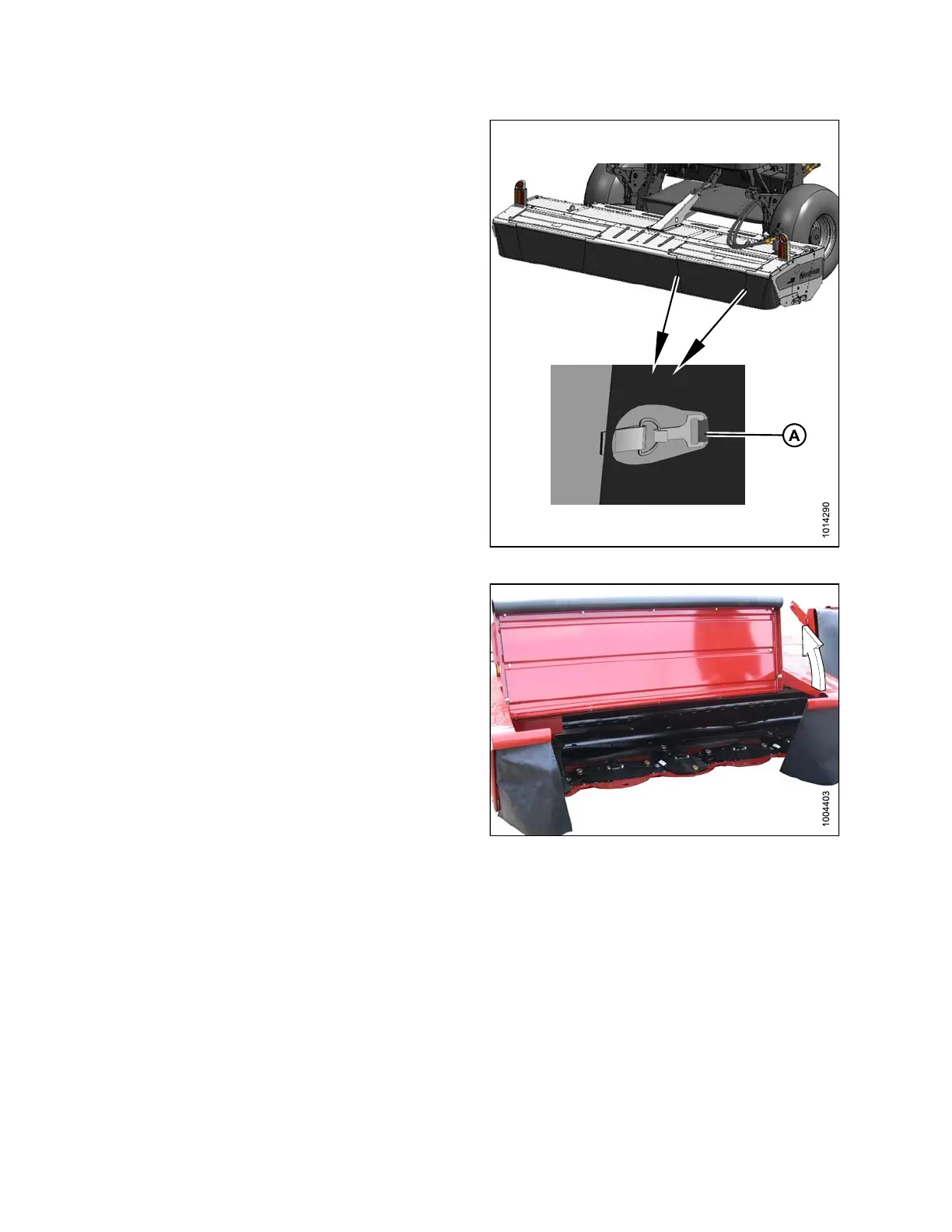

Figure 3.
9: Curtain Latches
5. North A merican headers/mower conditioners: Lift
the front of the left-hand cutterbar door to the open
position.
Figur
e 3.10: Cutterbar Doors Open
