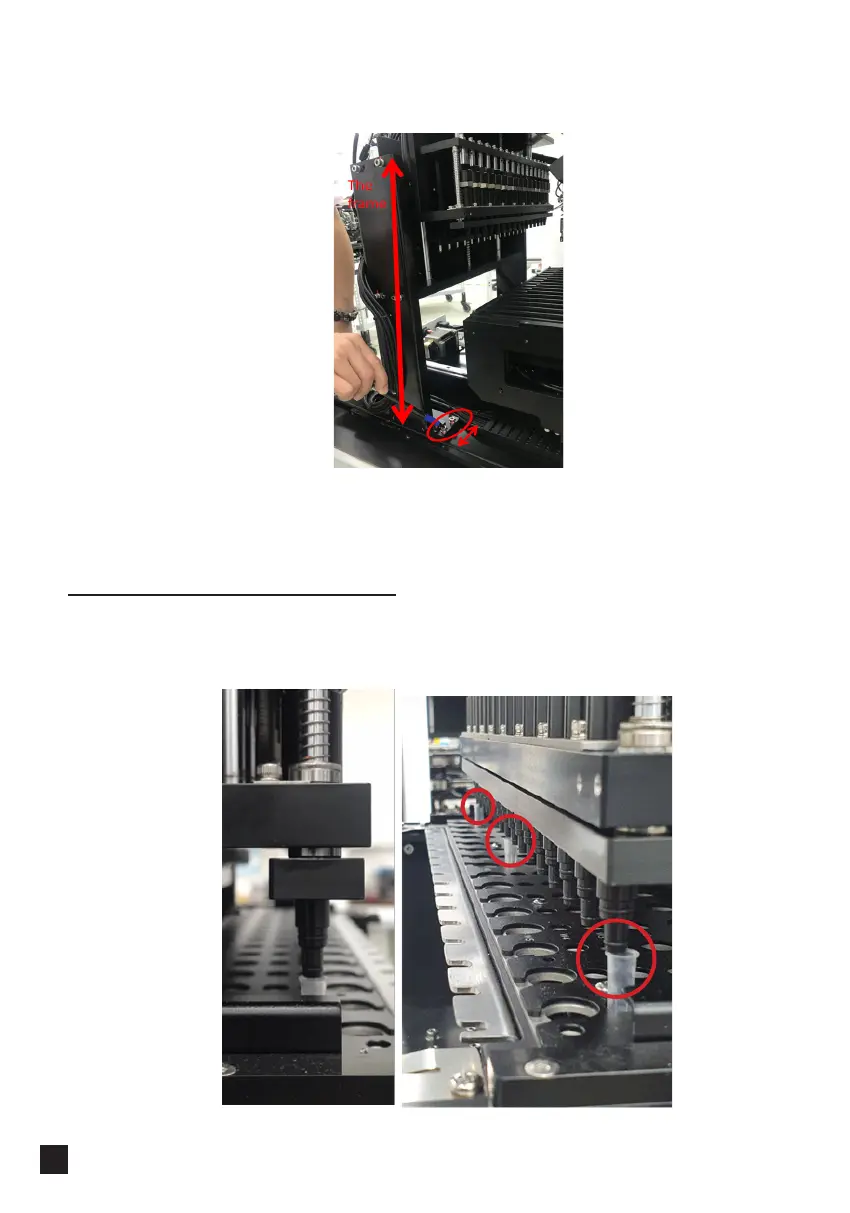

4. After the screws are loosened Y-axis frame can be moved sideways.
5. Put the tips into the T-rack and adjust the position of the frame until the pistons
align with the tips.
6. Tighten the screws back.
For the axis tilted forward or backward:
All the pistons
align on one
line
Piston is misaligned
backwards
Piston is centered
Piston is misaligned
forwards
1. Put cartridge rack and tips inside and lower the pistons until they almost touch the
tips. All 16 pistons should touch the tips in a straight line.
