MagCore® Plus II
Underlined value is the actual temperature and should be very close to what your
thermometer shows.
If heating module does not heat or does not reach 60 degrees in 5-7 minutes or 90
degrees in 10 minutes do the following:

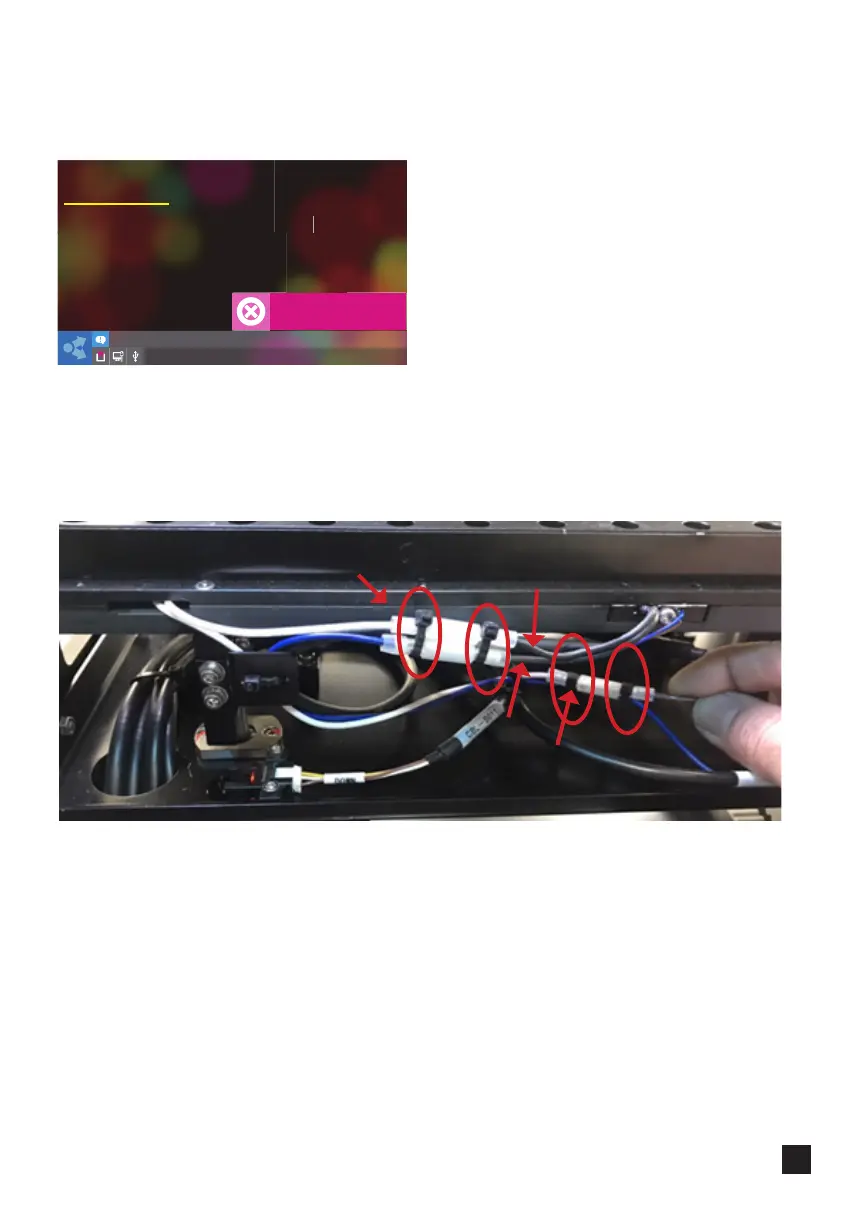

1. Measure heating module resistance:
Cut the cable ties and disconnect the wires.
Heater Test
44 ºC / 111 ºF
MM/DD/YYYY HH:MM:SS
6WDJH+HDWLQJ
7'▜⹧䅾〉
7'▜⹧㵩ⵤ
7'6HW㵩ⵤ
7'3:0巶₸
Stop
White 1
White 2
Black 2
Black 1
T.D1 - Actual temperature
T.D2 - The temperature the heater should reach (preset)
T.D4 - Relay Power
