61
MagCore® Plus II

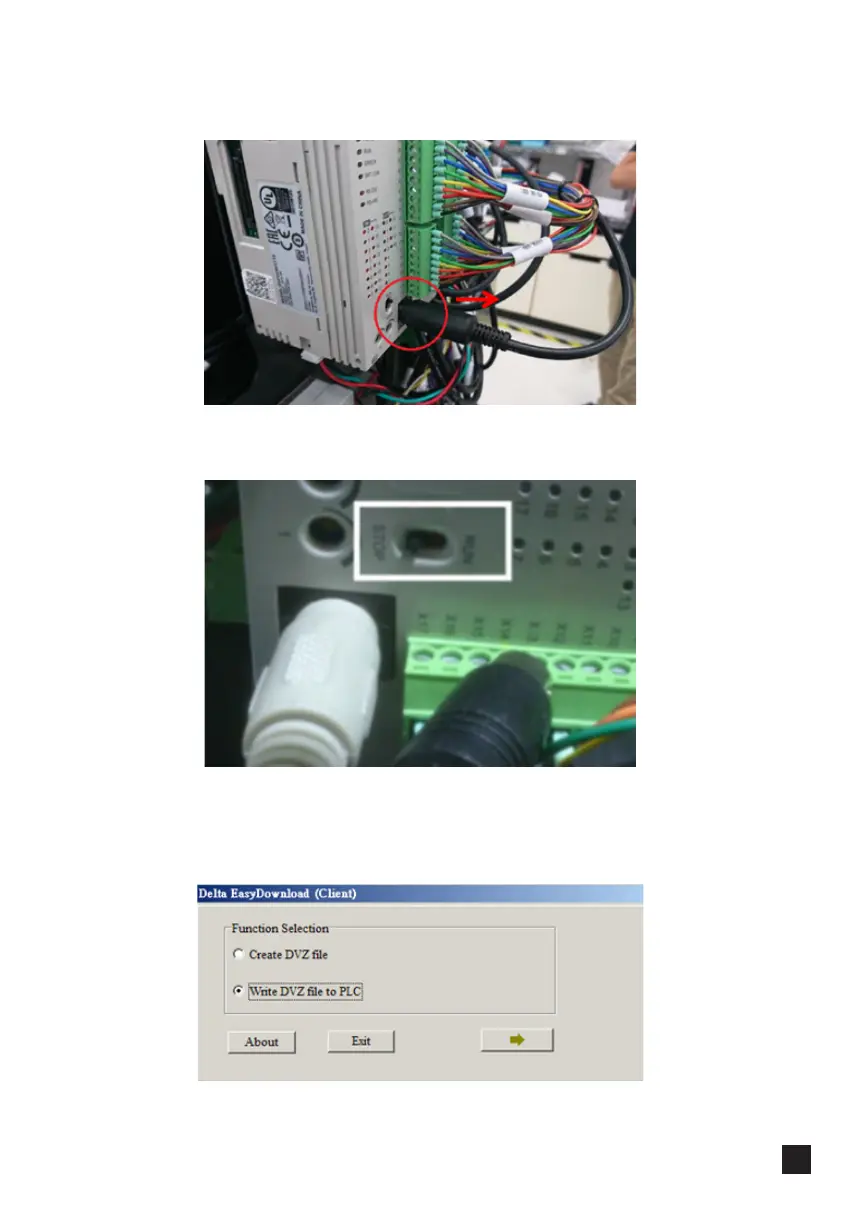

1. Turn off the power, find the PLC and unplug the black interface cable.
2. Turn the switch on PLC (marked with white frame) from "Run" to "Stop", plug the
PLC-RS232 connection cable and connect with computer, then turn on the power.
3. After machine power is turned on, open "EasyClient", then select "write DVZ into
PLC" and click Next ( → ).
To Next Page
