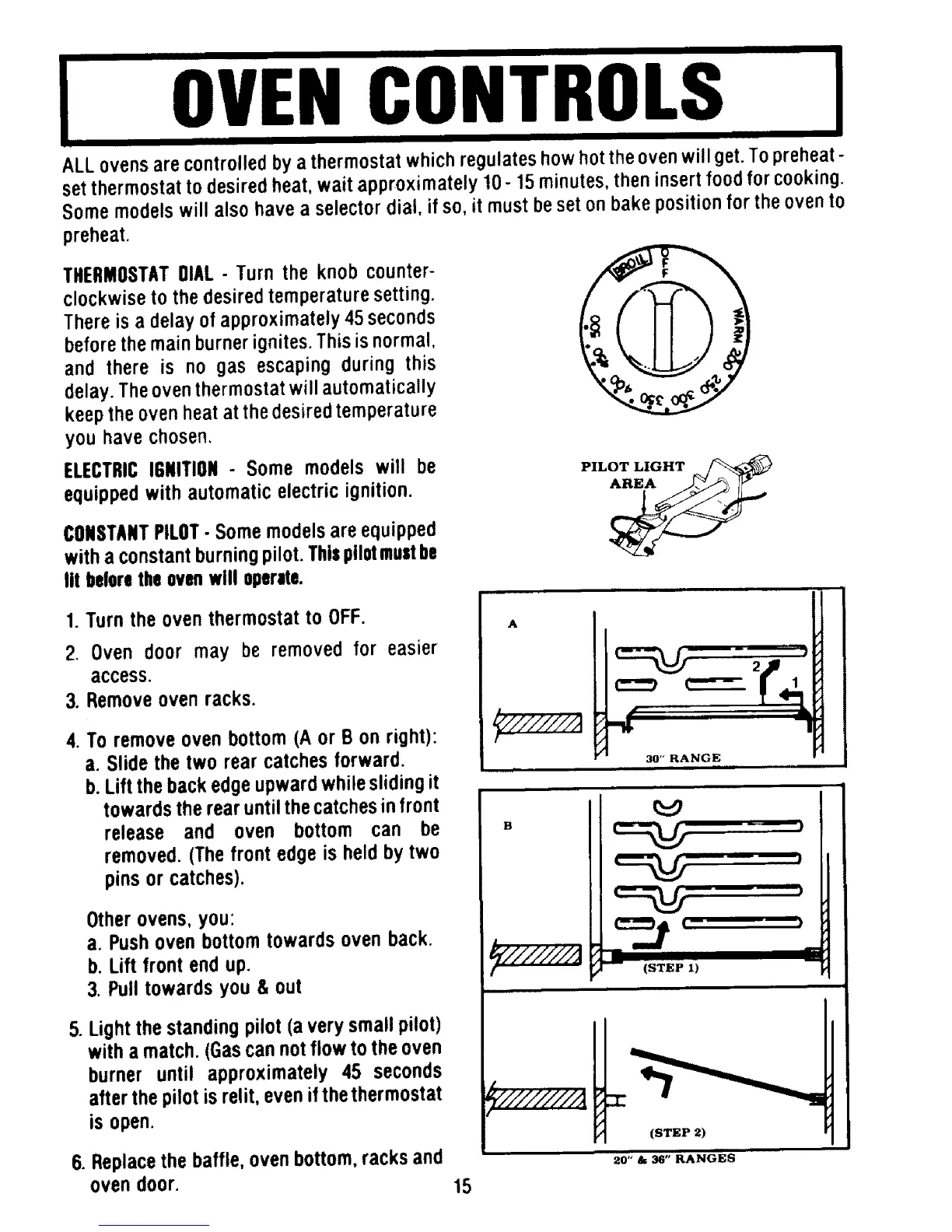

[ OVENCONTROLS
IIIIl! I111111111111111111111 IIIIIIIIIIII IIII1[
ALL ovens are controlled by a thermostat which regulates how hot theoven will get. Topreheat-
set thermostat to desired heat, wait approximately 10- 15 minutes, then insert food for cooking.
Some models will also have a selector dial, if so, it must be set on bake position for the oven to
preheat.
THERMOSTATOIAL- Turn the knob counter- /_-"_
clockwise to the desired temperature setting.
There is a delay of approximately 45 seconds
before the main burner ignites. This isnormal,
and there is no gas escaping during this
delay. Theoven thermostat will automatically "_"P6^__ __ _._
keep the oven heat at the desired temperature
you have chosen.
ELECTRICIGNITION - Some models will be
equipped with automatic electric ignition.
CONSTANTPILOT- Some models are equipped
with a constant burning pilot. Thispilotmusthe
Ill helorothe ovenwill operate.
PILOT LIGHT ,__
1. Turn the oven thermostat to OFF.
2. Oven door may be removed for easier
access.
3. Remove oven racks.
4. To removeovenbottom(A or B on right):
a. Slidethetwo rear catchesforward.
b.Lift the backedgeupwardwhileslidingit
towardstherearuntilthecatchesinfront
release and oven bottom can be
removed.(Thefront edgeis heldbytwo
pins or catches).
Other ovens, you:
a. Push oven bottom towards oven back.
b. Lift front end up.
3. Pull towards you & out
5. Light thestandingpilot(a very smallpilot)
witha match.(Gascannotflow tothe oven
burner until approximately 45 seconds
afterthepilotis relit,evenifthethermostat
is open.
6.Replacethe baffle,ovenbottom,racksand
ovendoor.
_/!/////A
l
30" RANGE
_///////A
f
"-'I
IIIIIIIIIIIIIIIIIIII11
-- (STEP 1)
15
(STEP 2)
20" & 36" RANGES
