10

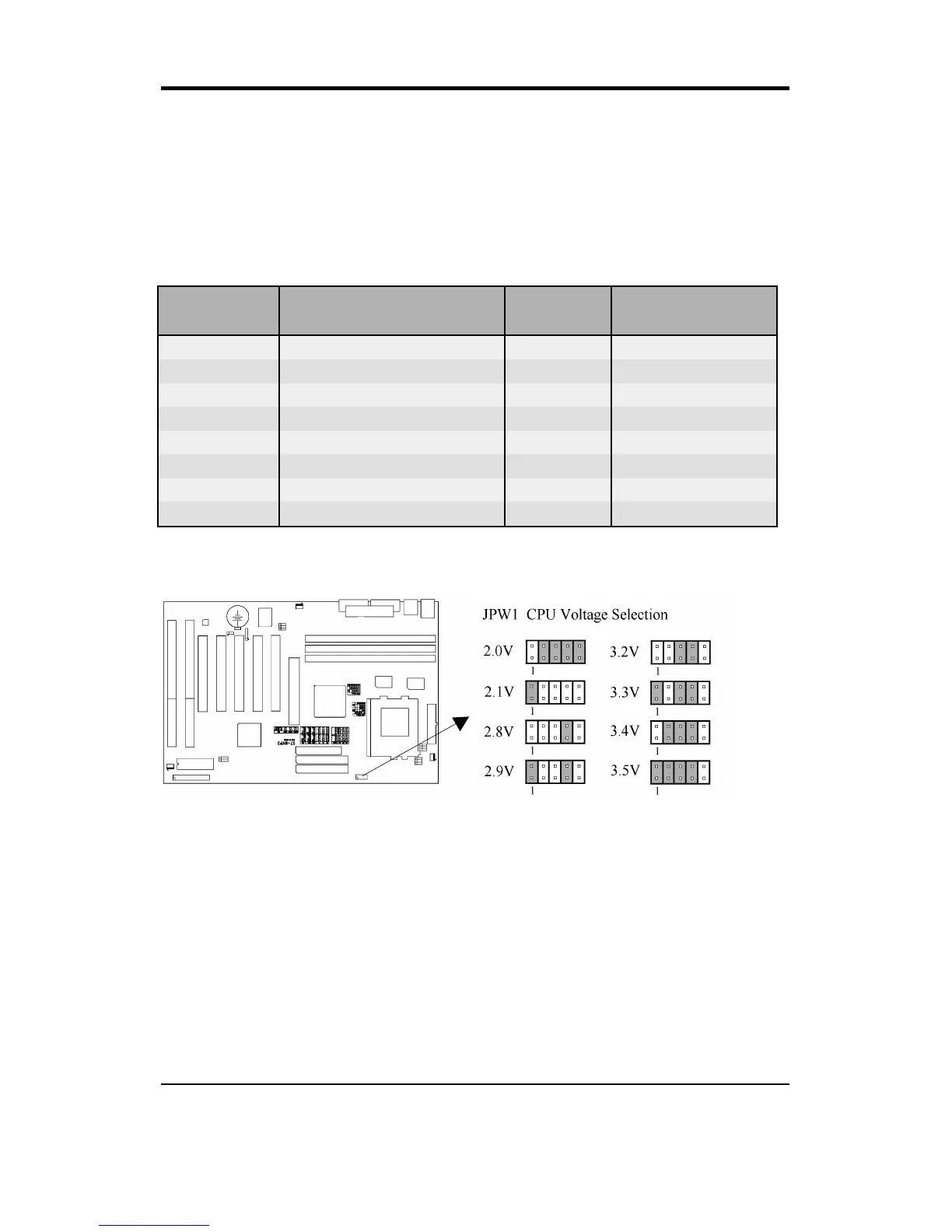

2.1.3 CPU Voltage Selection
¡]
Red Jumper Caps
¡^
Before the use of this motherboard, make sure all jumpers are set correctly. The
wrong setting might damage the CPU and the motherboard.
CPU Voltage may vary. Check with CPU manufacturer for it's correct voltage.
CPU
Brand
CPU TYPE CPU
Voltage
JPW1
AMD K6-266 2.0V
3-4, 5-6, 7-8, 9-10
AMD K6-3D 300 2.1~2.25V
1-2
Intel/Cyrix P55C-MMX/6x86L 2.8V
7-8
AMD/Cyrix K6-166/200, 6x86MX 2.9V
1-2, 7-8
AMD K6-233 3.2V
5-6, 7-8
Intel P54C 3.3V
1-2, 5-6, 7-8
Intel P54C 3.4V
3-4, 5-6, 7-8
AMD/Cyrix K5/6x86 3.5V
1-2, 3-4, 5-6, 7-8
2.8V is the default setting (this setting is for Intel P55C CPUs)
