Magic-Pro MP-VIP-4A - Keyboard Connector; Serial Port; Printer Port

18

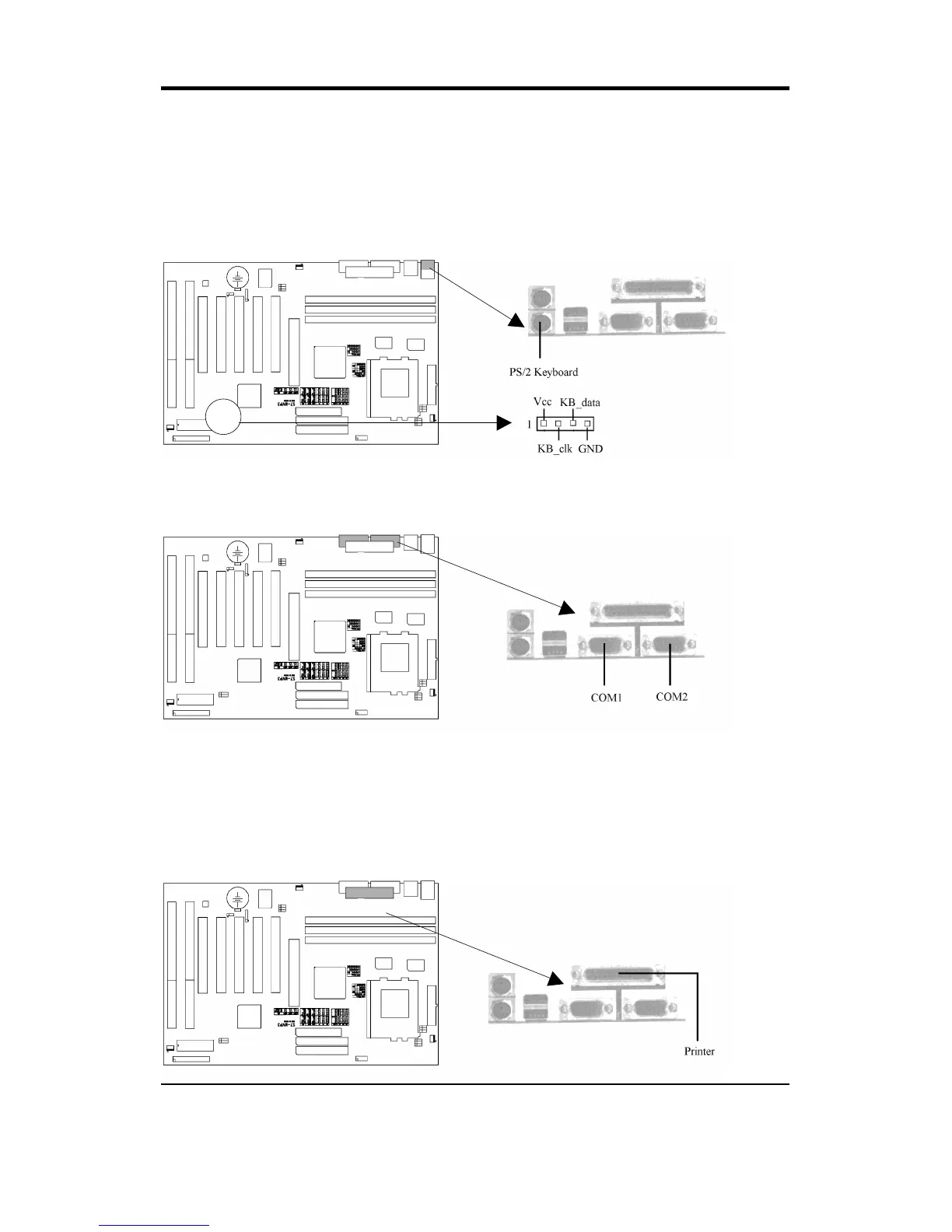

2.4.7 Keyboard Connector (6-pin Mini-Din KB & 4-pin J1)
This connection is for a standard keyboard using a PS/2 plug. You may use a
Din to Mini-Din adapter on standard AT keyboards.
2.4.8 Serial Port (Two 9-pin D-type COM)
2.4.9 Printer Port (25-pin D-type LPT1)
You can enable the parallel port and choose the IRQ through the “Onboard
Parallel Port” setting in Integrated Peripherals of the COMS SETUP
UTILITY.
