17

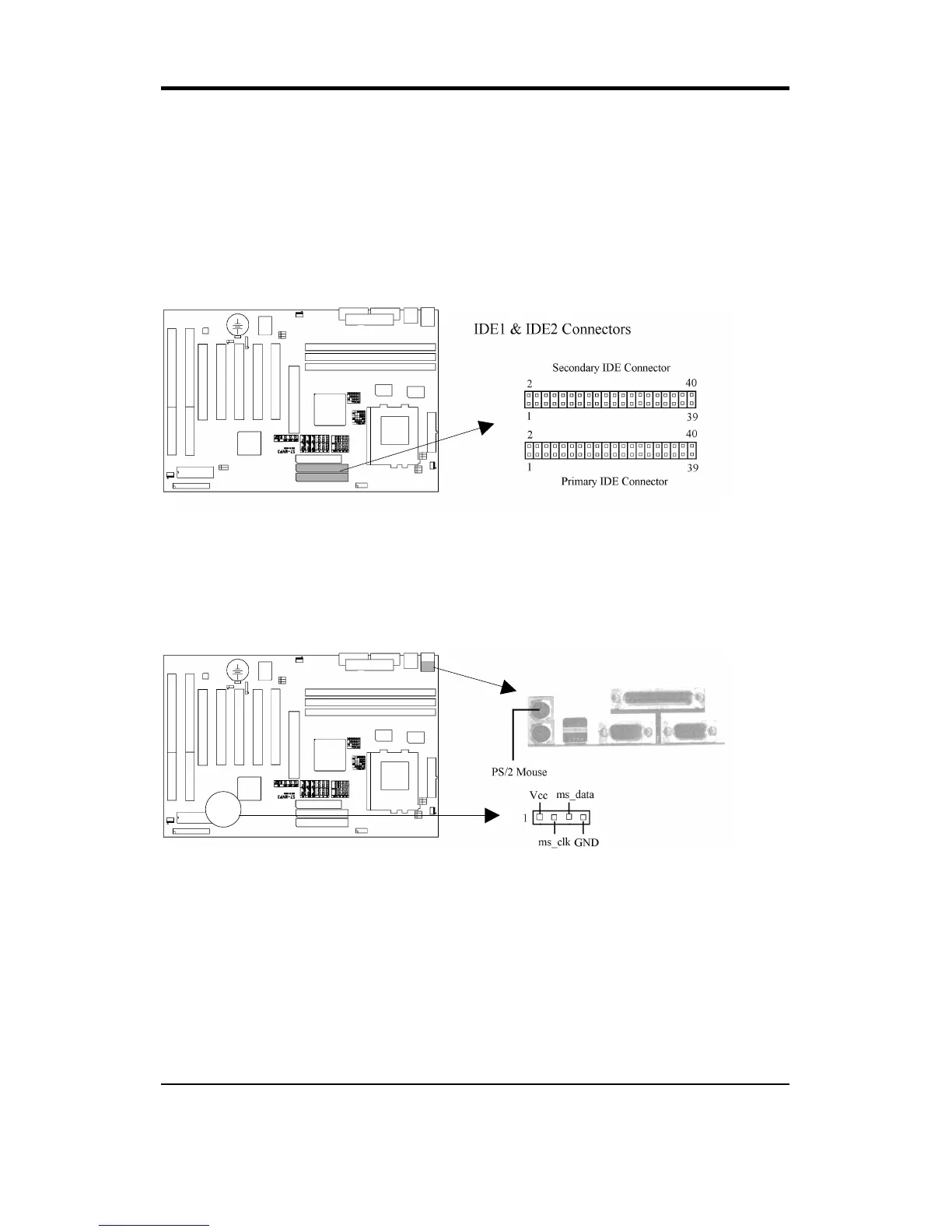

2.4.5 Primary/Secondary IDE Connector (Two 40-pin IDE)
These connectors support the provided IDE hard disk ribbon cable. Connect
your first IDE hard disk to master mode of the primary channel. If you have
second IDE device to install in your system, connect it as slave mode on the
same channel, and the third and fourth device can be connected on secondary
channel as master and slave mode respectively.
2.4.6 PS/2 Mouse Port (6-pin Mini-Din PS2 & 4-pin J2)
The system will direct IRQ12 to the PS/2 mouse.
