Magic-Pro MP-VIP-4A - Panel Connectors

49
Page 1

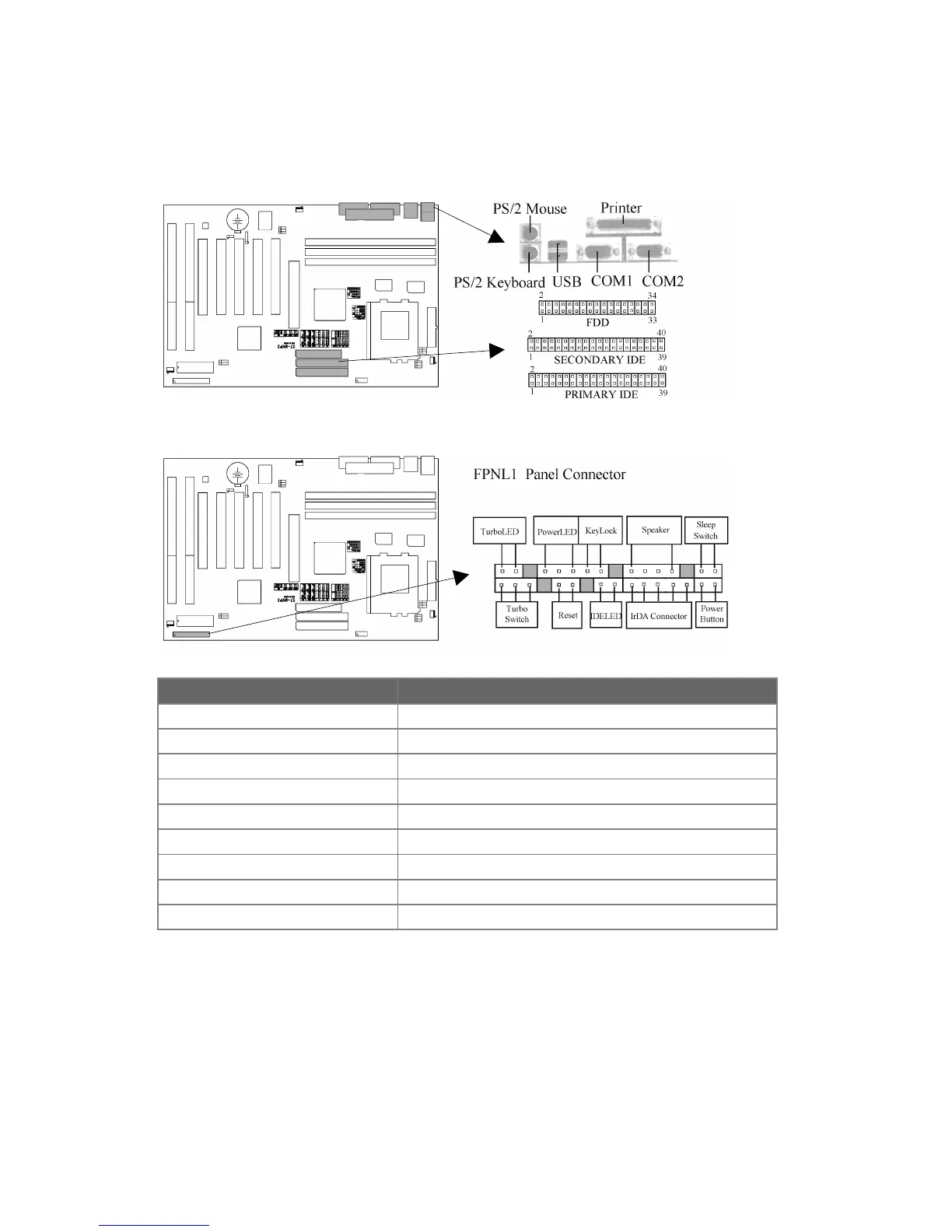

Panel Connectors
FPNL1 Connector Function
TBLED Turbo LED
KEYLOCK Power LED and Keylock Switch
SPK Speaker
SMI Sleep Switch
TRSW Turbo Switch
RST Reset Switch
IDE HDD LED
IR IrDA Connector
PR ATX Power Switch Connector
