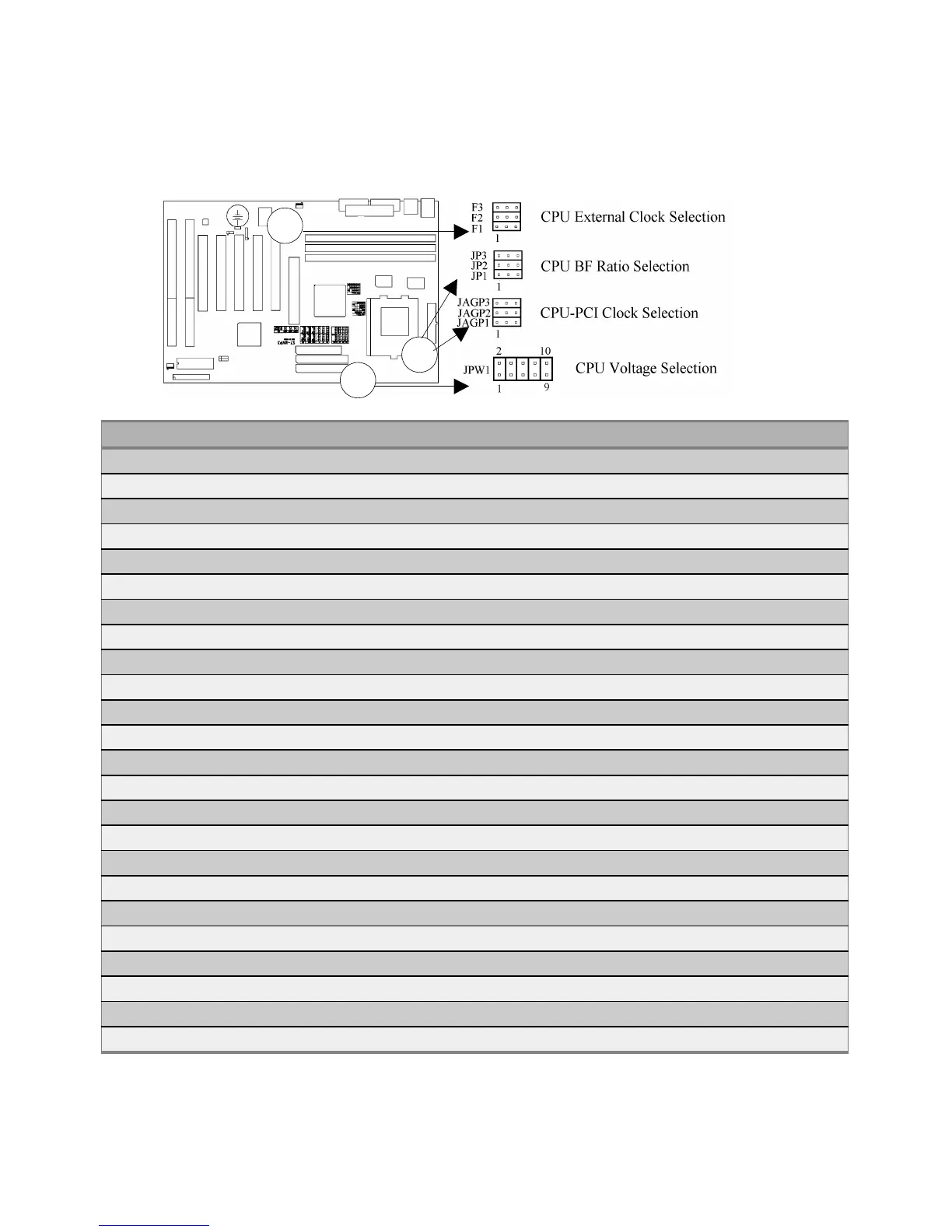

Quick Installation Chart
For your convenience, this chart lists all the CPUs supported by MP-VIP-4A and
their correspond jumper setting.
CPU TYPE JPW1 JP3 JP2 JP1 F3 F2 F1 JAGP3 JAGP2
Pentium 100
3-4, 5-6, 7-8 1-2 1-2 1-2 1-2 1-2 1-2 2-3 2-3
Pentium 120
3-4, 5-6, 7-8 1-2 2-3 1-2 1-2 1-2 2-3 2-3 2-3
Pentium 133
3-4, 5-6, 7-8 1-2 2-3 1-2 1-2 1-2 1-2 2-3 2-3
Pentium 166
3-4, 5-6, 7-8 2-3 2-3 1-2 1-2 1-2 1-2 2-3 2-3
Pentium 200
3-4, 5-6, 7-8 2-3 1-2 1-2 1-2 1-2 1-2 2-3 2-3
Pentium 166-MMX
7-8 2-3 2-3 1-2 1-2 1-2 1-2 2-3 2-3
Pentium 200-MMX
7-8 2-3 1-2 1-2 1-2 1-2 1-2 2-3 2-3
Pentium 233-MMX
7-8 1-2 1-2 1-2 1-2 1-2 1-2 2-3 2-3
AMD K5-PR100
1-2,3-4,5-6,7-8 1-2 1-2 1-2 1-2 1-2 1-2 2-3 2-3
AMD K5-PR133
1-2,3-4,5-6,7-8 1-2 2-3 1-2 1-2 1-2 1-2 2-3 2-3
AMD K5-PR166
1-2,3-4,5-6,7-8 2-3 2-3 1-2 1-2 1-2 1-2 2-3 2-3
AMD K6/166
1-2, 7-8 2-3 2-3 1-2 1-2 1-2 1-2 2-3 2-3
AMD K6/200
1-2, 7-8 2-3 1-2 1-2 1-2 1-2 1-2 2-3 2-3
AMD K6/233
1-2, 7-8 1-2 1-2 1-2 1-2 1-2 1-2 2-3 2-3
AMD K6/3D-300
1-2 2-3 1-2 1-2 2-3 1-2 1-2 1-2 1-2
Cyrix 6x86L-PR166+
7-8 1-2 2-3 1-2 1-2 1-2 1-2 2-3 2-3
Cyrix 6x86L-PR200+
7-8 1-2 2-3 1-2 1-2 2-3 1-2 2-3 2-3
Cyrix 6x86MX-PR166 (66)
1-2, 7-8 1-2 2-3 1-2 1-2 1-2 1-2 2-3 2-3
Cyrix 6x86MX-PR166 (60)
1-2, 7-8 2-3 2-3 1-2 1-2 1-2 2-3 2-3 2-3
Cyrix 6x86MX-PR200 (75)
1-2, 7-8 1-2 2-3 1-2 1-2 2-3 1-2 2-3 2-3
Cyrix 6x86MX-PR200 (66)
1-2, 7-8 2-3 2-3 1-2 1-2 1-2 1-2 2-3 2-3
Cyrix 6x86MX-PR233 (75)
1-2, 7-8 2-3 2-3 1-2 1-2 2-3 1-2 2-3 2-3
Cyrix 6x86MX-PR233 (83)
1-2, 7-8 1-2 2-3 1-2 1-2 2-3 2-3 1-2 1-2
Cyrix 6x86MII-PR300 (66)
1-2,7-8 2-3 2-3 2-3 1-2 1-2 1-2 2-3 2-3
