Magic-Pro MP-VIP-4A - CPU BF Ratio Selection; CPU External Clock Selection

11

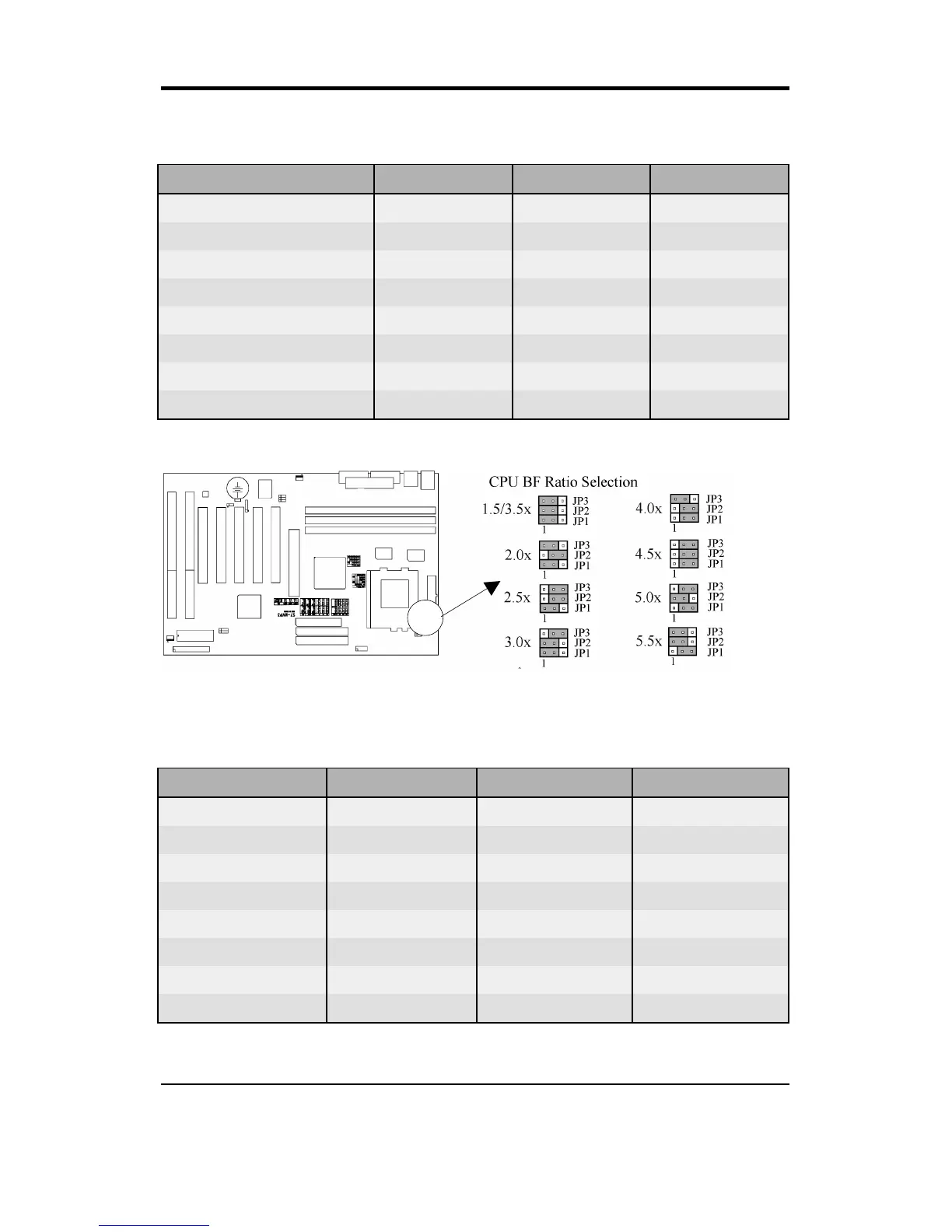

2.1.4 CPU BF Ratio Selection (Green Jumper Caps)
BUS/CORE JP3 JP2 JP1
1.5x/3.5x
1-2 1-2 1-2
2.0x
1-2 2-3 1-2
2.5x
2-3 2-3 1-2
3.0x
2-3 1-2 1-2
4.0x
1-2 2-3 2-3
4.5x
2-3 2-3 2-3
5.0x
2-3 1-2 2-3
5.5x
1-2 1-2 2-3
3.0x is the default setting¡]this setting is for Intel P55C-200 CPU¡^
2.1.5 CPU External Clock Selection (Green Jumper Caps)
Clock F3 F2 F1
60MHz 1-2 1-2 2-3
66MHz 1-2 1-2 1-2
68.5MHz 2-3 2-3 2-3
75MHz 1-2 2-3 1-2
83MHz 1-2 2-3 2-3
90MHz 2-3 1-2 2-3
100MHz 2-3 1-2 1-2
112MHz 2-3 2-3 1-2
66MHz is the default setting¡]this setting is for Intel P55C-200 CPU¡^
