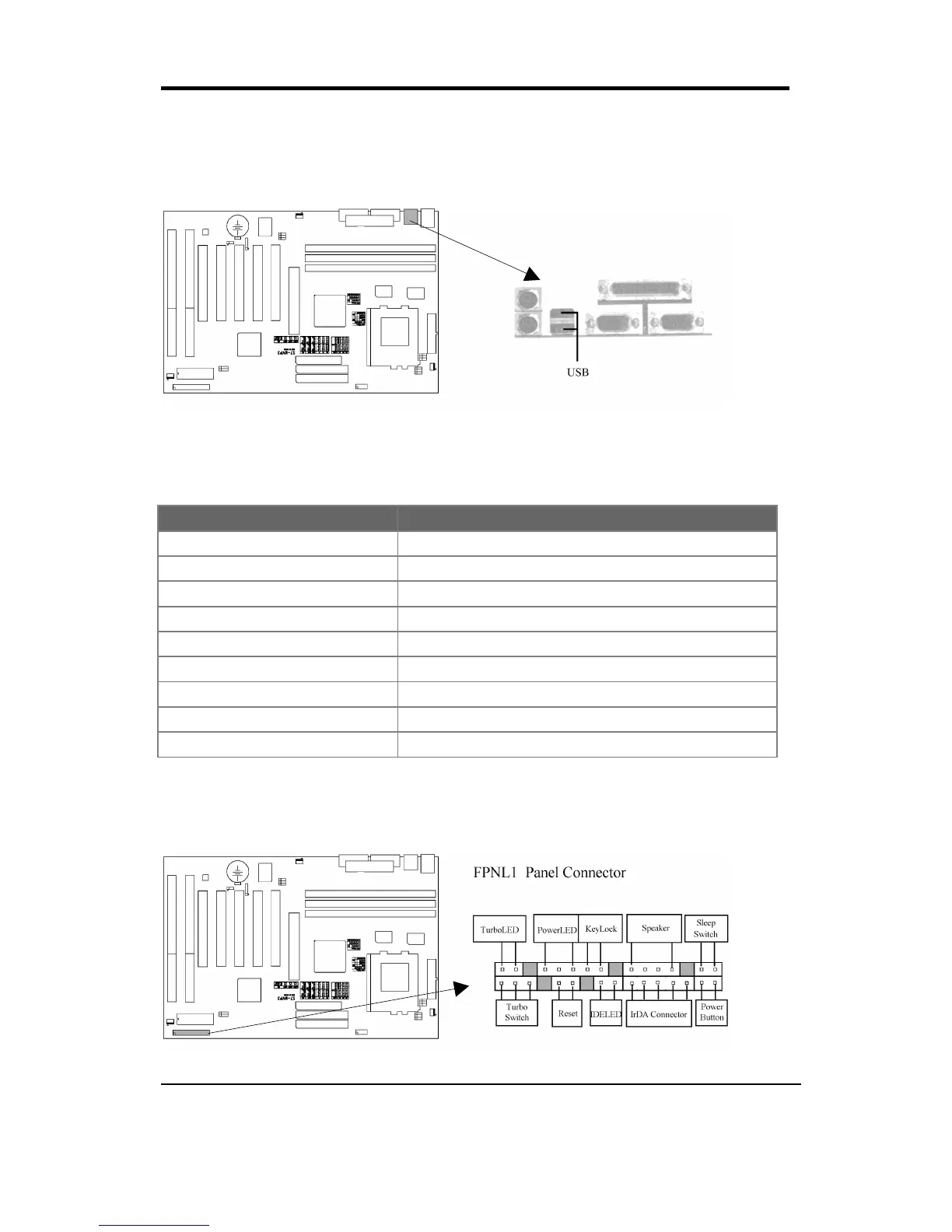

2.4.10 USB Connectors (Two 4-pin USB)

You can attach USB devices to the USB connector.

2.4.11 Panel Connection (32-pin FPNL1)

FPNL1 Connector Function

TBLED Turbo LED

KEYLOCK Power LED and Keylock Switch

SPK Speaker

SMI Sleep Switch

TRSW Turbo Switch

RST Reset Switch

IDE HDD LED

IR IrDA Connector

PR ATX Power Switch Connector

WARNING: To avoid the system from failing, turn off the power before

connecting any devices to the system.
