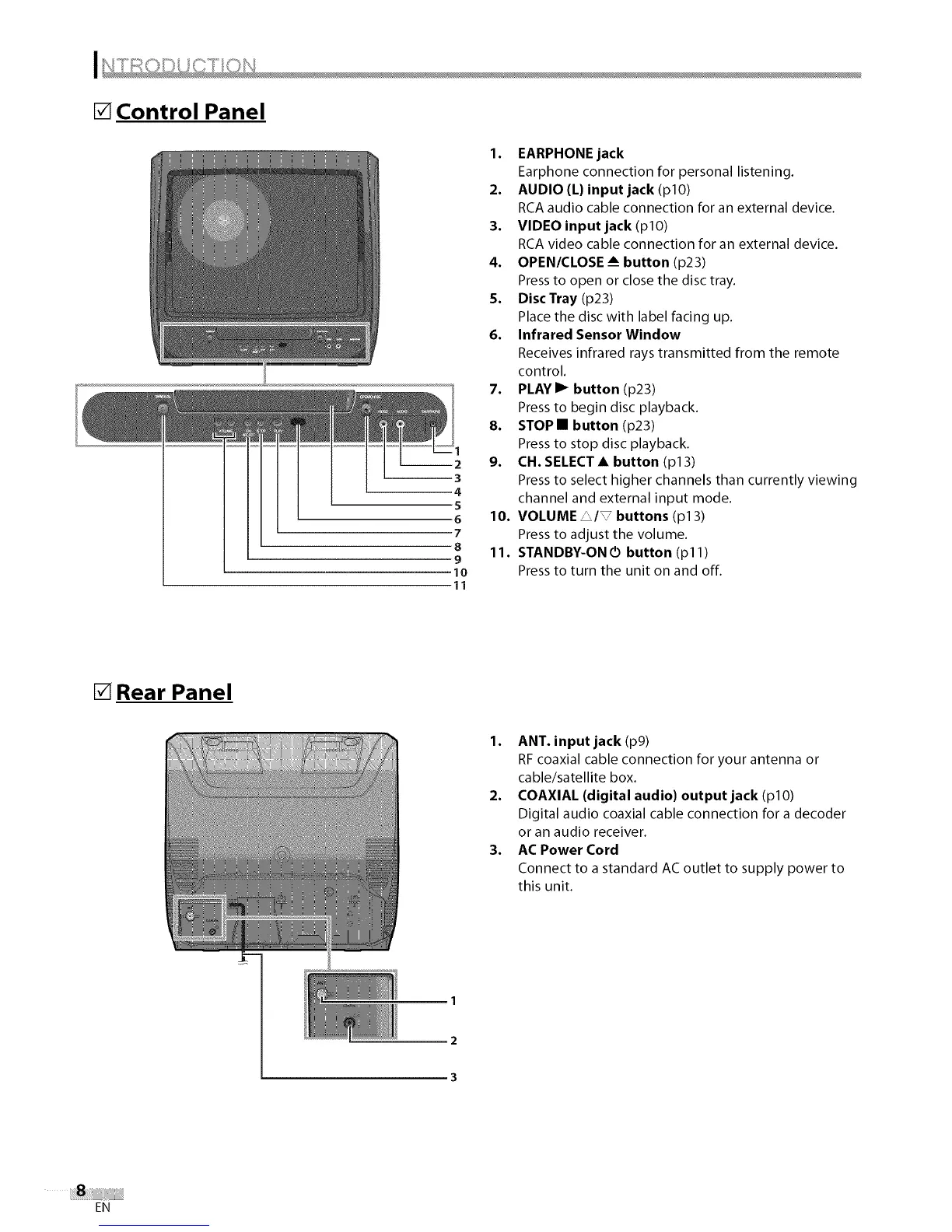

[] Control Panel

1. EARPHONE jack

Earphone connection for personal listening.

2. AUDIO (L) input jack (pl0)

RCA audio cable connection for an external device.

3. VIDEO input jack (pl0)

RCA video cable connection for an external device.

4. OPEN/CLOSE----- button (p23)

Press to open or close the disc tray.

5. DiscTray (p23)

Place the disc with label facing up.

6. Infrared Sensor Window

Receives infrared rays transmitted from the remote

control.

7. PLAYI_ button (p23)

Press to begin disc playback.

8. STOP• button (p23)

Press to stop disc playback.

9. CH. SELECT A button (p13)

Press to select higher channels than currently viewing

channel and external input mode.

10. VOLUME _/T buttons (pl 3)

Press to adjust the volume.

11. STANDBY-ON O button (p 11)

Press to turn the unit on and off.

[] Rear Panel

1. ANT. input jack(p9)

RF coaxial cable connection for your antenna or

cable/satellite box.

2. COAXIAL (digital audio) output jack (pl0)

Digital audio coaxial cable connection for a decoder

or an audio receiver.

3. AC Power Cord

Connect to a standard AC outlet to supply power to

this unit.
