Magnescale MG80-EI - Page 14

13

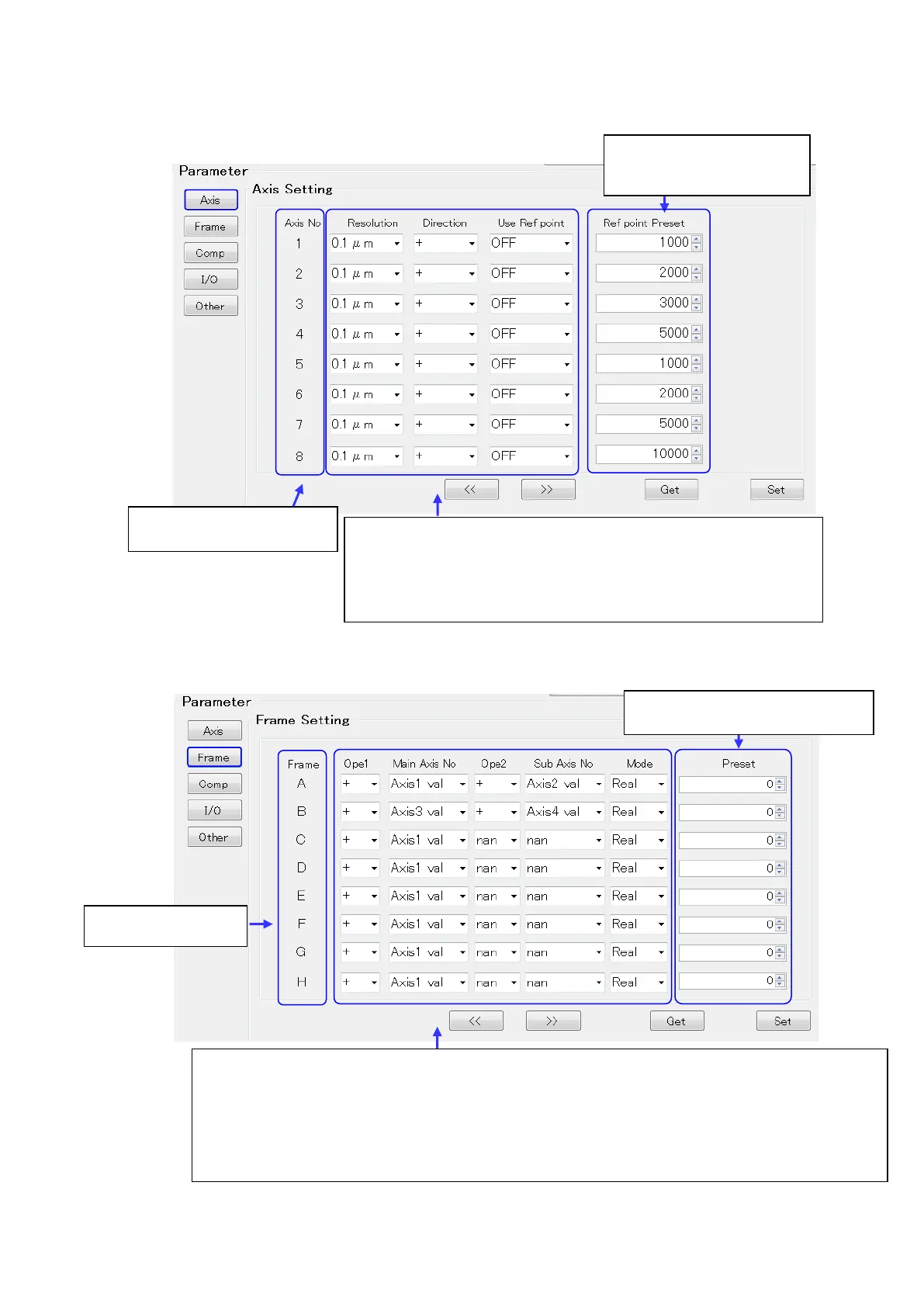

(1) Axis Setting screen
(2) Frame Setting screen
Axis number
Select from the pull-down
Input resolution:(0.1, 0.5, 1.0, 2.0, 5.0, 10.0μm)
Direction: Count direction of the measuring unit
Use Ref point: Valid or invalid of reference point detection.
Reference point preset
value (unit: 0.1μm)
Frame number
Select from the pull-down
Ex.1: 1axis + 2axis Current value
Ope1(+), Main Axis No.(Axis1 val), Ope2(+), Sub Axis No.(Axis2 val),Mode(Real)
Ex.2: 3axis + 4axis Current value
Ope1(+), Main Axis No.(Axis3 val), , Ope2(+), Sub Axis No.(Axis4 val),Mode(Real)
Preset value (Unit: 0.1μm)
