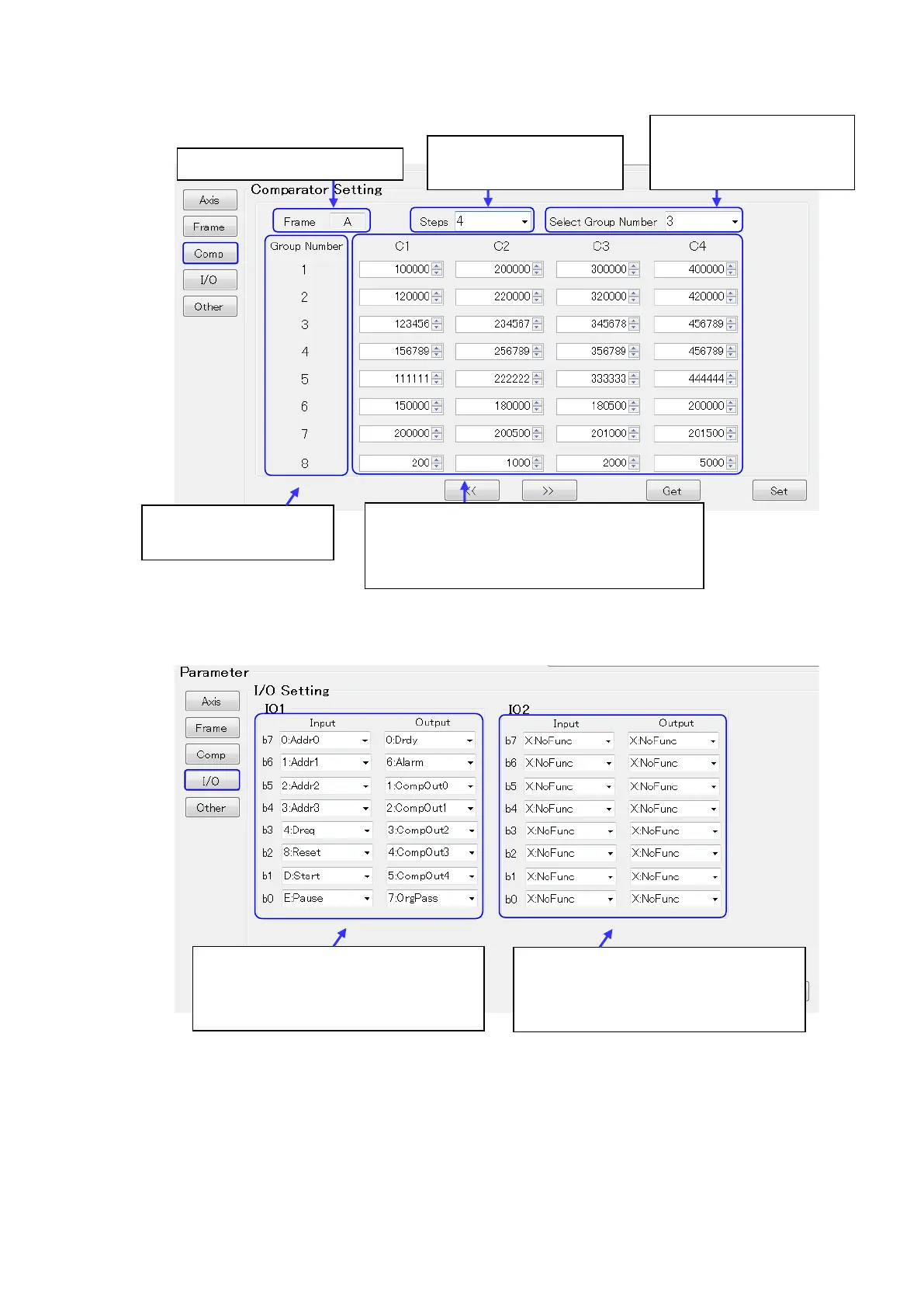

(3) Comparator Setting screen
(4) I/O Setting screen
Comparator setting
group number
comparator settings
Comparator setting
Click the icon or enter the value manually.
(Unit: 0.1μm)
Set the Steps
(2step/4step)
Select the group
number to be set in the
selected frame.
Select the frame
Input/output setting of the first I/O
module.
Select function from the pull-down.
Input/output setting of the second
I/O module.
Select function from the pull-down.
