8
57-645 Eclipse Guided Wave Radar Transmitter - PROFIBUS PA
™
Some key information is needed to configure the
Eclipse transmitter. Complete the following operating
parameters table before beginning configuration.
P
robe Model What probe model is listed on the
model information?
(first four digits of probe model number) _____________
Probe Mount Is the probe mounted NPT, BSP,
or flange? _____________
Measurement What is the desired measurement? Choices
Type are: Level only, Volume, Interface Level
or Interface Level and Volume. _____________
Probe Length What probe length is listed on the
model information?
(last three digits of probe model number) _____________
Level Offset The desired level reading when the
liquid is at the end of the probe. _____________
Dielectric What is the dielectric constant range
of the process medium? (Lower layer
dielectric for interface applications) _____________
2.2 QuickStart Mounting
NOTE: Confirm the configuration style and process connection
size/type of the Eclipse transmitter. Ensure it matches the
requirements of the installation before continuing with the
QuickStart installation.

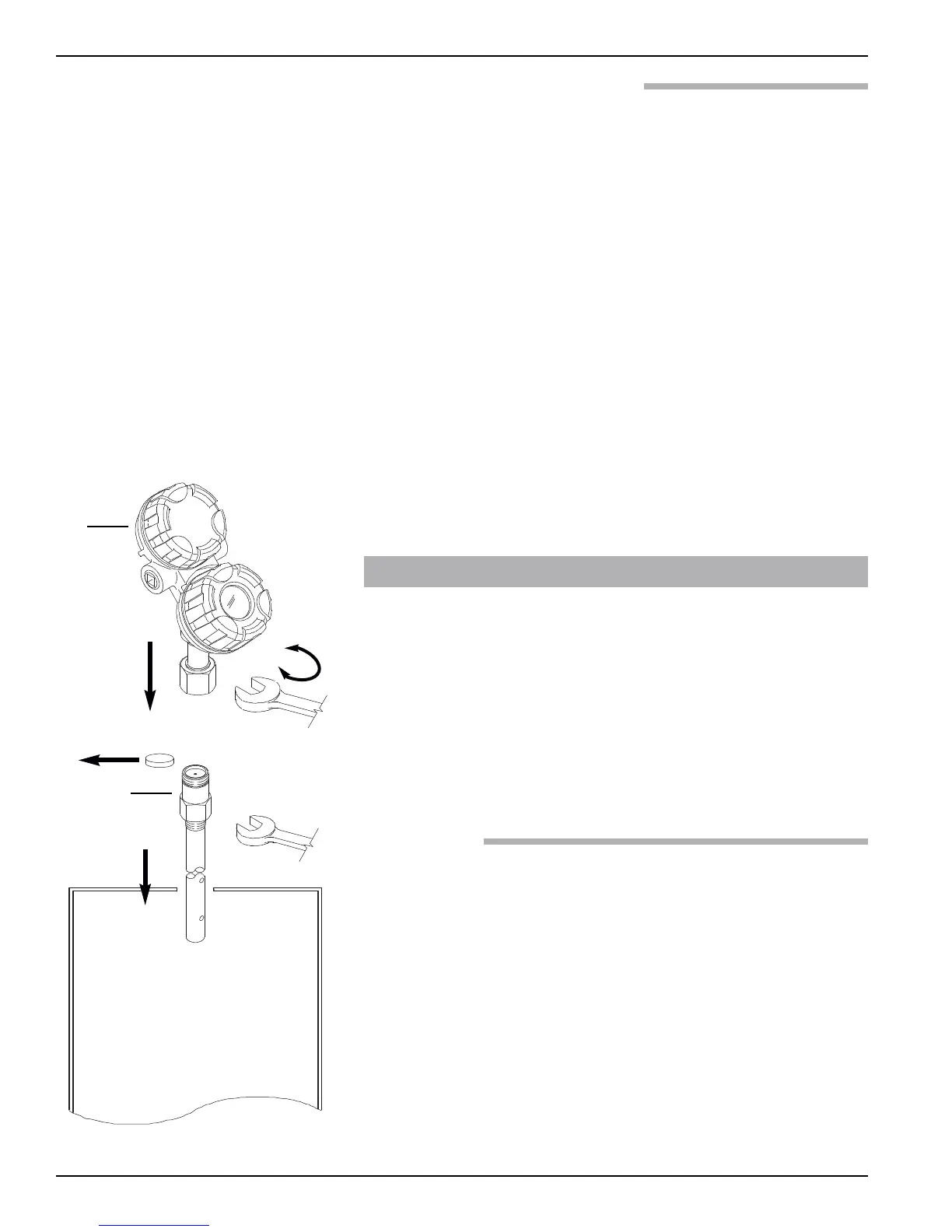

① Confirm the model and serial numbers on the nameplates
of the Eclipse probe and transmitter are identical.
② Carefully place the probe into the vessel. Align the probe
process connection with the threaded or flanged mounting
on the vessel.
①
④
⑥
⑤
⑦
②
③
①
