3.7.2 Probe
62
57-600 Eclipse
®
Guided Wave Radar Transmitter
7
5L 3" 900# ANSI Ring Joint Flange ➁
5M 3" 1500# ANSI Ring Joint Flange ➁
5N 3" 2500# ANSI Ring Joint Flange ➁
6K 4" 600# ANSI Ring Joint Flange ➁
6L 4" 900# ANSI Ring Joint Flange ➁
6M 4" 1500# ANSI Ring Joint Flange ➁
6N 4" 2500# ANSI Ring Joint Flange ➁
48 2" 2500# ANSI Raised Face Flange ➁
53 3" 150# ANSI Raised Face Flange
54 3" 300# ANSI Raised Face Flange
55 3" 600# ANSI Raised Face Flange ➁
56 3" 900# ANSI Raised Face Flange ➁
57 3" 1500# ANSI Raised Face Flange ➁
58 3" 2500# ANSI Raised Face Flange ➁
63 4" 150# ANSI Raised Face Flange
64 4" 300# ANSI Raised Face Flange
65 4" 600# ANSI Raised Face Flange ➁
66 4" 900# ANSI Raised Face Flange ➁
67 4" 1500# ANSI Raised Face Flange ➁
68 4" 2500# ANSI Raised Face Flange ➁
23 1" 150# ANSI Raised Face Flange ➀
24 1" 300# ANSI Raised Face Flange ➀
25 1" 600# ANSI Raised Face Flange ➁
27 1" 900/1500# ANSI Raised Face Flange ➁
28 1" 2500# ANSI Raised Face Flange ➁
33 1
1
⁄2" 150# ANSI Raised Face Flange ➀
34 1
1
⁄2" 300# ANSI Raised Face Flange ➀
35 1
1
⁄2" 600# ANSI Raised Face Flange ➁
37 1
1
⁄2" 900/1500# ANSI Raised Face Flange ➁
38 1
1
⁄2" 2500# ANSI Raised Face Flange ➁
43 2" 150# ANSI Raised Face Flange ➀
44 2" 300# ANSI Raised Face Flange ➀
45 2" 600# ANSI Raised Face Flange ➁
47 2" 900/1500# ANSI Raised Face Flange ➁
3K 1
1
⁄2" 600# ANSI Ring Joint Flange ➁
3M 1
1
⁄2" 900/1500# ANSI Ring Joint Flange ➁
3N 1
1
⁄2" 2500# ANSI Ring Joint Flange ➁
4K 2" 600# ANSI Ring Joint Flange ➁
4M 2" 900/1500# ANSI Ring Joint Flange ➁
4N 2" 2500# ANSI Ring Joint Flange ➁
5K 3" 600# ANSI Ring Joint Flange ➁

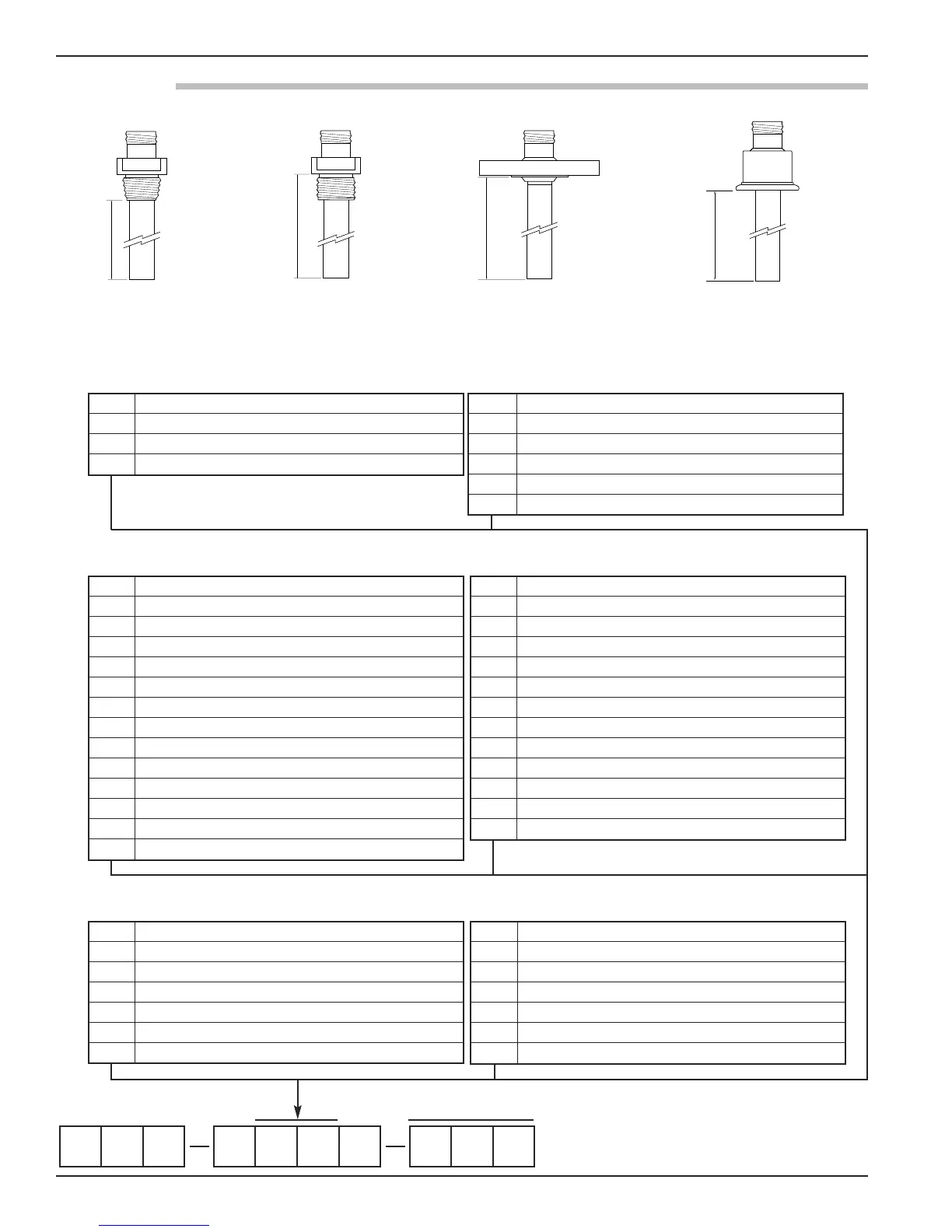

Insertion Length
NPT Process Connection
Insertion Length
BSP Process Connection
Insertion Length
ANSI or DIN Welded Flange
PROCESS CONNECTION SIZE/TYPE
THREADED CONNECTIONS
ANSI RAISED FACE FLANGE CONNECTIONS
ANSI RING JOINT FLANGE CONNECTIONS
➀ Configuration/Style Codes A, D, P, R, S & T only
➁ Configuration/Style Codes D, J, P & S only
➂ Configuration/Style Codes B, F, J, 1, 2, 5 & 7 only
Insertion Length
Hygienic Flange
11
3
⁄4" NPT Thread ➀
22 1" BSP Thread ➀
41 2" NPT Thread ➂
42 2" BSP Thread ➂
2P
3
⁄4" Triclover
®
type, 16 AMP Hygienic Flange
3P 1" or 1
1
⁄2" Triclover
®
type, 16 AMP Hygienic Flange
4P 2" Triclover
®
type, 16 AMP Hygienic Flange
5P 3" Triclover
®
type, 16 AMP Hygienic Flange
6P 4" Triclover
®
type, 16 AMP Hygienic Flange
9P 2
1
⁄2" Triclover
®
type, 16 AMP Hygienic Flange
