BE57-646 ECLIPSE Guided Wave Radar Transmitter - FOUNDATION fieldbus
™
4.2 Menu Traversal and Data Entry

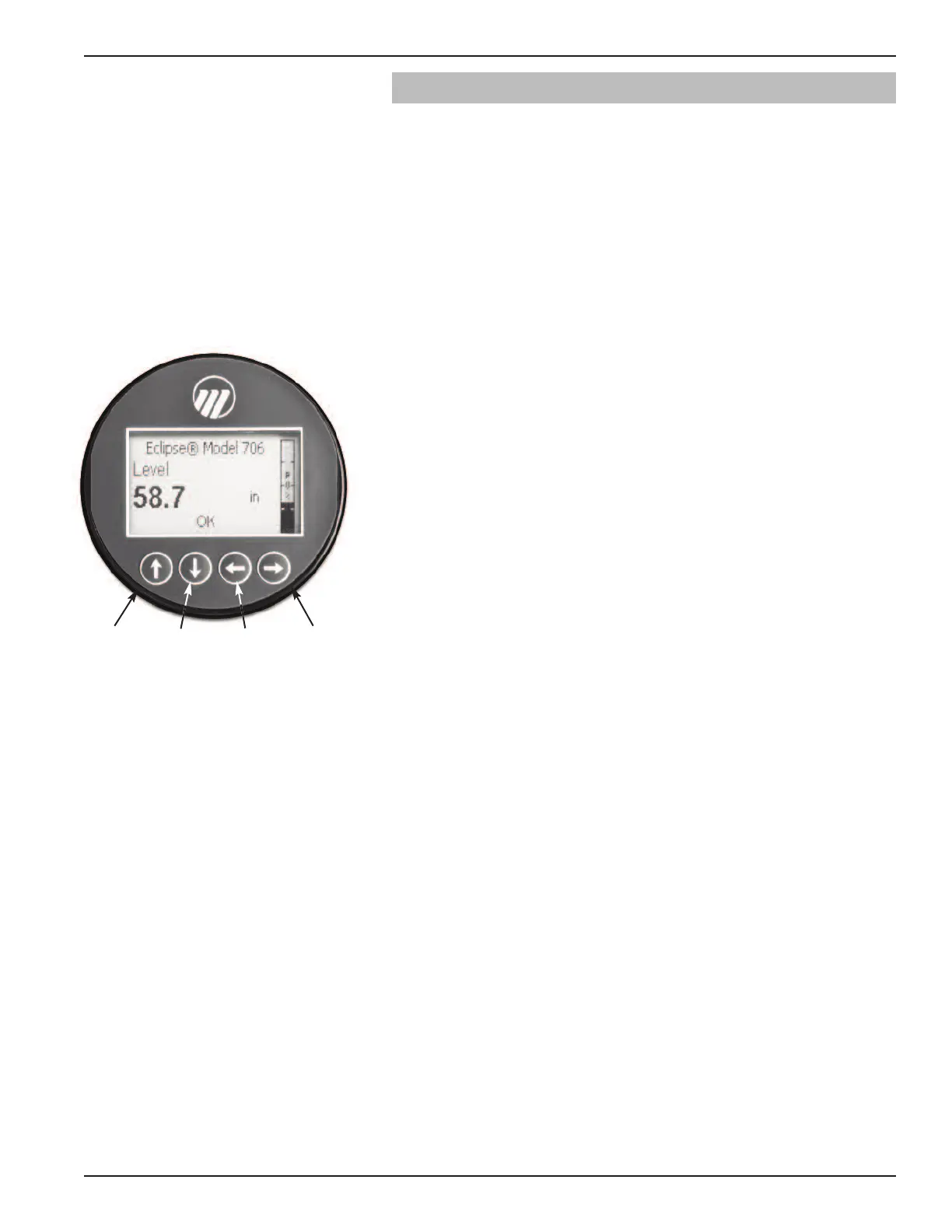

The four push buttons offer various forms of functionality
for navigation and data entry.
The Model 706 user interface is hierarchical in nature, best
described as a tree structure. Each level in the tree contains
one or more items. Items are either menu labels or parame-
ter names.
• Menu labels are presented in all capital letters
• Parameters are capital words
4.2.1 Navigating the Menu
UP moves to the previous item in the menu branch.
DOWN moves to the next item in the menu branch.
BACK moves back one level to the previous (higher)
branch item.
ENTER enters into the lower level branch or switches to
the entry mode. Holding the ENTER down on any
highlighted menu name or parameter will show help text
for that item.
4.2.2 Data Selection
This method is used for selecting configuration data from a
specific list.
UP and DOWN to navigate the menu and highlight
the item of interest
ENTER allows modification of that selection
UP and DOWN to choose new data selection
ENTER to confirm selection
Use BACK (Escape) key at any time to abort the proce-
dure and escape to previous branch item.
➪
➪
➪
➪
➪
➪
➪
➪
➪
➪
➪
Up Down Back Enter
