Magnetrol ES Modulevel - Transmitter Head Parts; Recommended Spare Parts

36

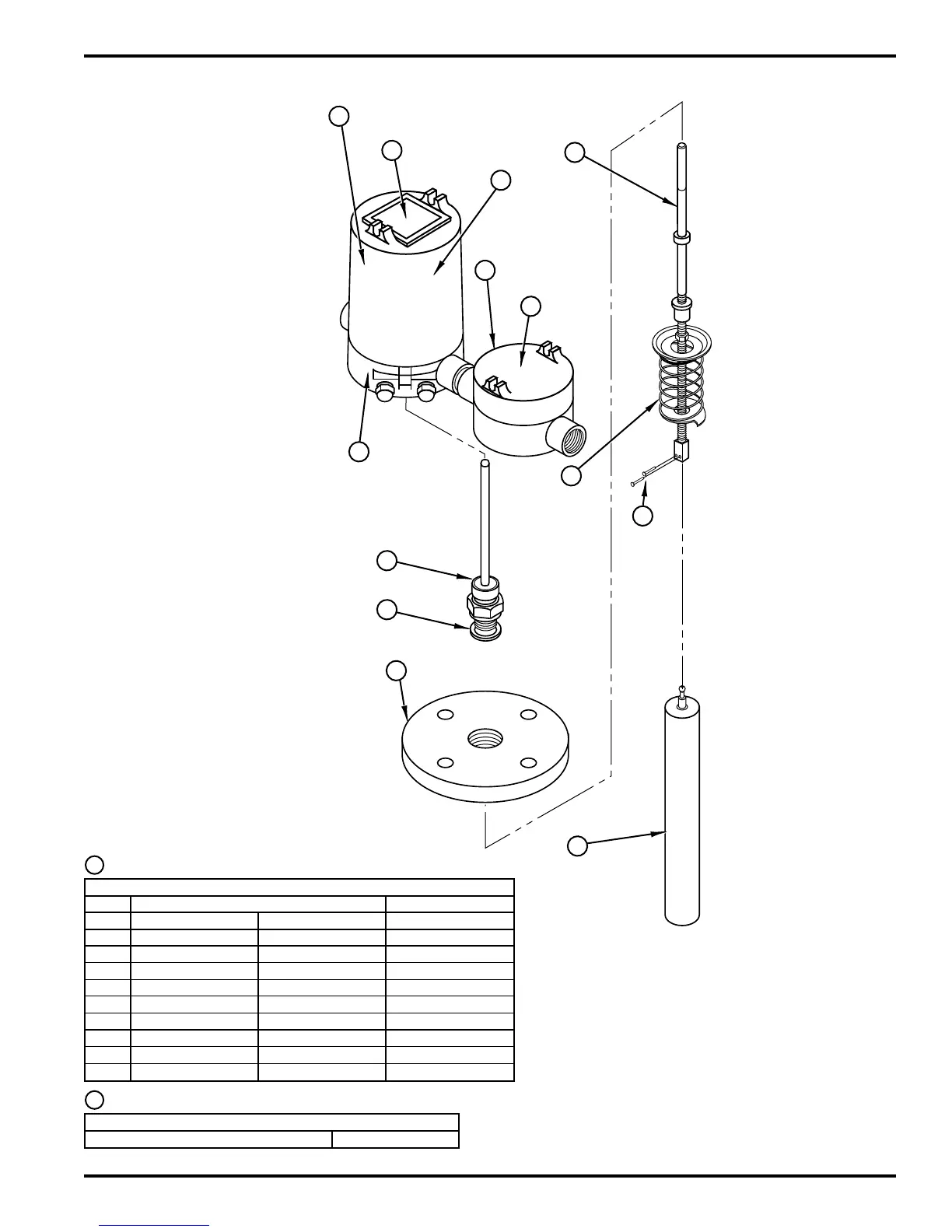

48-618 ES/EZ Modulevel Displacer Level Transmitter (Top Hat Assembly Design)
Cotter pins
All Units 10-5203-001
10
2
4
1
5
3
6
11
13
7
8
9
12
Transmitter P.C. Board 
Assembly and Bracket
Housing Base
and Cover
LVDT
Core Stem
Housing O-Rings
LVDT
Assembly
Meter
Only
Junction Box
Range Spring
Cotter
Pins
Enclosing Tube
Gasket
Flange
or
Flange
Assembly
Displacer
Displacer
Low Pressure High Pressure
0.5/1.0 2.0 1.0
14" 89-6125-001 89-6126-001 89-6125-010
32" 89-6125-002 89-6126-002 89-6125-011
48" 89-6125-003 89-6126-003 89-6125-012
60" 89-6125-004 89-6126-004 89-6125-013
72" 89-6125-005 89-6126-005 n/a
84" 89-6125-006 89-6126-006 n/a
96" 89-6125-007 89-6126-007 n/a
108" 89-6125-008 89-6126-008 n/a
120" 89-6125-009 89-6126-009 n/a
12
13
