Page 12© 2016 Sensata Technologies
Installation

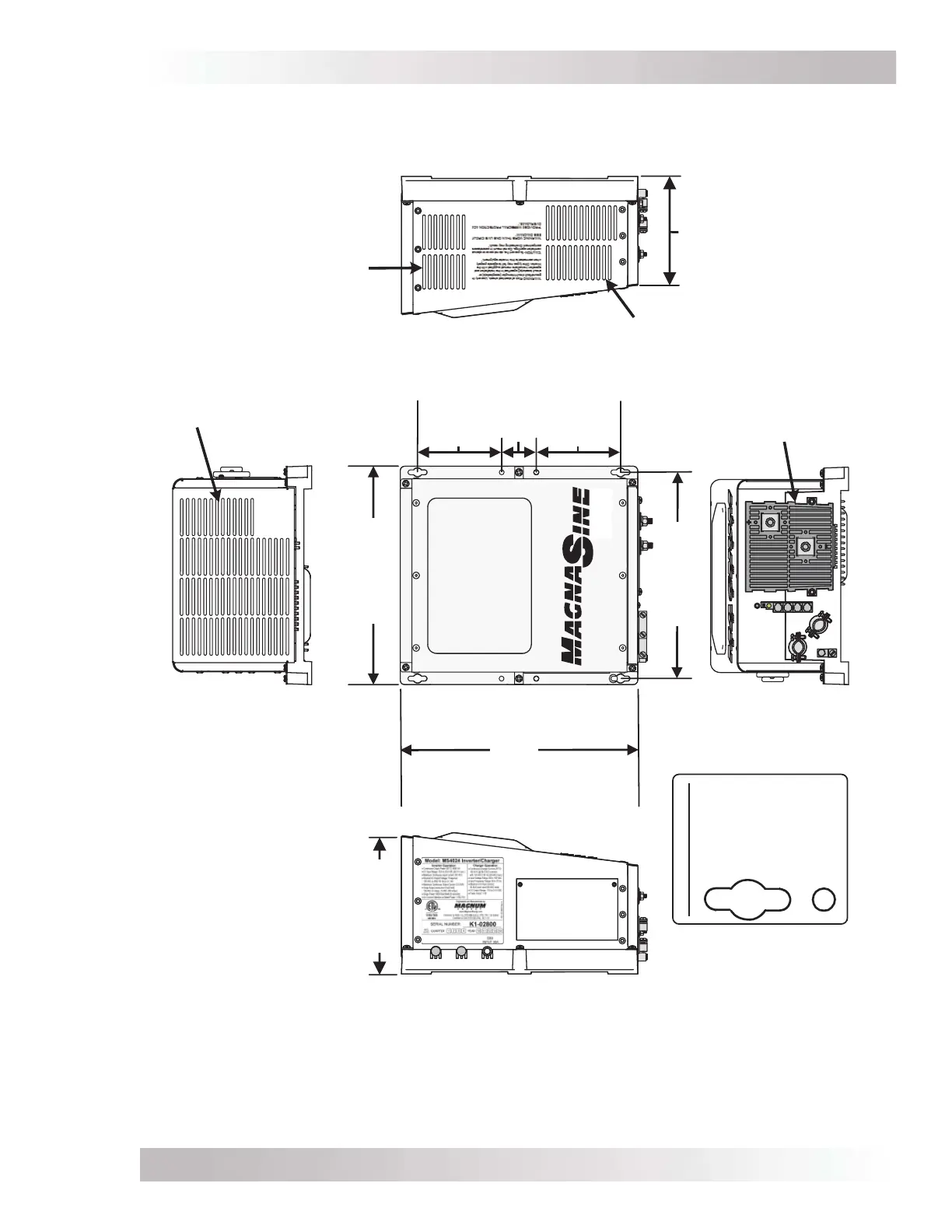

Figure 2-4, MS Dimensions (MS2012, MS2812, MS2024, MS4024, MS4048)
Bottom
Left
Side
Right
Side
Front
2"
(5.1 cm)
4 ⅞"
(12.4 cm)
4 ⅞"
(12.4 cm)
13 ¾"
(34.9 cm)
12 ⅝"
(32.1 cm)
12"
(30.5 cm)
6 ⅝"
(16.8 cm)
8"
(20.3 cm)
Exhaust Air Vents
Exhaust Air Vents
Air Intake
Vents
Air Intake Vents
Top
30
30
Mounting Holes
Keyhole
slots (x4)
Mounting Holes (x4)
Use up to
9/32"
(7 mm)
screw/bolt
