Magnum MS2012 - Figure 3-2, Power Flow - Inverter Mode (MS2000 Models); Figure 3-3, Power Flow - Inverter Mode (MS2000-15 B;-20 B Models)

Page 46 © 2016 Sensata Technologies
Operation

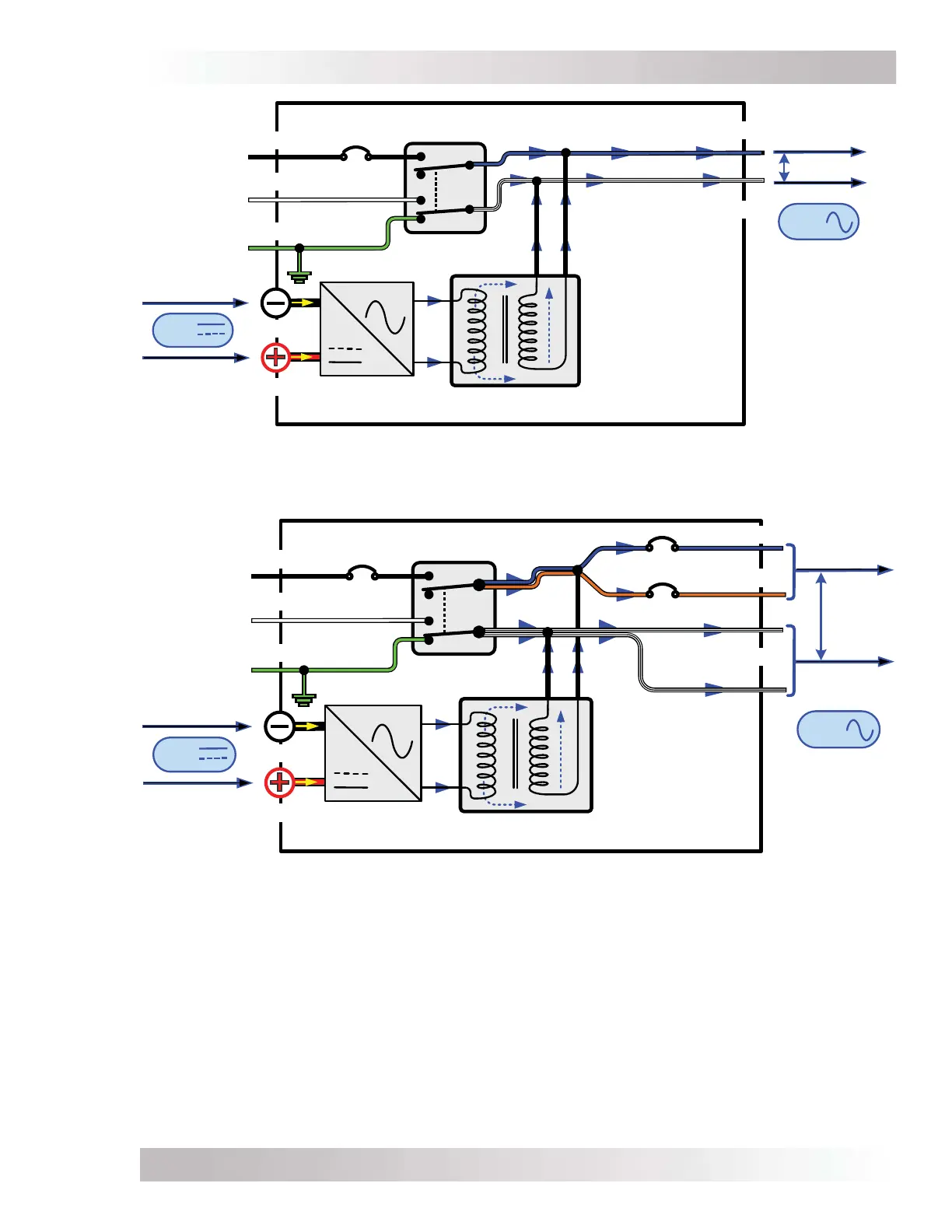

Figure 3-2, Power Flow – Inverter Mode (MS2000 models)
120 VAC
AC NEU OUT
Neutral-Ground
Transfer Contact
AC Hot
Transfer Contact
AC HOT 1 OUT
AC HOT 1 IN
INPUT
(30A)
AC NEU IN
AC GROUND
DC
IN
Power Transformer
FET Bridge
AC
DC
DC POS
DC NEG
AC
OUT
Figure 3-3, Power Flow – Inverter Mode (MS2000-15B/-20B models)
AC NEU OUT
Neutral-Ground
Transfer Contact
AC Hot
Transfer Contact
AC HOT 1 OUT
AC HOT 1 IN
INPUT
(30A)
AC NEU IN
AC GROUND
DC
IN
Power Transformer
FET Bridge
AC
DC
DC POS
DC NEG
AC
OUT
AC HOT 2 OUT
CB1
CB2
120 VAC
