Installation
Main Panel
(Utility/Generator Input)
MS Series Inverter
AC Terminal Block
(AC input and output wiring)
SINGLE IN / SINGLE OUT (30A) wiring
AC HOT 1 IN
(from main panel)
AC HOT 1 OUT
(to sub-panel)
AC NEUT IN
(from main panel)
AC NEUT OUT
(to sub-panel)
Sub-Panel and Outlets
(Inverter Loads)
120
VAC
120
VAC
AC GROUNDS
(to/from
both panels)
ON
OFF
ON
OF F
ON
OF F
ON
OF F
ON
OF F
ON
OF F
ON
OF F
ON
OF F
ON
OF F
ON
OF F
ON
OF F
ON
OF F
ON
OF F
30
..Maximum..
30-amp breaker
(single pole)
required to
inverter AC input
In mobile installations: neutral is typically not
connected to ground in main panel.
ON
OF F
ON
OF F
ON
OFF

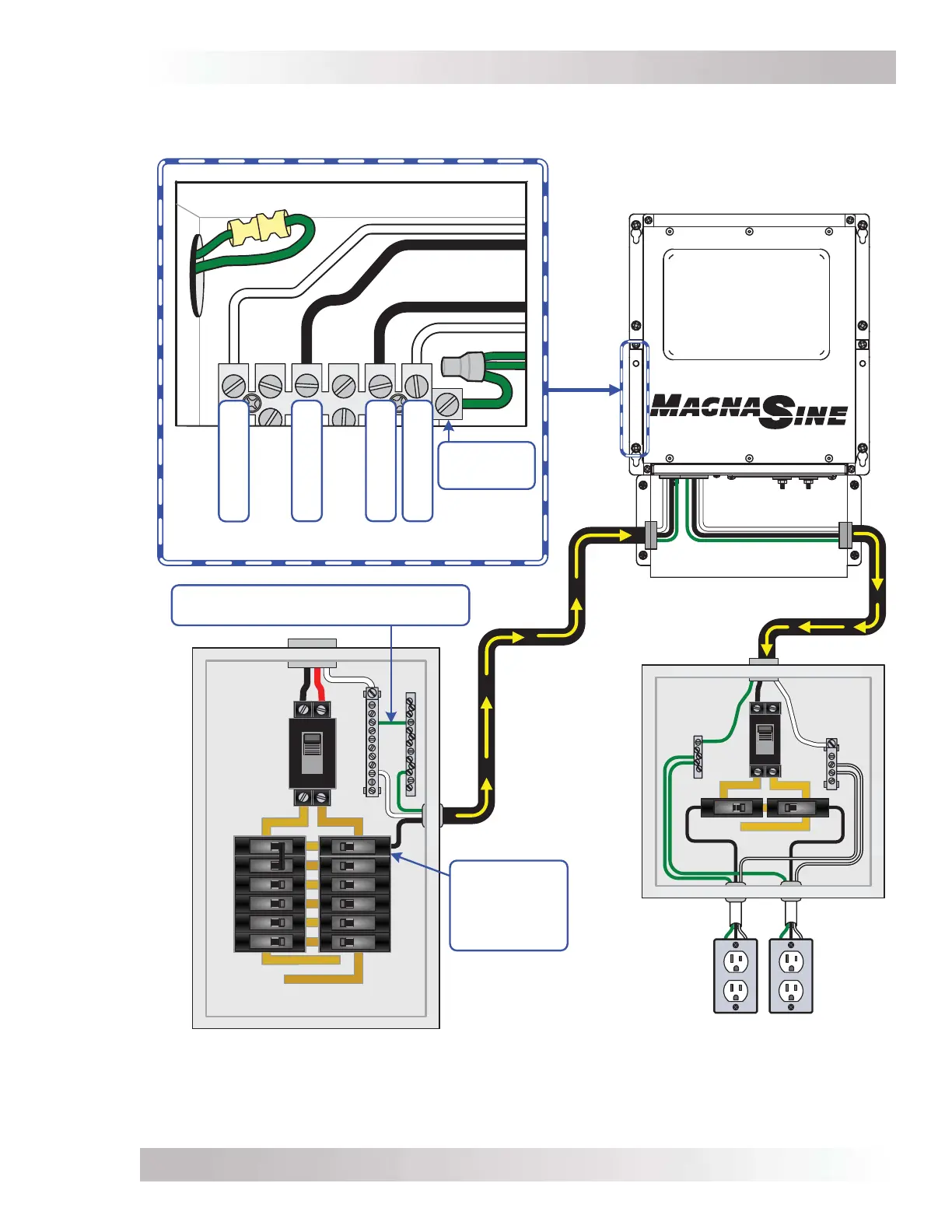

Figure 2-11, AC Wiring for Single In – Single Out (30 A) Confi gurations
