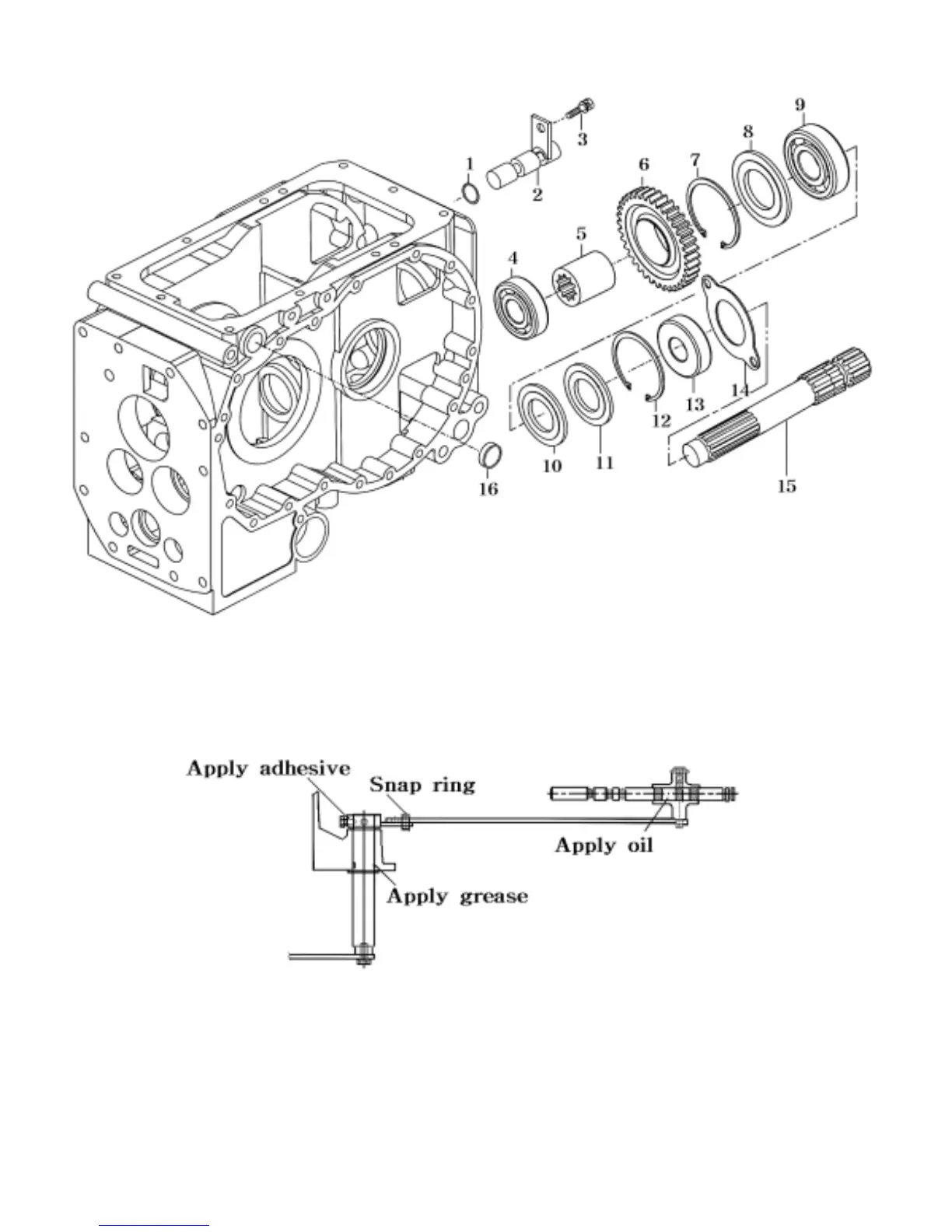

(5) Rear PTO shift mechanism

Fig.5-48

1.O-ring 2.Plug(PTO) 3.Bolt 4.Ball bearing(HL1) 5.Collar 6.Gear spur/37

7.Snap ring 8.Collar(35X50X2) 9.Ball bearing 10.Shim(B) 11.Shim(0.5)

12.Snap ring 13.Seal oil 14. Cover(plate) 15. PTO shaft 16.Seal

Fig.5-49

5-37
