(6) REAR PTO counter shaft mechanism

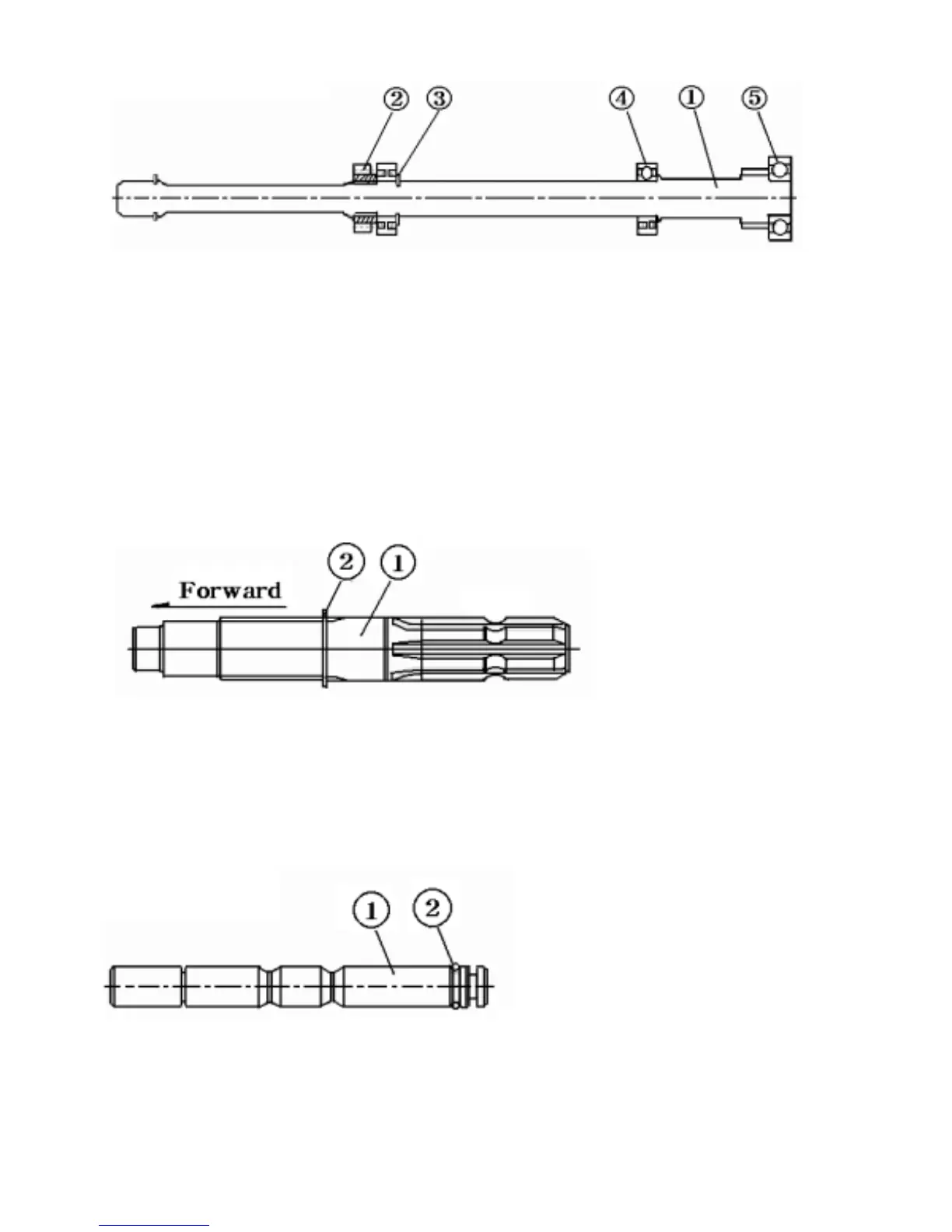

Fig.5-50

1.Gear,spur 12 2.Gear spur 14 3. Snap ring(shaft) 4. Ball bearing(6205) 5. Ball bearing(6305)

Note:

- When pushing the R.B.B’s(6305,6205) into the gear ,spur 12,be careful only to push

their inner races.

- The snap ring C should be securely seated in the groove and the press-processed side

turned towards the outer side.

- Be sure not to mix different pairs of the gear(spur/14).

- Every time a gear is installed,its smooth rotation should be checked.

a. REAR PTO shaft

1.Shaft PTO

2.Snap ring

Note:

The snap ring C should be securely seated in the groove and the press-processed side

turned towards the outer side.

Fig.5-51

b.REAR PTO shift stay

1.Stay PTO shift

2.O- ring

Fig.5-52

Note:

- When installing the O-ring to rear transmission case,take care not to damage it or

allow to fall.
