(7) Drive pinion Sub assembly

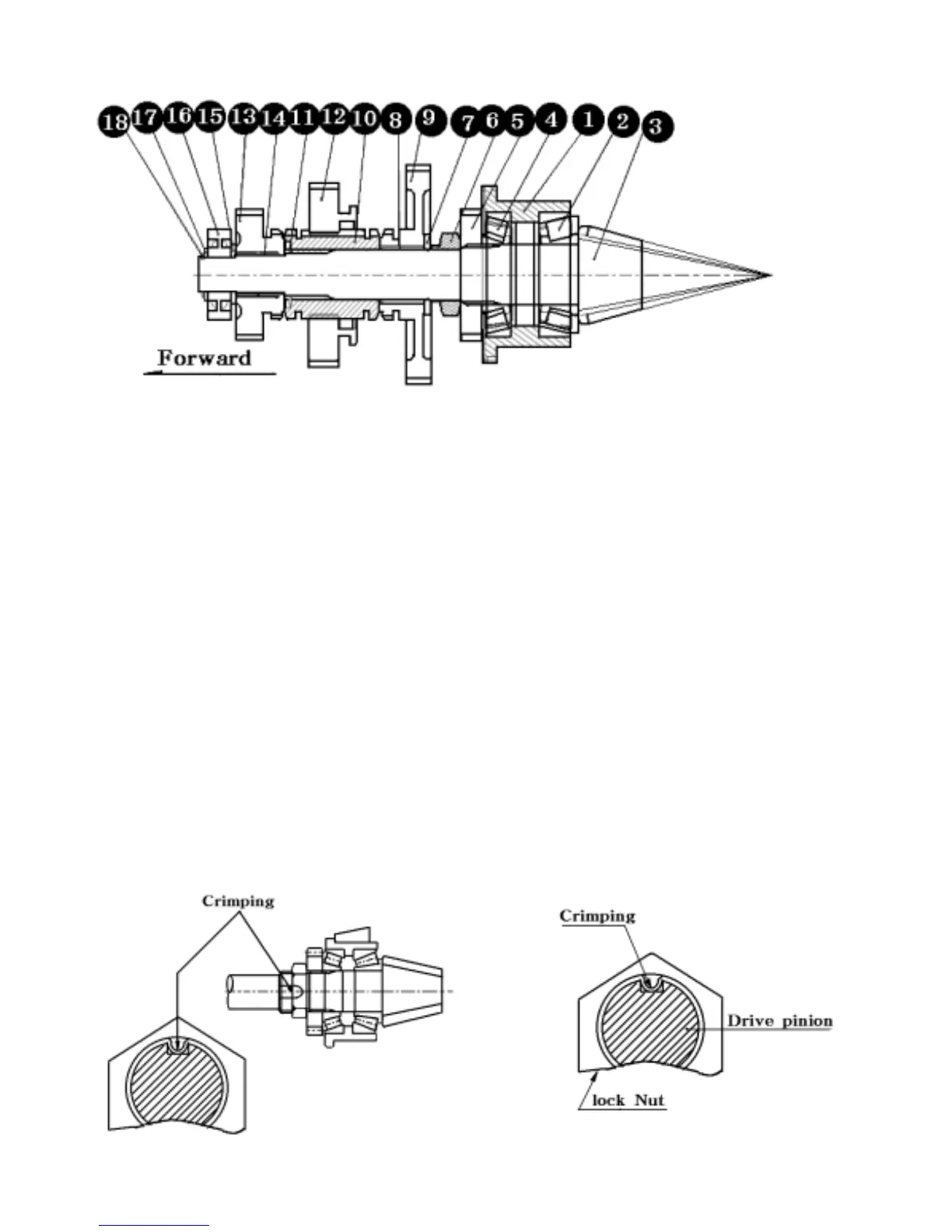

Fig.5-53
1.Metal pinion 2.Taper roller bearing 3.pinion drive 10 4.Taper roller bearing
5.Gear spur 23T 6.Nut(M30X1.5) 7.Washer(28X46X03) 8.Needle bearing
9.gear spur 40T 10.Hub(28X51X59) 11.Snap ring (shaft) 12.Gear spur 33T
13.gear helical 22T 14.needle bearing 15.Washer(20X34X03) 16.Ball bearing
17.Washer(20X30X1.8) 18.Snap ring (shaft)
Note:
a.Apply oil to the drive pinion and related parts ahead of time.Then install them and tighten the
assembly to the specified torque.
b.Be sure that the starting torque of the drive pinion meets the specified level.
Starting torque is 8-11 Kgf.m (0.08-0.11KN.cm)
c.After the starting torque has been adjusted to the specified level,crimp the lock of the nut at one
point as illustrated.
d. Be sure that these parts should turn smoothly
When the drive pinion or the ring gear has been replaced, the proper number of shims to be installed
should be determined based upon the following procedure:
Fig.5-54
5-39
