FIG.2-11
13) Remove the battery and battery bracket.
14) Remove the two hoses for the power
steering system.
15) Remove the mounting bolts of the right
hand pivot metal(support) ahead of time.
16) At this stage,the power steering unit can be
removed by disconnecting both right-hand
and left hand tie-rods and removing the unit
mounting bolts.
Note:
When the pipes related to the hydraulic system
are removed,their openings should be covered
with plastic caps or the like to keep out dust or
other foreign matter.
(2) installation
Reassemble in reverse order of removal.
1) Install the axle bracket on the engine.
2) Retighten the right-hand pivot metal
(support) mounting bolts.
3) Connect the piping of the power steering
system.
4) Install the battery bracket and battery.
5) Install the radiator and oil cooler on the front
axle bracket.
6) Connect the upper, lower and drain radiator
hoses.
7) Install the air cleaner assembly and the inlet
pipe of the air cleaner.
8) Connect the wiring of the head lights and
other harness.
9) Connect the ground strap and the battery
cables.
10) Install the engine hood.
11) Install the side covers.
12) Fill the radiator with coolant.
2) Support the engine on the bottom with a jack
or stands.
3) Hold the transmission with a garage jack or a
crane so that the transmission side can be
moved when needed.
4) Remove both side covers (RH and LH) and
engine hood.

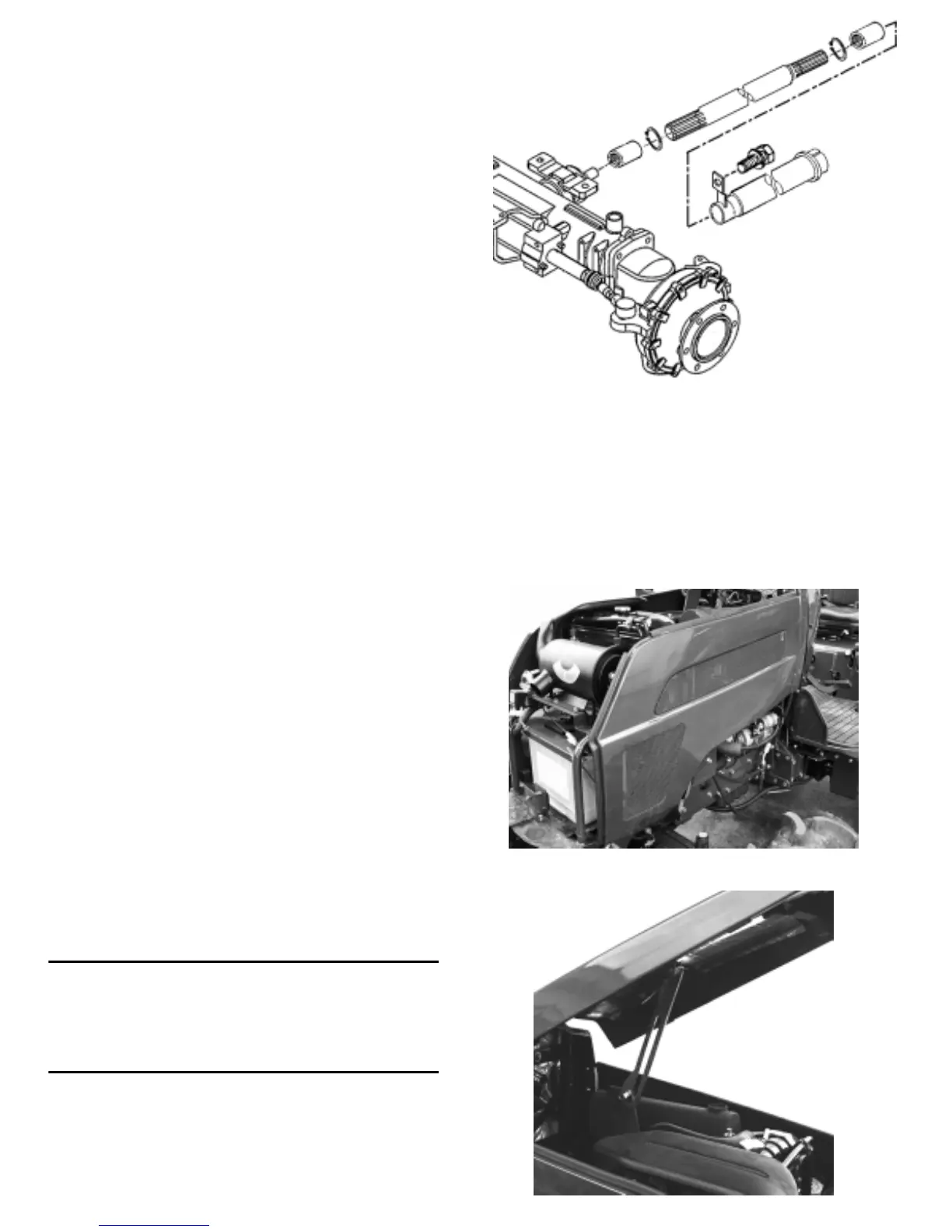

FIG.2-12
FIG.2-13
3.SEPARATION OF THE ENGINE
AND THE FRONT TRANSMISSION.
Parts which can be inspected during this
operation.
-Fly wheel
-Main clutch
(1) Removal
1) Drain the transmission of the oil
( In the case of the 4WD version),remove the
front wheel drive shaft.
2-7
