Page 79Version 2023-06-15 Fire damper - FDMR
TPM 140/19
■ For connection of following duct → see page 90
■ Installation frame can be installed on the damper or delivered separately
■ Installation procedure of the installation frame for FDMR → see manual
Ø
D
X
ØD+10
+3
(installation opening)
4 x
Ø
12
EIS 90
* min. 110 mm - Concrete
min. 125 mm - Aerated concrete
≥ 110*
110
Ø
D

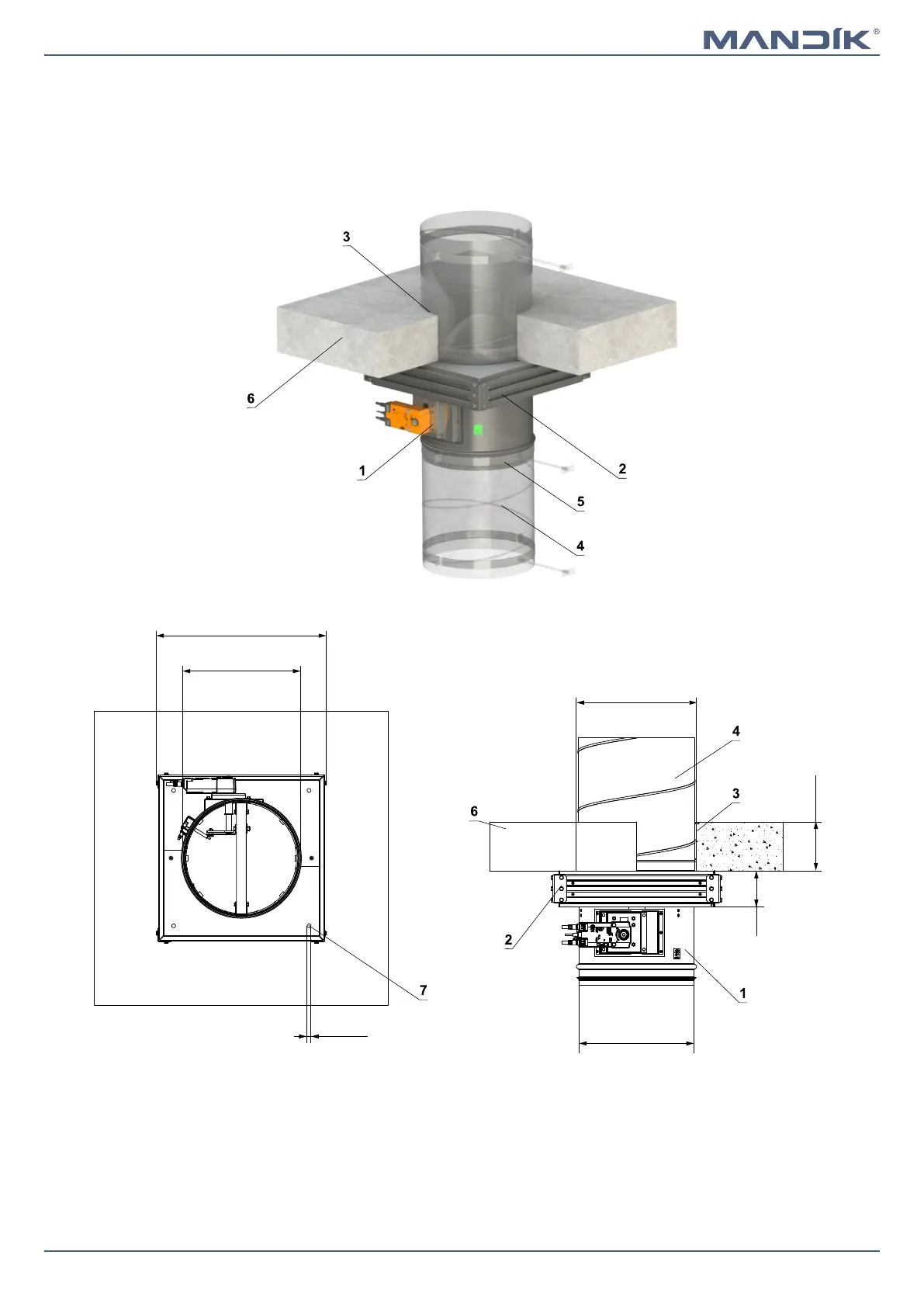

In solid ceiling construction - installation frame R5
X = ØD+120 for dampers ØD 100-200 mm
X = ØD+167 for dampers ØD 225-800 mm
1 FDMR
2 Installation frame - apply HILTI CFS-S ACR mastic at the entire area and
glue it to the fire separating construction
3 Fill the gaps with glue PROMAT K84
4 Duct
5 Clamp with threaded rod → see pages 87 to 89
6 Solid ceiling construction
7 Holes for fixing the frame with threaded rods or steel anchors (frame
fixing material not included)
