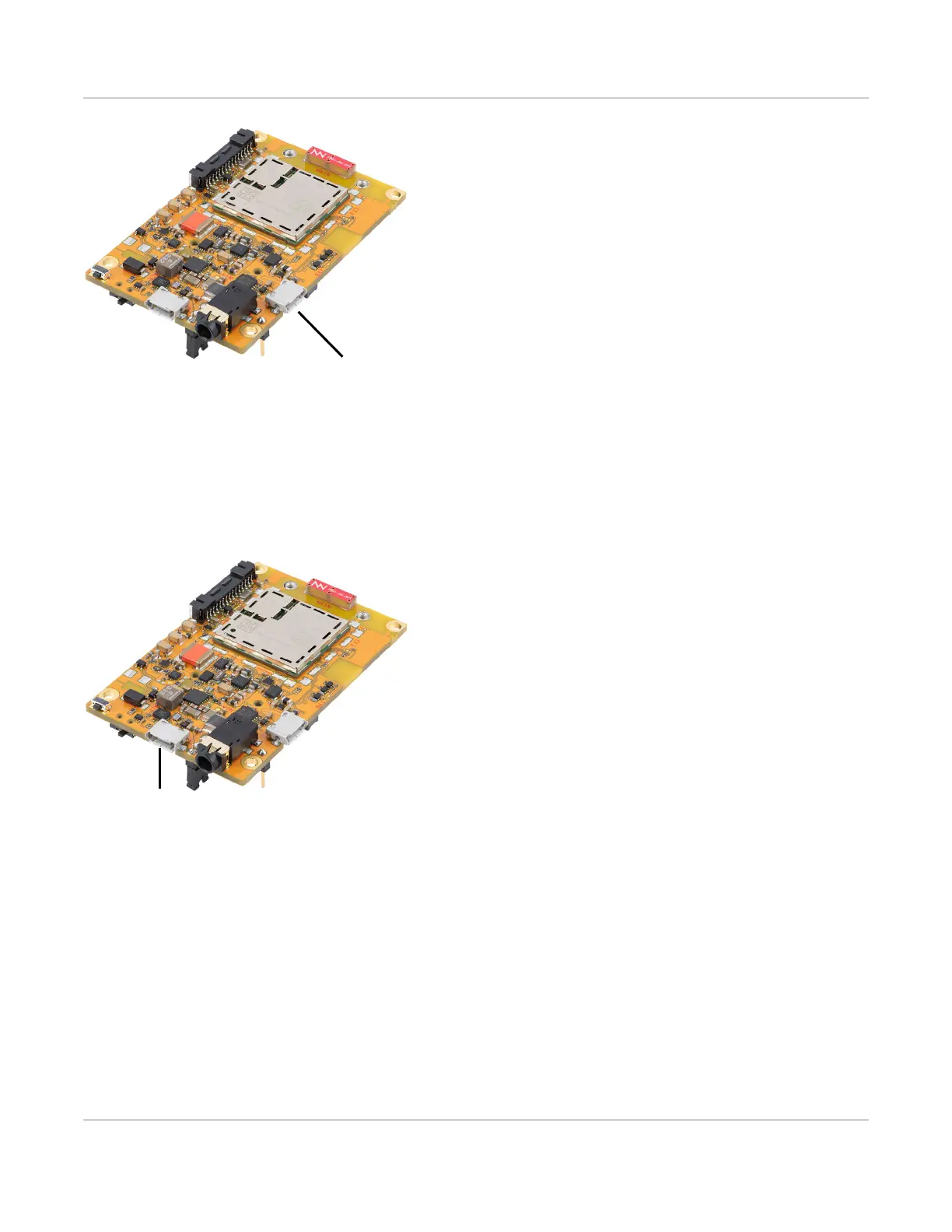

Figure 3-14: Console USB Output Connection
3.5.2 USB Connector
The mangOH Yellow includes a micro-USB 2.0 connector (CN802) for access to the CF3 module’s interfaces
(ECM, AT, etc.).
By default, this port is enabled and configured to connect to the CF3 module’s USB interface.
Figure 3-15: CF3 USB Connector
3.5.3 Expansion Connector
The mangOH Yellow includes a 15-pin expansion connector (CN805) that can be used to connect an external
device to the mangOH Yellow.
The connector supports several interfaces for communication between the external device and the
mangOH Yellow’s WP7702 module (ADC, GPIO, I2C, SPI, UART).
The connector also includes power pins that allow the mangOH Yellow to provide power to the external device, or
for the external device to provide power to the mangOH Yellow.
For expansion connector details, refer to the mangOH Yellow Hardware Architecture Guide.
Console USB Connector
USB connector
