3.4: Inserting a microSD Card
Rev 2 10/21/19 17 41113427
3.4 Inserting a microSD Card
To install a microSD card:
1. Place the mangOH Yellow with the dip switch block facing up (as shown).

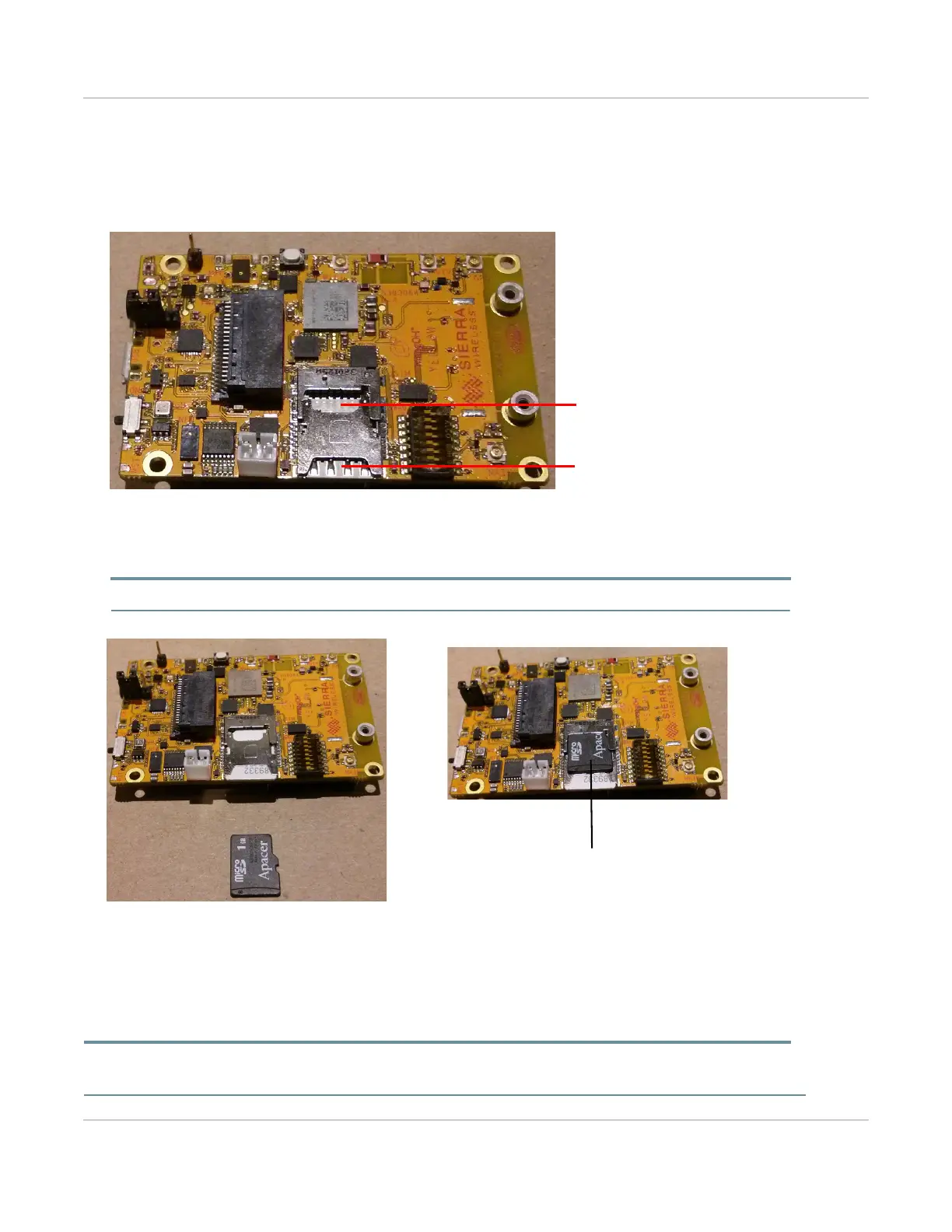

Figure 3-9: SIM Connector and micro-SD Locations
2. Insert the microSD card with contacts face-down into the top slot of CN602.
Note: CN602 is a dual-connector—the lower slot is for the micro-SIM, and the upper slot is for a microSD card.
Figure 3-10: microSD Insertion
3.4.1 Inserting/Removing an IoT Expansion Card
The mangOH Yellow includes one IoT Expansion Card slot.
Caution: Handle IoT Expansion Cards carefully to make sure components are not accidentally damaged. Hold them by their
edges to avoid possible ESD damage.
micro-SIM (CN602—bottom)
micro-SD (CN602—top)
Inserted in top slot of the tray
