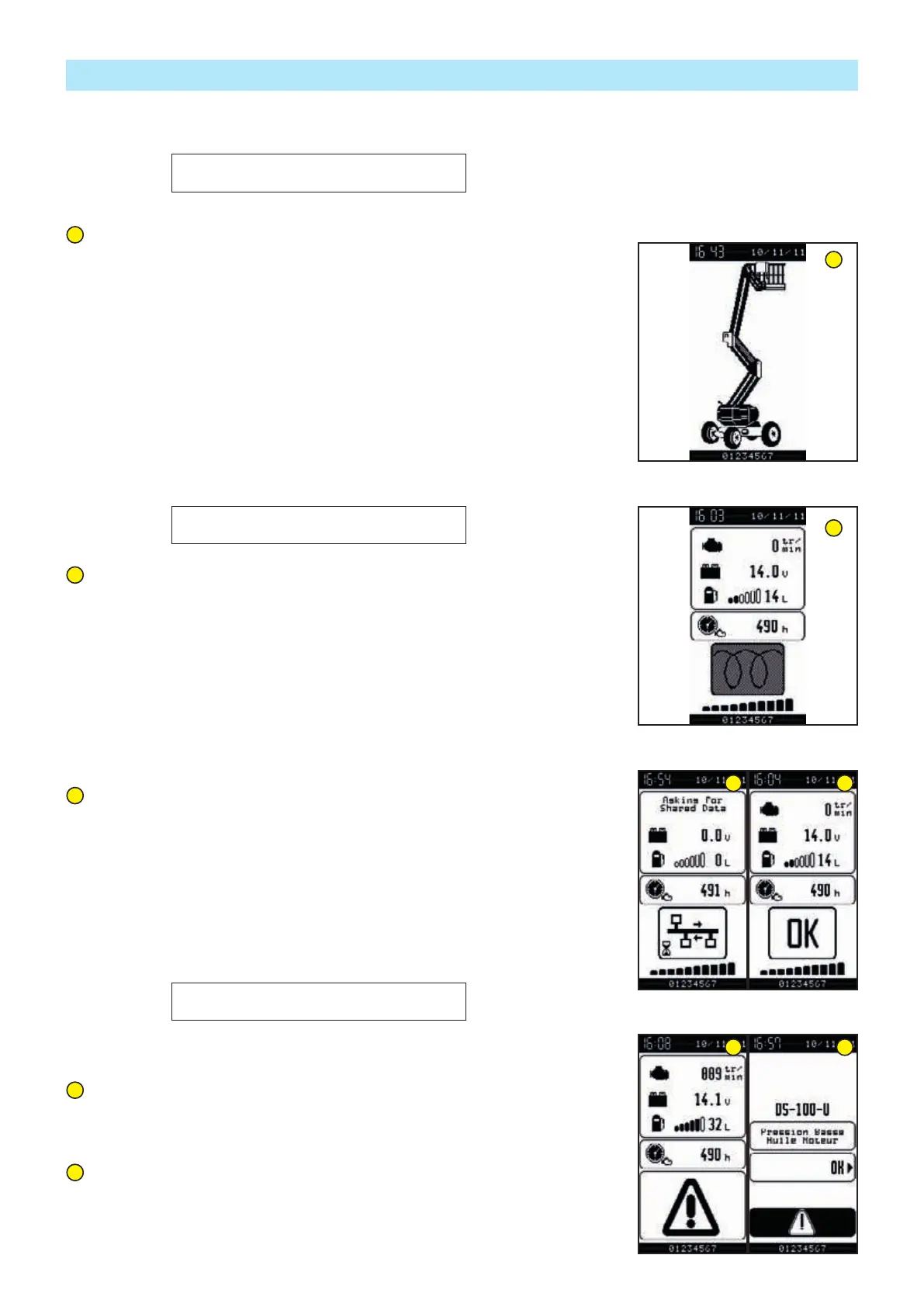

SCREEN DISPLAY - DESCRIPTION OF THE PAGES
1
PRESENTATION PAGE :
- When you switch on, an initialisation page appears briefly on the screen and then the
pre-heating page is displayed.
2
PREHEATING PAGES :
- The Pre-heating page is displayed for the whole of the adjustable pre-heating period
and the bar graph increases in increments in proportion to the pre-heating time
elapsed.
3
STARTUP PAGE :
- When the pre-heating time has expired (bar graph complete), ‘OK’ is displayed, followed
by the Work page or, where applicable, the Fault page.
A: Network search
B: Start-up OK
4
WORKING PAGE FROM THE BASE WITH FAULT PRESENT
5
WORKING PAGE FROM THE BASE WITH ENGINE OIL PRESSURE FAULT
PRESENT
1  PRESENTATION PAGE
2  PREHEATING PAGES
1
2
3  WORK PAGES
4
3A
5
3B
