Manitou MT 835 ST3B User Manual

3 - 40

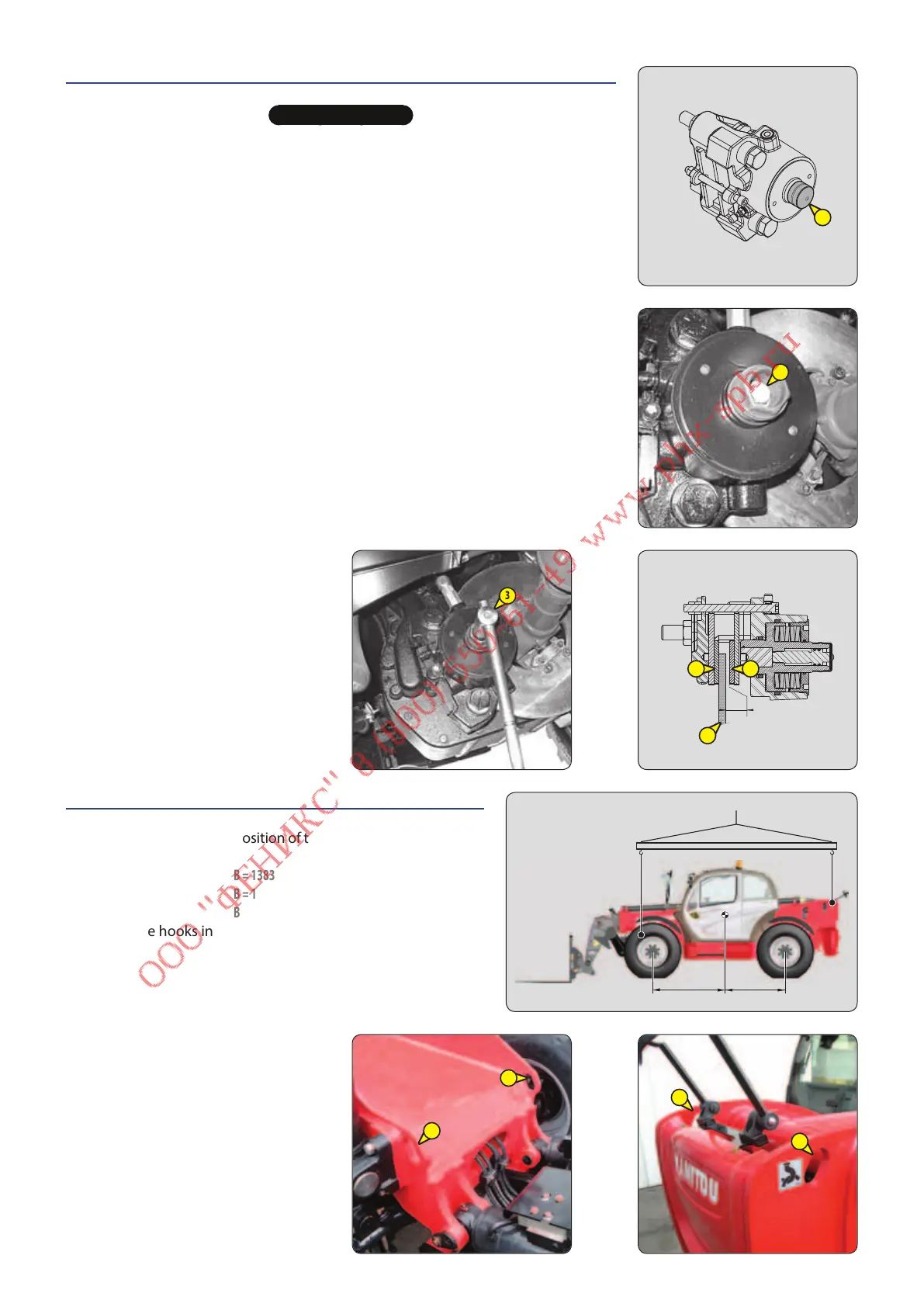

H7 – LIFT TRUCK
TOWING

IMPORTANT

Do not tow the lift truck at more than 6 km/h over a maximum distance of 5 km.
This is a dangerous manoeuvre
Carefully chock the lift truck before towing, as the parking brake system is inoperative.
For adjusting the parking brake, please contact your dealer.
- Place the forward/reverse selection lever and gear shift lever in neutral.
- Chock the lift truck.
- Remove the cap 1.
- Loosen screw 2 with a pin wrench 3 to release the brake disk. Leave a minimum
clearance of 5 mm between the disk 4 and the brake pads 5.
- Put the towing device into place.
- Remove the chocks.
- Switch on the warning lights.
NOTE: Since there will be no steering or braking assistance, operate these controls
slowly. Avoid sudden jerky movements.
H8 – LIFT TRUCK
SLINGING
- Take into account the position of the lift truck centre of gravity
for lifting.
A = 1497 mm B = 1383 mm MT 835 ST3B
A = 1431mm B = 1449 mm MT 1135 ST3B
A = 1491 mm B = 1389 mm MT 1335 ST3B
- Place the hooks in the fastening points 1 provided.
1
2
3
5 mm
5 5
4
1
1
1
1
BA
647104 (13/06/2016) MT 835 / 1135 / 1335 ST3B
