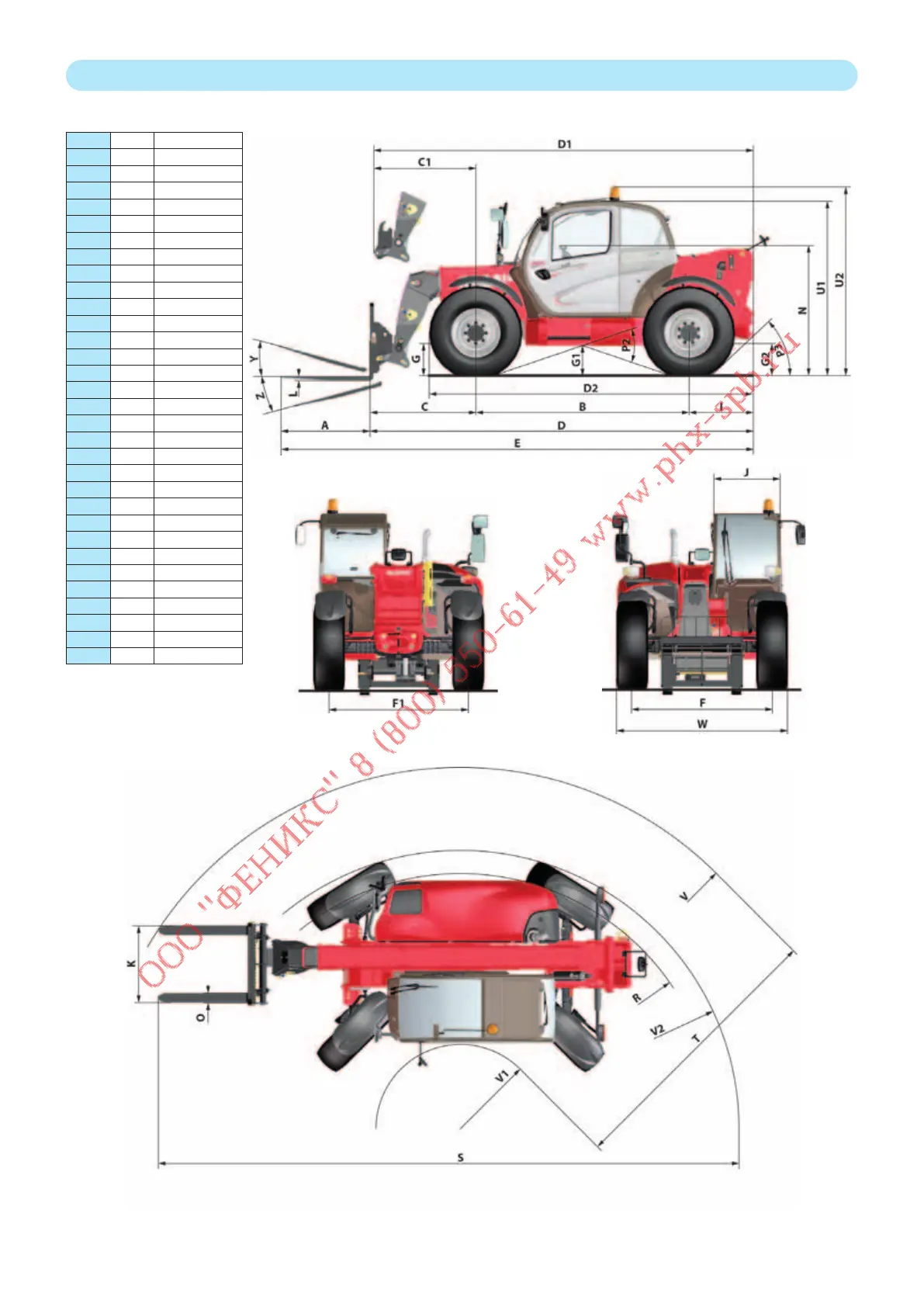

DIMENSIONS AND LOAD CHART MT 835 ST3B
A mm 1200
B
mm 2880
C
mm 1603
C1
mm 1375
D
mm 5348
D1
mm 5120
D2
mm 4203
E
mm 6548
F
mm 1846
F1
mm 1846
G
mm 445
G1
mm 415
G2
mm 445
I
mm 865
J
mm 884
K
mm 1040
L
mm 45
N
mm 1740 - 1803
O
mm 125
P2
° 38
P3
° 44
R
mm 3460
S
mm 7910
T
mm 3745
U1
mm 2419
U2
mm 2559
V
mm 4885
V1
mm 1140
V2
mm 3667
W
mm 2260
Y
° 12
Z
° 114
