Manitou MT 835 ST3B User Manual

4 - 6

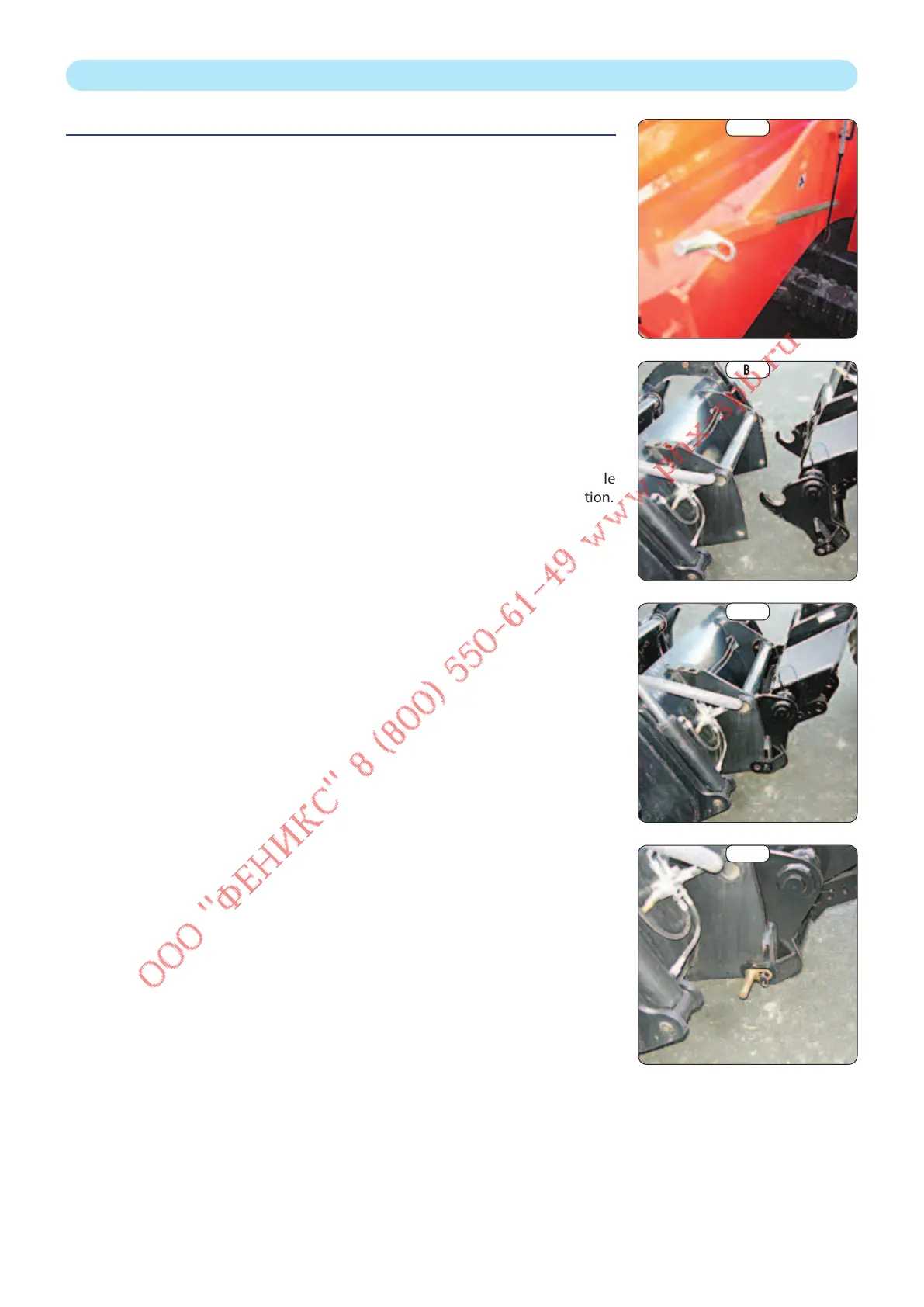

PICKING UP THE ATTACHMENTS
1 - ATTACHMENT WITHOUT HYDRAULICS AND HAND LOCKING DEVICE
TAKING UP AN ATTACHMENT
- Ensure that the attachment is in a position facilitating the locking to the carriage. If
it is not correctly oriented, take the necessary precautions in order to move it safely.
- Check that the locking pin and the clip are in position in the bracket (fig. A).
- Place the lift truck with the boom fully lowered in front of and parallel to the
attachment, tilt the carriage forwards (fig. B).
- Bring the carriage under the locking tube of the attachment, slightly lift the boom,
incline the carriage backwards in order to position the attachment (fig. C).
- Lift the attachment off the ground to facilitate locking.
HAND LOCKING
- Take the locking pin and the clip on the bracket (fig. A) and lock the attachment
(fig. D). Do not forget to refit the clip.
HAND RELEASING
- Proceed in the reverse order of paragraph HAND LOCKING while making sure you
put back the locking pin and the clip in the bracket (fig. A).
LAYING AN ATTACHMENT
- Proceed in the reverse order of paragraph TAKING UP AN ATTACHMENT while
making sure you place the attachment flat on the ground and in closed position.
A
B
C
D
647104 (13/06/2016) MT 835 / 1135 / 1335 ST3B
