2 - 59

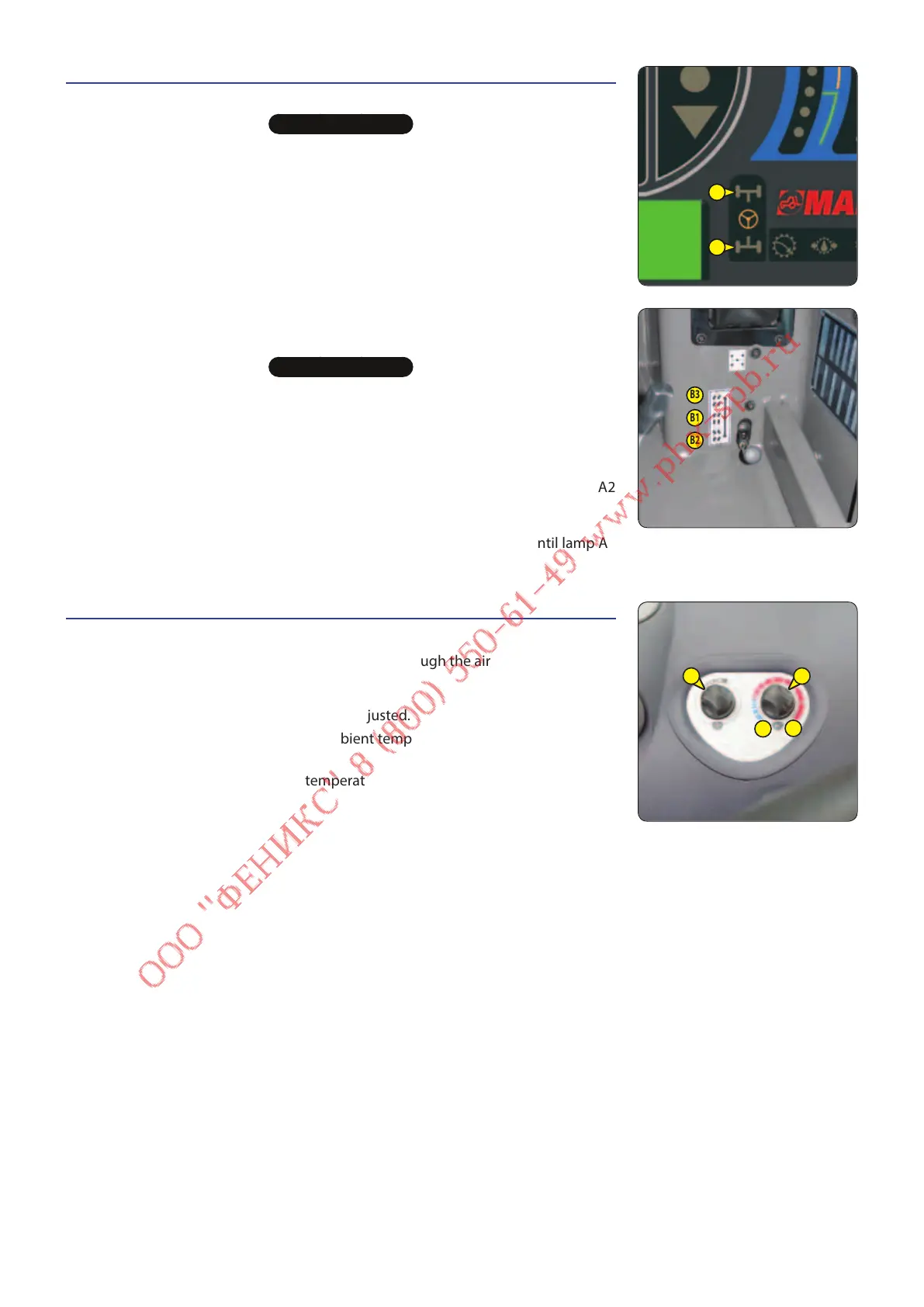

22 - STEERING SELECTION
A - GREEN WHEEL ALIGNMENT LAMPS
IMPORTANT
Before selecting one of the three possible steering positions, bring all 4 wheels into alignment
with regards to the lift truck axle.
Never change the steering mode whilst driving.
These lamps come on to indicate the alignment of the wheels in relation to the lift truck.
Lamp A1 for the front wheels and lamp A2 for the rear wheels.
B - STEERING SELECTION LEVER
• B1 - Front drive wheels (highway traffic).
• B2 - Front and rear drive wheels in opposite direction (short steering lock).
• B3 - Front and rear drive wheels in the same direction (crab steering).
CONTROL FOR ALIGNMENT OF THE WHEELS
IMPORTANT
Before driving on roads, it is necessary to check the alignment of the rear wheels and to drive in front wheel steer.
The control of the alignment of the rear wheels must be regularly done with the help of the green lamps,
while driving the lift truck.
In case of anomalies, consult your dealer.
- Shift the steering selection lever B into position B2 (short steering lock).
- Turn the steering wheel and bring the rear wheels into alignment until lamp A2
comes on.
- Shift the steering selection lever B into position B1 (highway traffic).
- Turn the steering wheel and bring the front wheels into alignment until lamp A1
lights up.
23 - HEATER CONTROL
A - FAN CONTROL
This 3-speed control allows the air to be ventilated through the air vents.
B - TEMPERATURE CONTROL
Allows the temperature inside the cab to be adjusted.
• B1 - The fan pumps in the air at ambient temperature.
• B2 - The fan pumps in warm air.
The intermediate positions allow the temperature to be adjusted.
A B
B1
B2
A1
A2
B3
B1
B2
647104 (13/06/2016)
MT 835 / 1135 / 1335 ST3B
