2 - 68

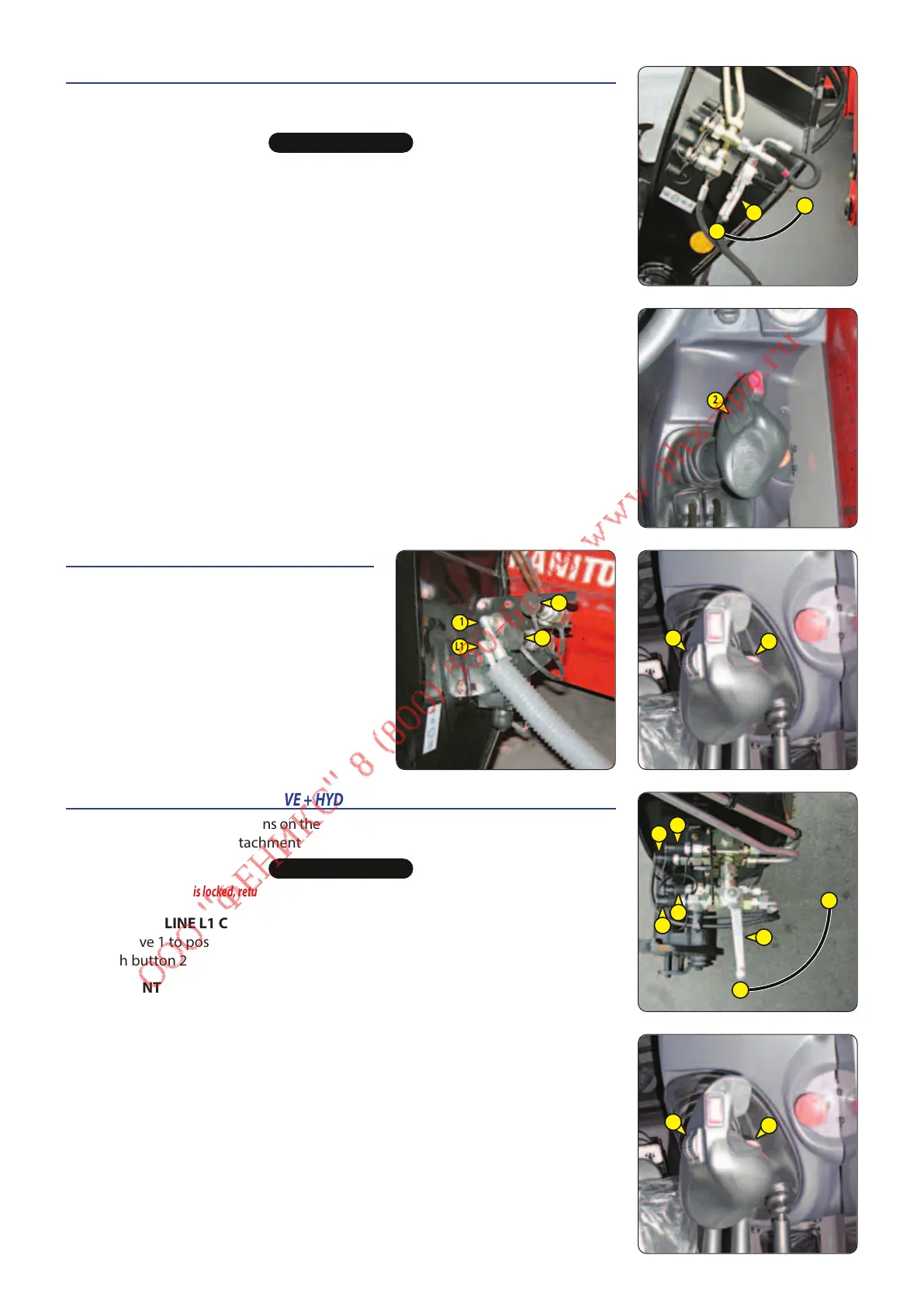

7 - ATTACHMENT HYDRAULIC LOCKING
Enables the attachment to be locked onto the carriage and a hydraulic attachment
to be used by the same hydraulic circuit.

IMPORTANT

Once the attachment is locked, return valve 1 to position A to prevent accidental release of the attachment.
ATTACHMENT LINE CONTROL
- Set valve 1 to position A.
- Push button 2 forward or backward.
ATTACHMENT LOCKING CONTROL
- Set valve 1 to position B.
- Push button 2 forward to lock the attachment and backward to release it.
8 - TELESCOPE HEAD ELECTROVALVE
Enables use of two hydraulic functions on the
attachment circuit.
ATTACHMENT LINE L1 CONTROL
- Push button 1 forward or backward.
ATTACHMENT LINE L2 CONTROL
- Hold down button 2 and push button 1
forwards or backwards.
9 - TELESCOPE HEAD ELECTROVALVE + HYDRAULIC ATTACHMENT LOCKING
The addition of these two options on the attachment line allows two hydraulic functions
to be used and locks the attachment onto the carriage.

IMPORTANT

Once the attachment is locked, return valve 1 to position A to prevent accidental release of the attachment.
ATTACHMENT LINE L1 CONTROL
- Set valve 1 to position A.
- Push button 2 forward or backward.
ATTACHMENT LINE L2 CONTROL
- Set valve 1 to position A.
- Hold down button 3 and push button 2 forwards or backwards.
ATTACHMENT LOCKING CONTROL
- Set valve 1 to position B.
- Hold down button 3 and push button 2 forward to lock the attachment and
backward to release it.
B
A
1
2
L1
L1
L2
L2
1
2
2
3
B
A
1
L2
L2
L1
L1
647104 (13/06/2016) MT 835 / 1135 / 1335 ST3B
