Manitowoc Published 07-23-15, Control # 078-03 4-29
31000 LUFFING JIB OPERATOR MANUAL SET-UP AND INSTALLATION
29

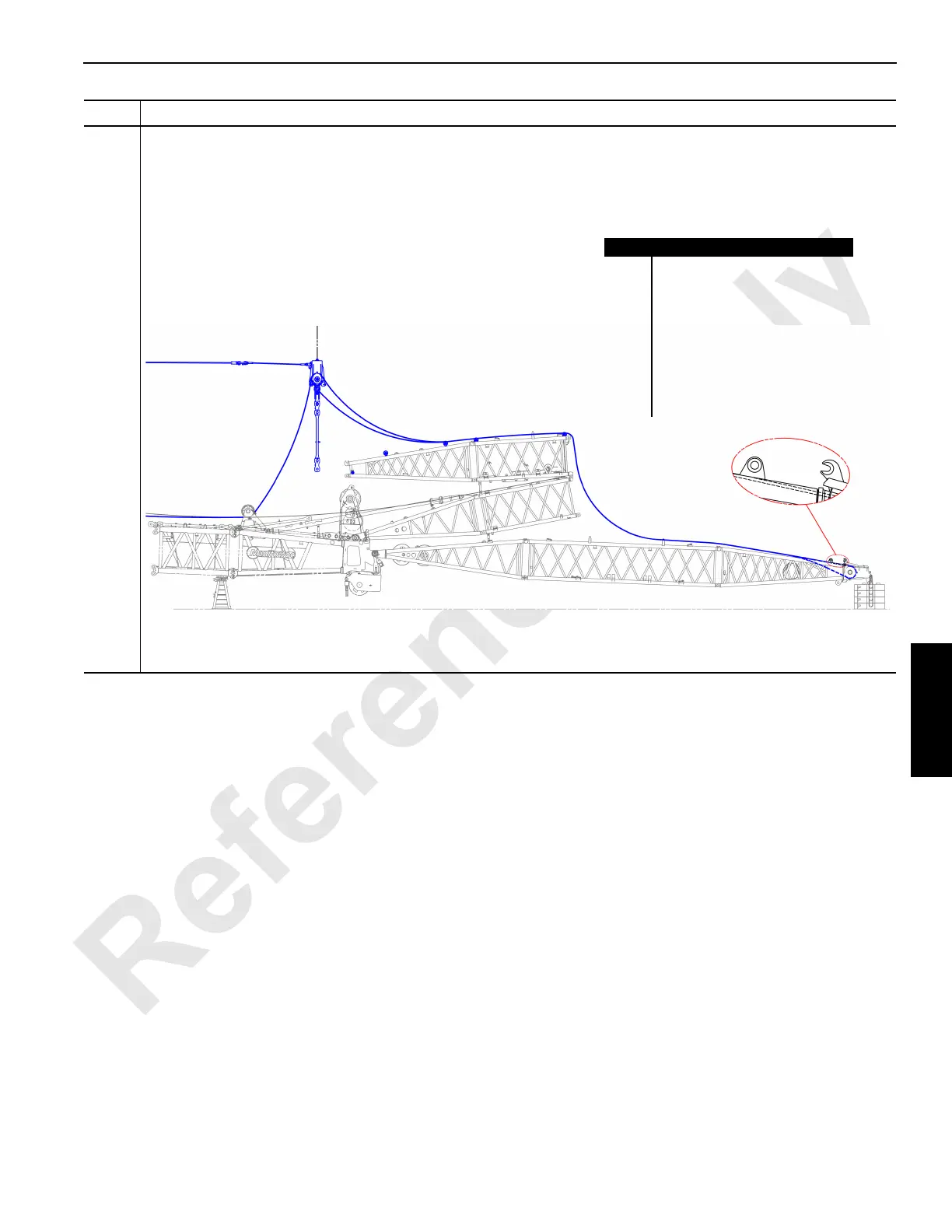

Information below from drawing A19443, Sheet 15:
Using an assist crane (A) and the Drum 1 or Drum 2 wire rope (C),
• Move the strut cap (B) over the main strut transition insert (D).
• Position the Drum 5 wire rope (E) on top of the main strut rollers (F).
Step Action
Item Description
A Assist crane.
B Strut cap.
C Drum 1 or Drum 2 wire rope.
D Main strut transition insert.
E Drum 5 wire rope.
F Main strut roller.
G Strut raising pendant.
H Rear strut cap pin.
I Front strut cap pin.
A
FIGURE 4-30
B
C
D
E
E
E
F
F
F
70 m (229.7 ft) boom length configuration shown.
G
F
F
H
I
