31000 LUFFING JIB OPERATOR MANUAL SET-UP AND INSTALLATION
4
7

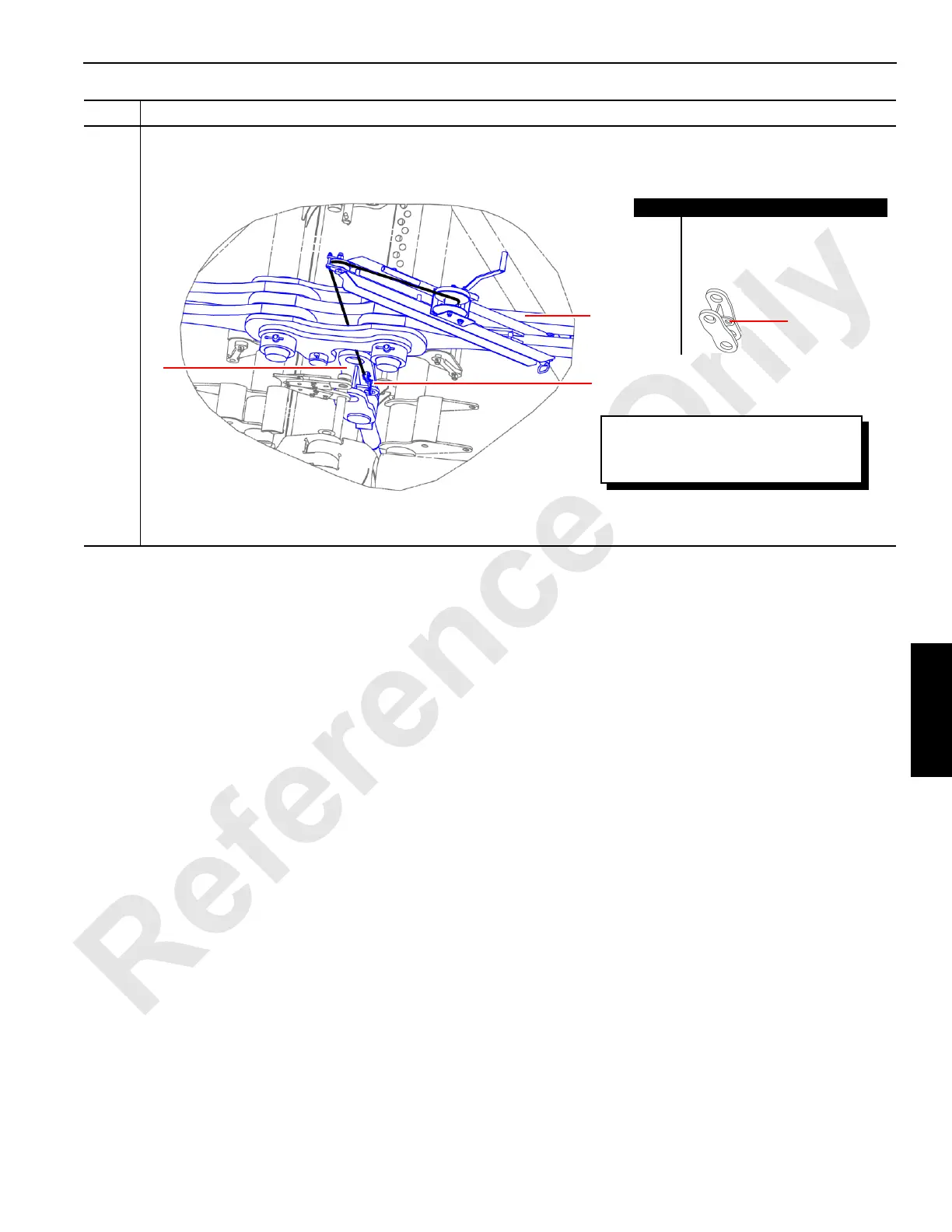

Information below from drawing A19443, Sheet 29:
Lower the strap rigging winch hook (B) between the strap links as shown below. Then connect the hook to the
lifting lug on the intermediate suspension top pendant link (C):
Step Action
FIGURE 4-75
Item Description
A Strap rigging winch.
B Strap rigging winch hook.
C Intermediate suspension top
pendant link.
Lifting lug
A
C
B
Three wraps of wire rope shall be left
on the strap rigging winch so that the
rope does not come off.
