SET-UP AND INSTALLATION 31000 LUFFING JIB OPERATOR MANUAL
4-70 Published 07-23-15, Control # 078-03
8

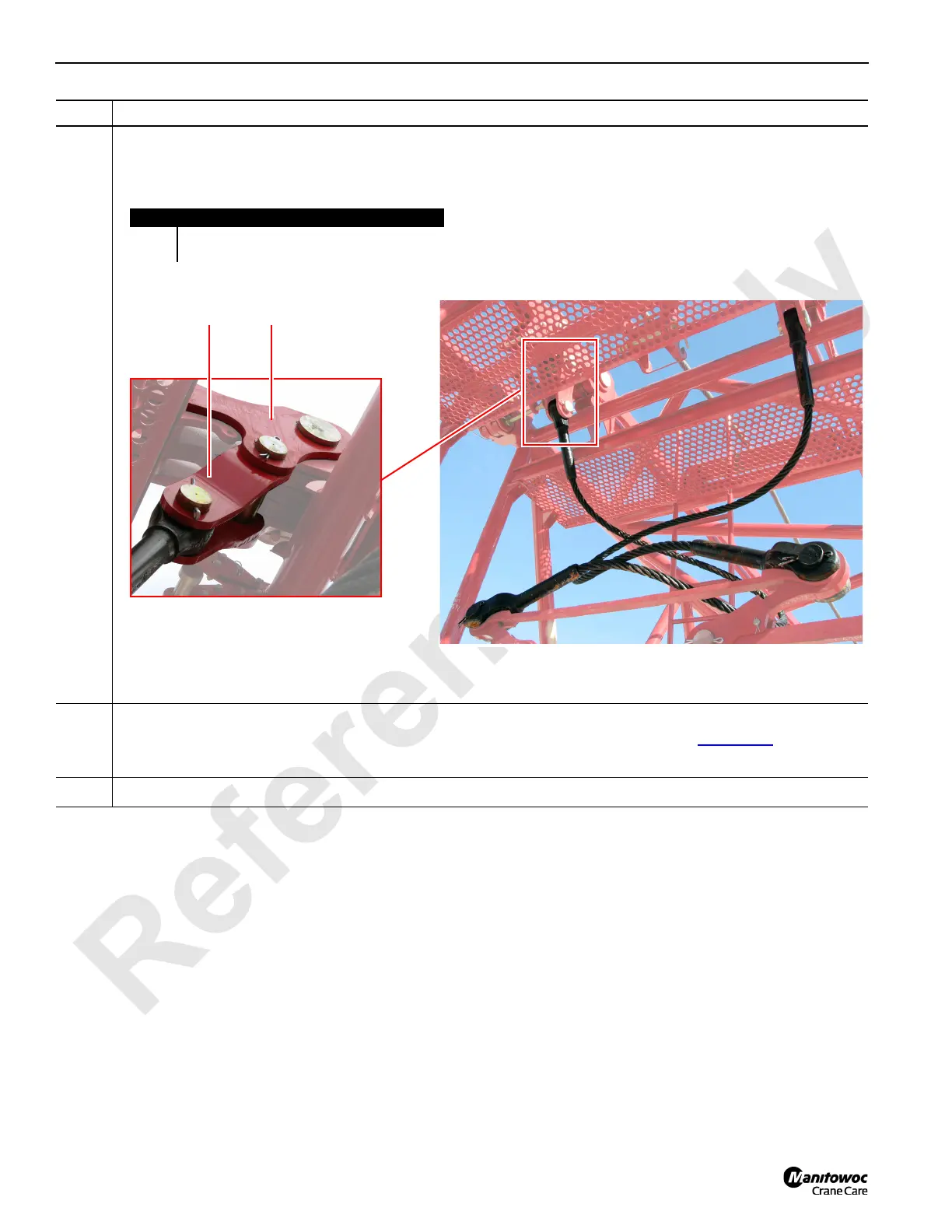

Information below from drawing A19443, Sheet 29:
Use the strap rigging winch to raise the intermediate suspension top pendant link (A) until the link can be pinned to
the intermediate suspension top link (B).
9
Move the strap rigging winch over the other insert strap links. Repeat the procedure from Figure 4-73.
10
This completes the intermediate suspension installation procedure.
Step Action
FIGURE 4-76
Item Description
A Intermediate suspension top pendant link.
B Intermediate suspension top link.
A B
