5540F/YB5515 SERVICE MANUAL STRUCTURALS
11
7. Remove the spacer (Figure 11-39) from the brake
housing. With a hook (Figure 11-40) or pry bar, remove
the seal.
8. .Examine the bushing (Figure 11-41) in the brake
housing for wear and if found replace it.
Examine the journal for wear on the brake housing
(Figure 11-42) where the seal runs. If severely worn, replace
the brake housing.

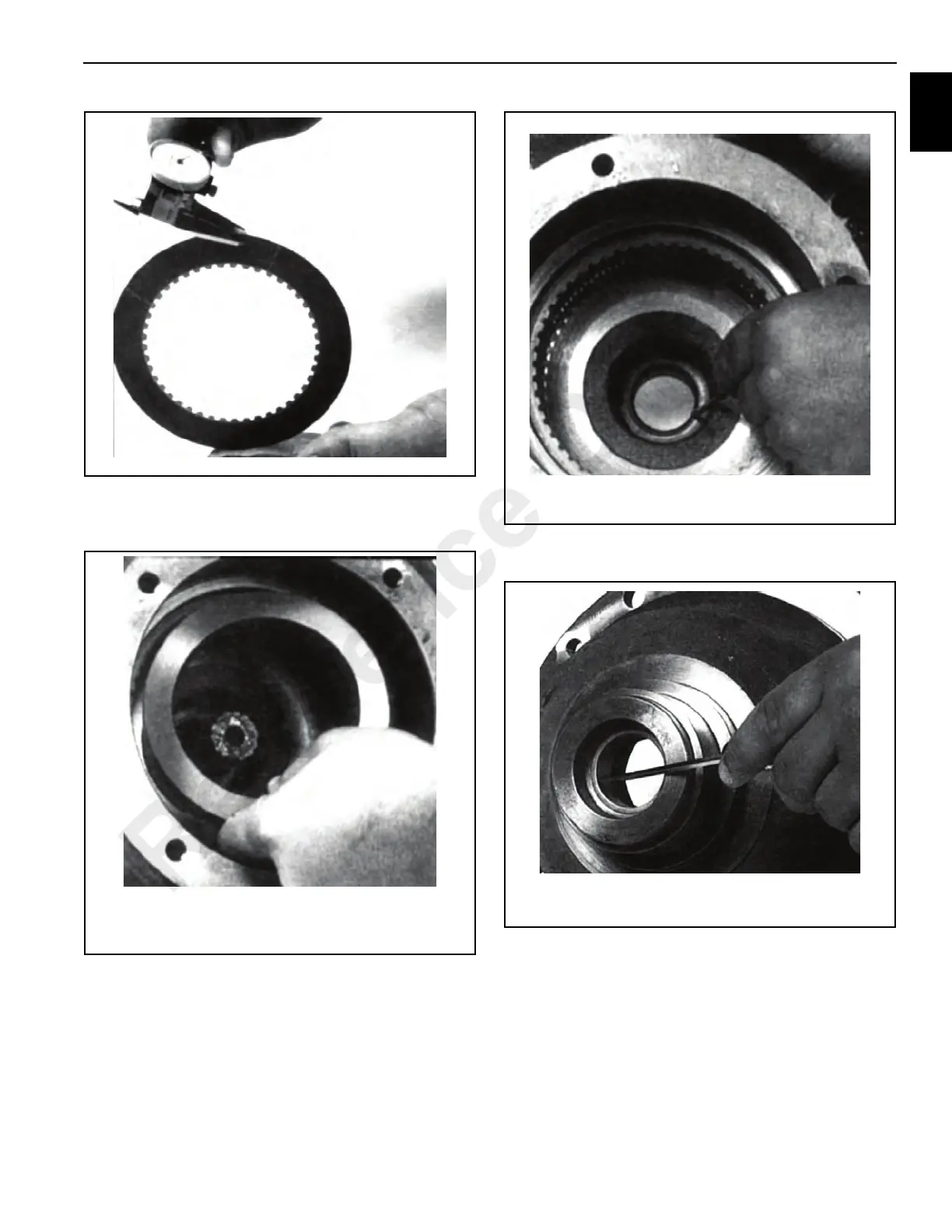

FIGURE 11-38
p0203
FIGURE 11-39
p0205
FIGURE 11-40
p0206
FIGURE 11-41
p0207
