shims (317) and wear pads (304, 305) from bottom of
tele 2 (301) (see Figure 4-19).
29. Remove bolts (327) securing top and side wear pads
(326, 356) and shims (324, 325) to tele 2 (301) (see
Figure 4-20).
30. Install pins (213) and large heavy washers (J) to left and
right sides of the bottom lug holes of telescope cylinder
#2 (501) (see Figure 4-21). Using an adequate crane
and chains, slightly lift telescope cylinder #2 by its lugs
(see Figure 4-101).
31. Remove grease hose (303) and fittings (329, 330,331)
from rear of tele 2 (301) (left and right sides) (see
Figure 4-22).

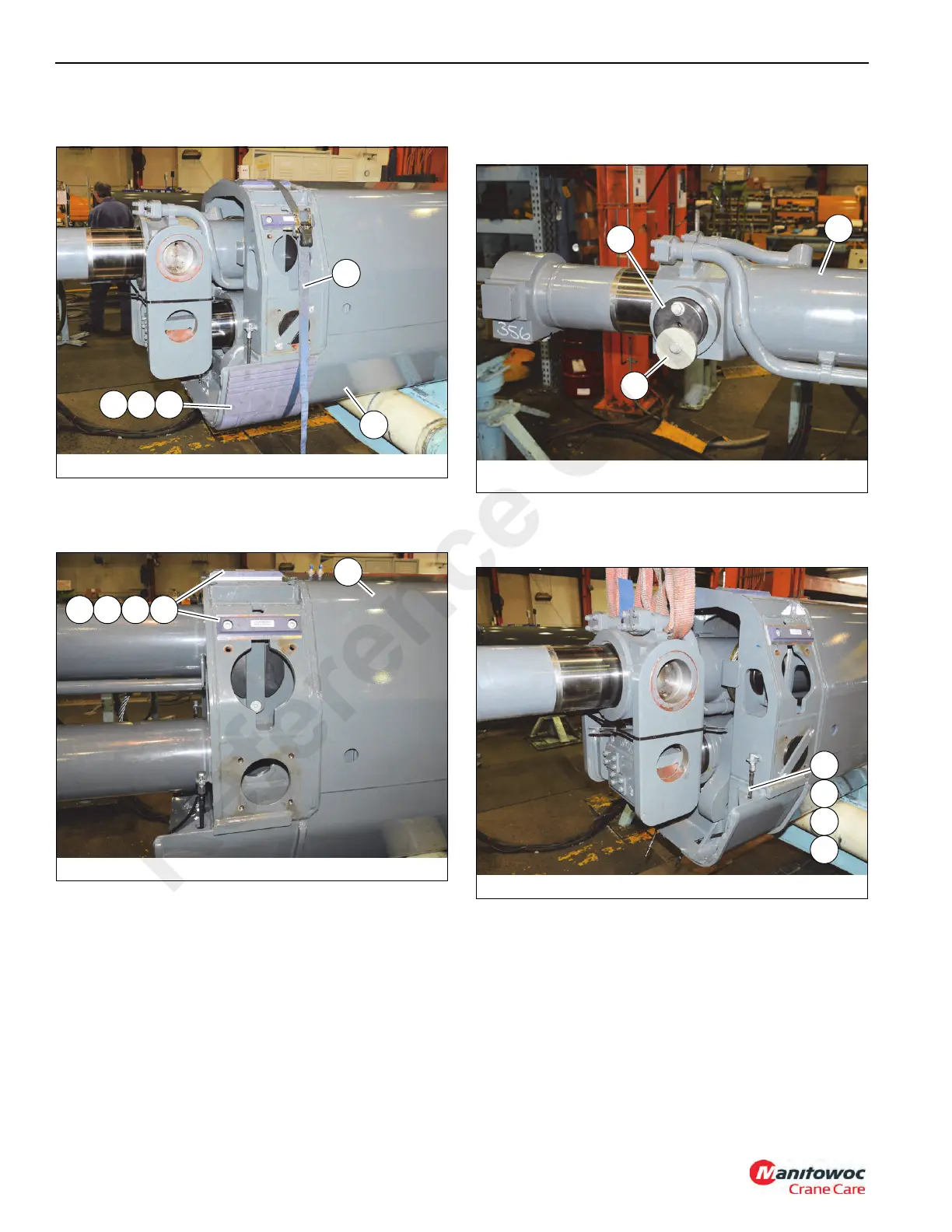

FIGURE 4-19
9044-57
305304
N
317
301
FIGURE 4-20
9044-51
301
325326 324356
FIGURE 4-21
9044-46
J
501
213
FIGURE 4-22
9044-56
330
331
329
303
